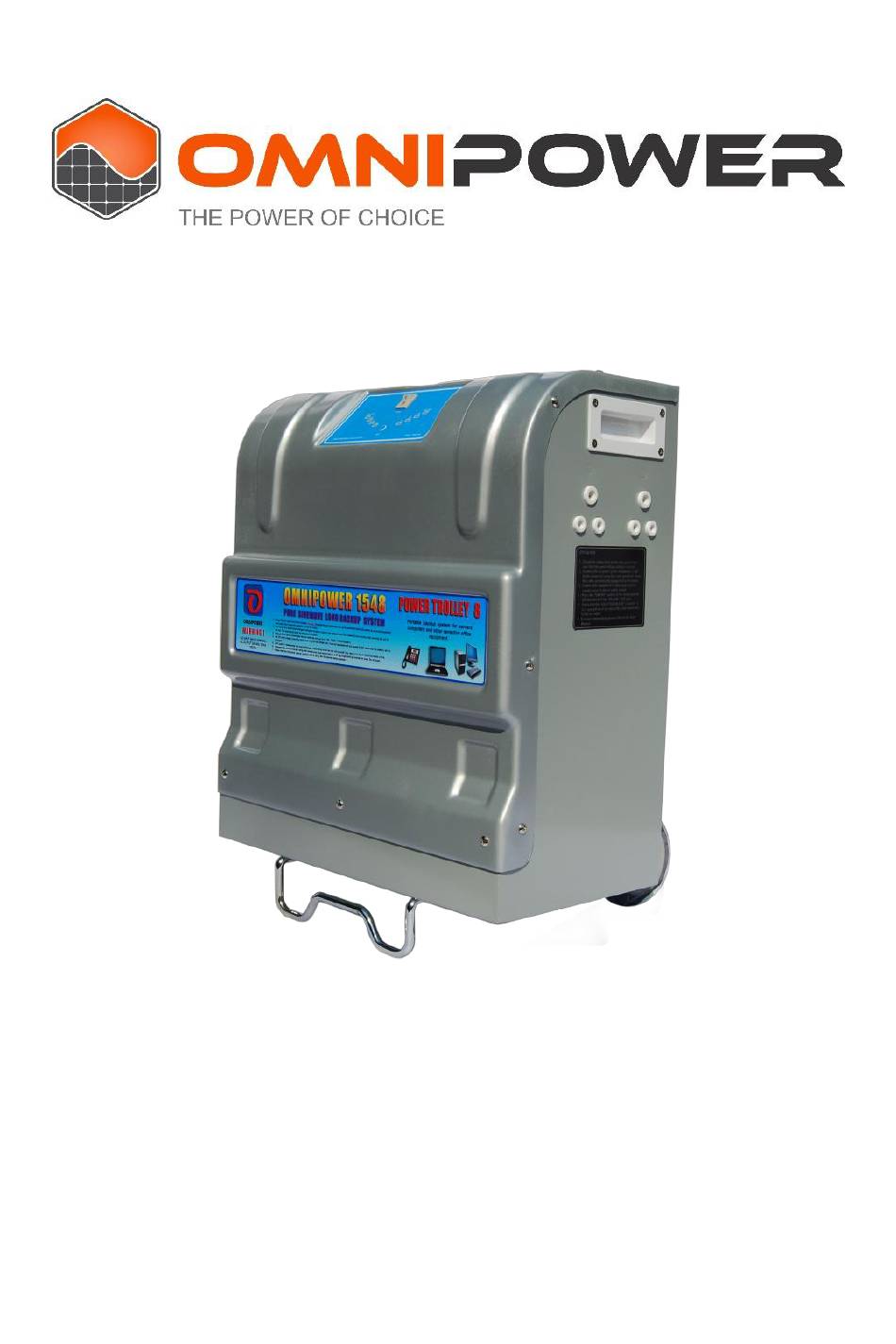

- Page 1 POWER TROLLEY 8 INSTRUCTION MANUAL POWER TROLLEY 8 Model: SINE 1548 Instruction Manual for: Self-Contained Sinewave Mobile Power Backup System Version 07...
-
Page 2: Table Of Contents
2. USING THE POWER TROLLEY……………………......... 2 3. BATTERY BACKUP TIME LOAD FACTOR ..........3 4a. INPUT AND OUTPUT CONNECTION ............ 4 4b. CONNECTING TO THE POWER TROLLEY 8 ........5 5. FRONT PANEL INDICATORS EXPLAINED ..........6 6. INTERFACING WITH THE POWER TROLLEY ........7 7. -
Page 3: Introduction
POWER TROLLEY 8 INSTRUCTION MANUAL 1. INTRODUCTION Thank you for purchasing a “Power Trolley 8” Your Power Trolley is a versatile unit specifically designed to provide power when normal Utility power fails. It can provide quick-acting emergency power for many situations where either power has failed or when a ready source of portable mains power is needed for small businesses, service professionals and home use for powering TV’s, DSTV Decoders, M-Net Decoders, Lights,... -
Page 4: Using The Power Trolley
POWER TROLLEY 8 INSTRUCTION MANUAL 2. USING THE POWER TROLLEY Moving the unit to where you want to use it is easy. It comes with a retractable handle exactly the same as you have on your “carry-on” airline suitcase. Push the button on the handle, lift and fully extend the handle. -
Page 5: Battery Backup Time Load Factor
POWER TROLLEY 8 INSTRUCTION MANUAL 3. FOR HOW LONG WILL YOU GET POWER BACKUP? The Power Trolley 8 comes with internal batteries fitted. The power available is load dependant. Depending on what is plugged into the unit, up to 7 hours’ backup is possible with the ‘built-in’ battery with a... -
Page 6: 4A. Input And Output Connection
POWER TROLLEY 8 INSTRUCTION MANUAL 4a. INPUT AND OUTPUT CONNECTION Connecting the Power Trolley to the AC Input Connecting the Power Trolley to computer equipment... -
Page 7: 4B. Connecting To The Power Trolley 8
POWER TROLLEY 8 INSTRUCTION MANUAL 4b. CONNECTING TO THE POWER TROLLEY Supplied with the Power Trolley is a 2,5m 3-pin 15A cable with a 3pin ‘kettle connector’. This cable is for the built-in battery charger in the Power Trolley and supplying mains while on standby. -
Page 8: Front Panel Indicators Explained
POWER TROLLEY 8 INSTRUCTION MANUAL 5. FRONT PANEL CONTROLS & DISPLAY Power ON/OFF switch. Operates the Power Trolley On/Off Unit ‘beeps’ continually if LED is lit Overload fault indicator Load indicator 100% LED is lit when max power is drawn... -
Page 9: Interfacing With The Power Trolley
POWER TROLLEY 8 INSTRUCTION MANUAL 6. RS232 INTERFACING WITH THE POWER TROLLEY The Power Trolley 8 provides communications signals such as Power Failure, Low Battery and External Shutdown via an RS232 DB9 cable connection to the user’s computer. The communication protocol is:... -
Page 10: Generator Use
POWER TROLLEY 8 INSTRUCTION MANUAL 7. GENERATOR USE If the “Power Trolley 8” is powered via a small, good quality generator, a Genset of at least 2.5 - 3 KVA should be used. The Genset must have either a mechanical or electronic governor / regulator installed. -
Page 11: Overload Reset
9. OVERLOAD RESET You’ll see a ‘resettable’ circuit breaker on the side of the Power Trolley 8. This is an additional safety device which will trip if you substantially overload the unit. Disconnect the equipment you’ve connected to the AC connection sockets, reset the breaker and try connecting with less equipment connected to the unit. -
Page 12: Technical Specifications
POWER TROLLEY 8 INSTRUCTION MANUAL 10. TECHNICAL SPECIFICATIONS MODEL SINE 1548 Inverter: Output Power Continuous 1500VA / 1000W Max Surge Power 2000W Output wave form Pure Sinewave Maximum Output Current < 6.5 Amps AC Input Voltage 230VAC / 50Hz AC Output Voltage when in AC... - Page 13 POWER TROLLEY 8 INSTRUCTION MANUAL 10. TECHNICAL SPECIFICATIONS (continued) Battery Charger: Automatic High Frequency PWM 48V / 5A Switch Mode Battery Charger 230VAC / 50Hz ( 180V – 265V) AC Input ( AC Input Range ) Charge Voltage Nominal 54V±0.5V...
-
Page 14: Warranty
Power Trolley 8 from incorrect connection and overload when connected to external devices. No claims will be considered if the Power Trolley was opened by unauthorised personal and where the Power Trolley 8 is used for applications outside the functional specifications for which it is intended. Severability...
