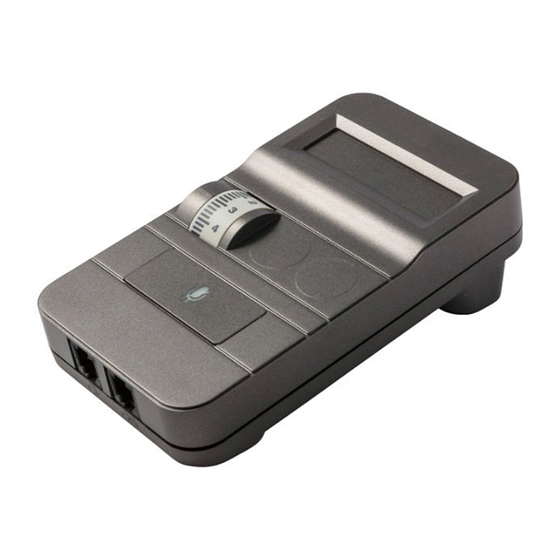

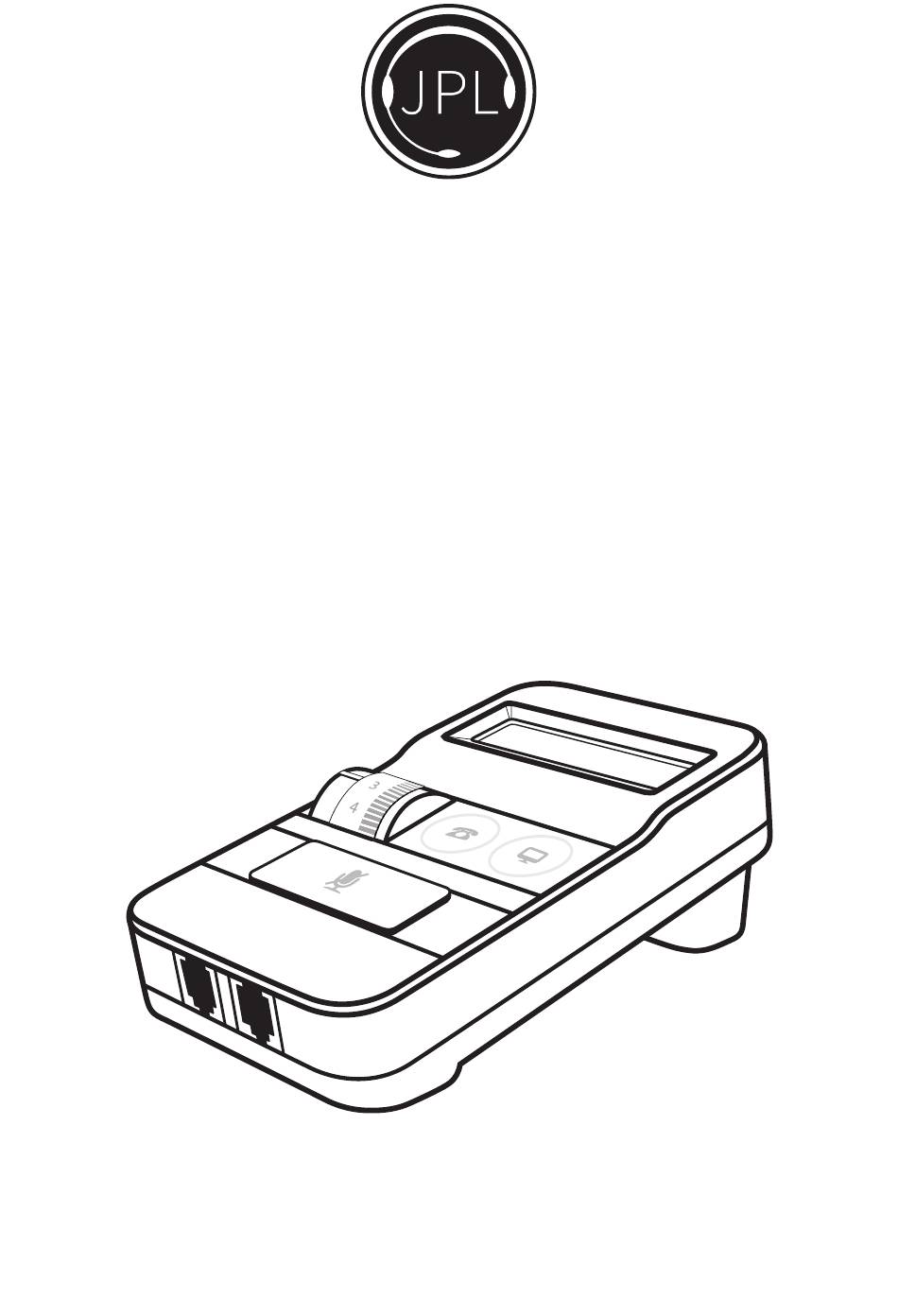

- Page 1 JPL Companion Lite Digital Amplifier Digital Amplifier and Headset Training Adapter USER MANUAL...
- Page 2 1. Product Overview Telephone Cable USB Cable Speaker Volume Control TEL Button Mute Button PC Button Headset Port Additional Headset (Supervisor port) *BL-01+P QD Bottom Lead (connects to headset) *To be purchased separately...
- Page 3 Headset Compatibility Switch U : Universal P : Plantronics Microphone Volume Telephone Compatibility Switch Headset / Handset Switch Mini USB Port Handset Port Telephone Port TONE MUTE Tone Control (Treble / Bass) Microphone Mute (Supervisor) Automatic Level Control Switch (ALC)
- Page 4 Connection to a PC is necessary to power the JPL Companion Lite. Plug the mini USB cable into the mini USB port on the JPL Companion Lite, and connect the other end of the USB cable into the USB port on your PC.
- Page 5 TEL Button PC Button 4.2 If you are using the JPL Companion Lite with a deskphone then you may need to adjust the telephone compatibility switch to position ‘1’ or ‘2’ until a dial tone can be heard on the headset.
- Page 6 JPL Companion Lite. Microphone Volume Control 4.4 Adjust the speaker volume on the JPL Companion Lite by rolling the Speaker Volume Control. 4.5 Press the Mute button to mute the headset microphone. The Mute indicator will be ON. To un-mute the headset microphone, press...
- Page 7 5. Connect an additional Headset An additional headset can be connected to the supervisor port on the unit. It has the same function as the default headset. Microphone mute switch for supervisor is located on the base of the unit. Additional Headset (Supervisor port) *BL-01+P QD Bottom Lead...
- Page 8 It is guaranteed against faulty workmanship and materials for a period of 24 months from the date of purchase. In the unlikely event that a failure should occur, please contact the JPL Telecom dealer from which you purchased this product or visit www.jpltele.com and follow our product returns procedure. You will be given a RMA number and instructions on how to return your headset.
