Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear eye
Instructions
protection
1.
SAFETY
s
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations
are adhered to when using this equipment.
WARNING! DO NOT attempt to dismantle the strut under any circumstances until the
spring compressors are in place and the spring has been sufficiently compressed.
Familiarise yourself with the applications, limitations and potential hazards of this spring
compressor set.
Maintain the spring compressor set in good condition. Replace or repair damaged parts. Use
genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
Keep the work area clean, uncluttered and ensure there is adequate lighting.
WARNING! Wear approved safety eye protection (standard spectacles are not adequate).
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Remove ill fitting clothes. Remove ties, watches, rings and other loose jewellery. Contain or tie
back long hair.
Wear appropriate protective clothing.
Keep children and unauthorised persons away from the working area.
Ensure jaws are correctly engaged on spring before commencing compression.
Ensure the jaws and the body of the compressor are correctly aligned at all times during
spring compression.
DANGER! Stop compressing the spring before it becomes coil bound.
DO NOT leave compressed spring unattended.
DO NOT operate spring compressor set if parts are damaged or missing as this may cause failure and/or personal injury.
DO NOT use the spring compressor set for a task it was not designed to perform.
DO NOT allow untrained persons to use the spring compressor set.
DO NOT operate spring compressor set if you are tired, or under the influence of alcohol, drugs or intoxicating medication.
WARNING! DO NOT use air tools with this product.
WARNING! DO NOT compress the spring to an extent where the coil windings touch.
WARNING! DO NOT compress the spring to an extent where the jaws touch.
When not in use clean and store the spring compressor set in a safe, dry, childproof location.
IMPORTANT: These instructions are provided as a guide only. Always refer to the vehicle manufacturer's service instructions, or a
proprietary manual, to establish the current procedure and data.
WARNING! The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions
and situations that may occur. It must be understood that common sense and caution are factors which cannot be built into
this product, but must be applied by the operator.
2.
INTRODUCTION
s
Heavy-duty coil spring compressor with hardened steel body and force screw. Ensures smooth compression of spring.
3.
SPECIFICATION
s
Model No:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AK3845.V2
Drive: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17mm Hex
Maximum Jaw Opening:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280mm
Capacity Pair:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1400kg
© Jack Sealey Limited

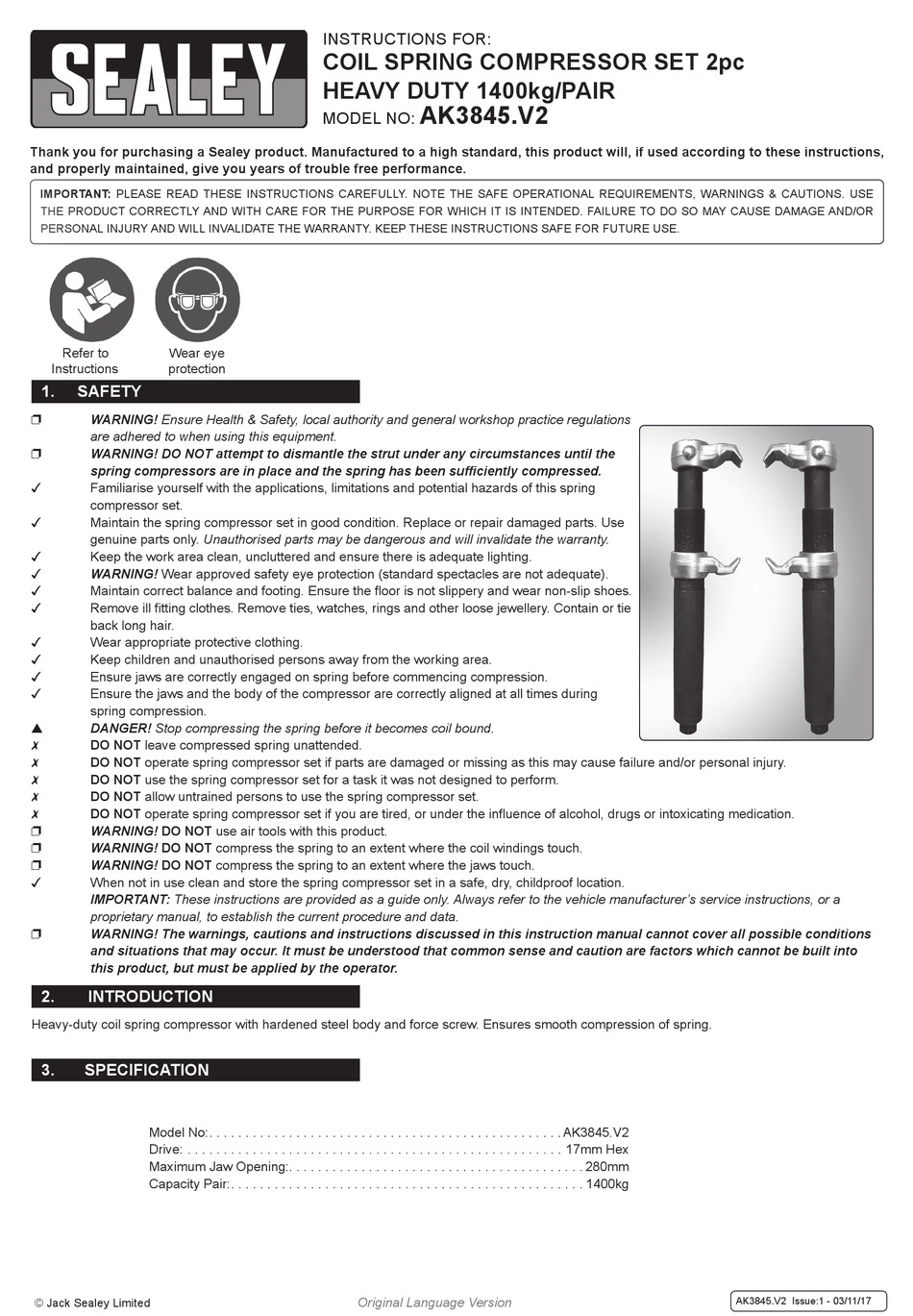

INSTRUCTIONS FOR:
COIL SPRING COMPRESSOR SET 2pc
HEAVY DUTY 1400kg/PAIR
AK3845.V2
MODEL NO:
Original Language Version
AK3845.V2 Issue:1 - 03/11/17
