Summary of Contents for powersoft WM Touch

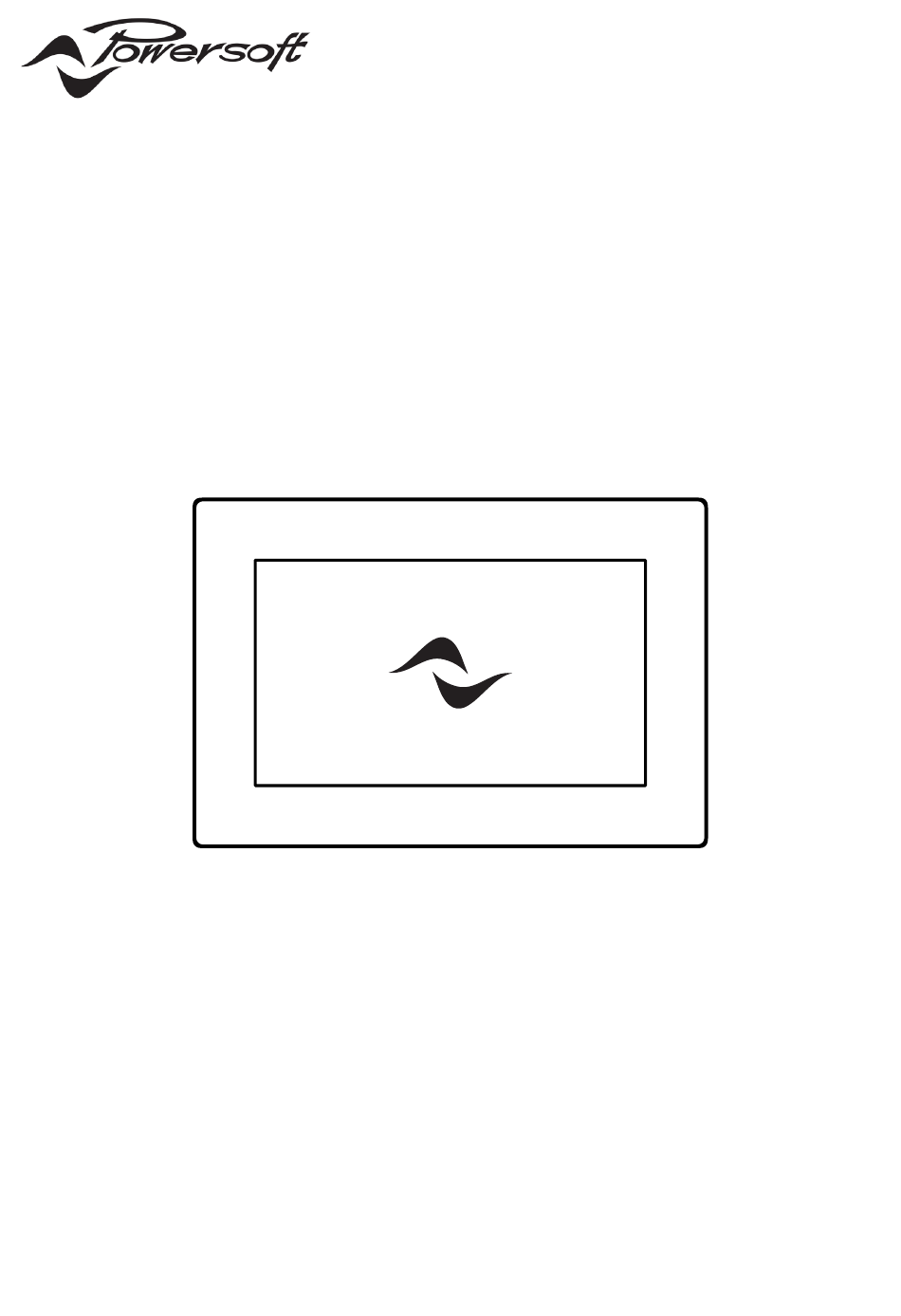

- Page 1 USER GUIDE WM Touch ©2021 Powersoft Keep this manual DO000XXX R0 for future reference...
- Page 2 PC web browser (Web Views). In other words, with the appropriate configura- tion, whenever a WM Touch is present in the network, users are also able to control the system via the app or web browsers.
- Page 3 A PoE injector or PoE switch is necessary for powering the WM Touch and a regular Cat5 cable (or above) can be used for connection. The WM Touch must always be in the same network that is connected to the control ether- net ports of the amplifiers, as indicated below.
-
Page 4: Software Configuration
Alternatively, online panels already connected and available in the network can be dragged and dropped to the Workspace from the Discovery bar (Design > Match). Once a WM Touch is in the Workspace, under the Design > Control, select one or more panels and proceed with the configuration from the ribbon menu. -
Page 5: Local Configuration
Local Configuration Language and Screen Orientation The start-up screen of the WM Touch allows the configuration of the screen orientation mode and the interface language. Identify The start-up screen also displays an ‘Identify’ button. When pressing this button, the matching device will be highlighted in ArmoníaPlus, under the Discovery bar... -
Page 6: Multi-Zone Operation
Operation The WM Touch will automatically adapt to the different user configurations selected, including different screen orientation modes. Additionally, the layout will change depending on how many zones the screen has been config- ured to control. Single Zone Operation When the WM Touch has been configured to control... - Page 7 ‘More’ icon in the ribbon menu (A). A new window will be opened from where the system can be turned on/ off by pressing the dedicated button (B), holding it until loading is full, and releasing. WM Touch | 7...
-
Page 8: Troubleshooting
Touch. Follow the procedure below to recover the device. 1. From a computer connected to the same network of the WM Touch, type in the IP address of the device in any web browser, followed by /recovery. This will open the WM Touch Recovery page from where the firmware can be updated (see below). - Page 9 WM Touch | 9...
- Page 10 DRIVING HUMAN AUDIO EXPERIENCE POWERSOFT S.P.A. Via E. Conti, 5 - Scandicci (FI) 50018 - Italy support@powersoft.com +39 055 73 50 230 +39 055 73 56 235 POWERSOFT.COM...
