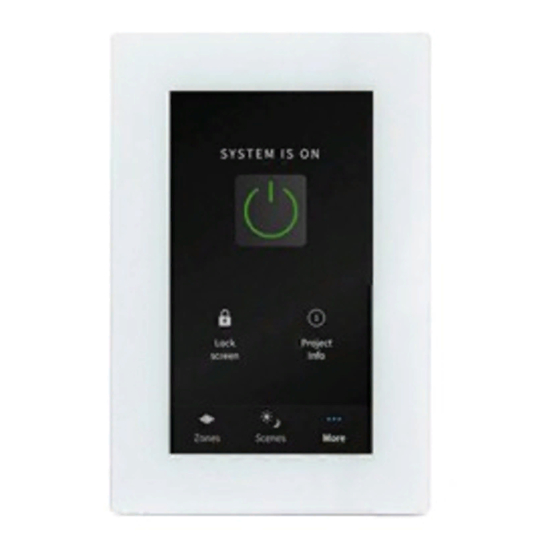

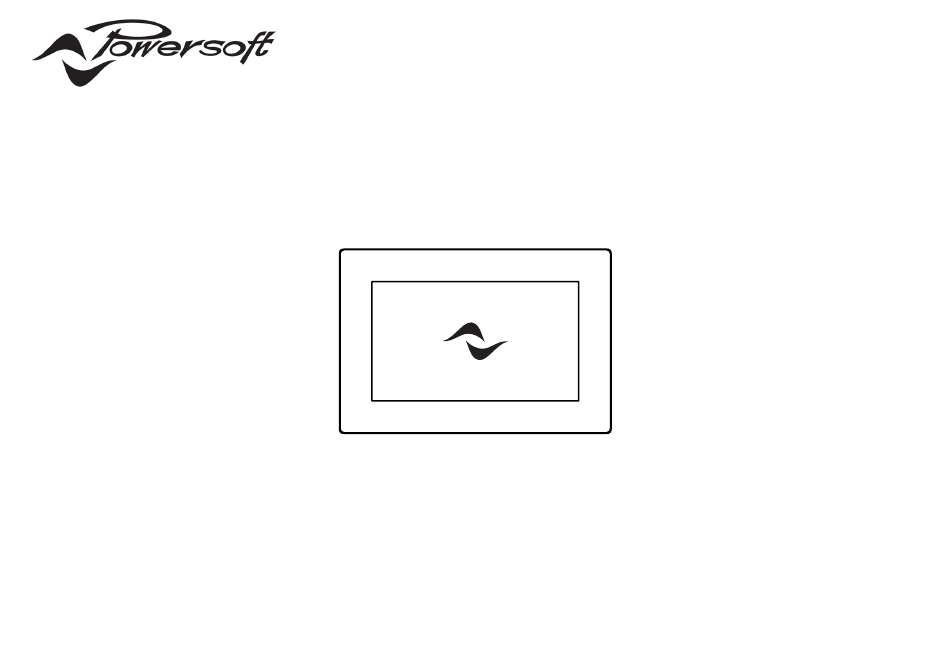

- Page 1 WM Touch INSTALLATION GUIDE ©2021 Powersoft Keep this manual DO000276.00 R02 for future reference...
- Page 3 EXTRAORDINARY MAINTENANCE. IT IS ABSOLUTELY NECESSARY TO VERIFY THESE FUNDAMENTAL REQUIREMENTS This product enables the control of audio system features when used in OF SAFETY AND, IN CASE OF DOUBT, REQUIRE AN ACCURATE CHECK BY combination with Powersoft amplifiers. QUALIFIED PERSONNEL.
-
Page 4: Regulatory Information
Directive) aims to minimise the impact of electrical and electronic generates, uses, and can radiate radio frequency energy and, if not goods on the environment. Powersoft S.p.A. comply with the installed and used in accordance with the instruction manual, may Directive 2002/96/EC and 2003/108/EC of the European Parliament cause harmful interference to radio communications. -
Page 5: Support And Warranty
This Powersoft product contains no user-serviceable parts. All warranty repairs must be carried by a certified technician operating in a Powersoft Authorized service center. To learn more about warranty terms and conditions, visit powersoft.com/warranty. To request service for a product, visit powersoft.com/en/product-repair. -
Page 6: Installation
PoE switch is necessary for powering the WM Touch and a regular Cat5 cable (or above) can be used for connection. The WM Touch must always be in the same network that is connected to the control ethernet ports of the amplifiers, as indicated in the ‘Connections’... -
Page 7: Software Configuration
• Edit the device name & IP address. For more details on Software and Local Configuration, scan the following QR code. You will be redirected to the WM Touch product • Change the screen lock display logo. page, where you can find the User Guide and an in-depth video •... -
Page 8: Wall-Box Installation
Wall-Box Installation Portrait Mode Landscape Mode Do not install too close to any wall or object that may inhibit the removal of the WM Touch from the metal plate. CLACK! CLACK! CLACK! CLACK! CLACK! - Page 9 Removal CLACK! CLACK! CLACK! CLACK!
- Page 10 Connections Injector* Duecanali Quattrocanali Injector* Ottocanali Injector* STATUS SWITCHED STATUS SWITCHED STATUS SWITCHED NETWORK NETWORK NETWORK SIGNAL 100V SIGNAL 100V SIGNAL 100V CTRL + CTRL + CTRL + CTRL + CTRL + CTRL + CTRL CTRL CTRL 2 IN 1 2 IN 1 2 IN 1 Mezzo...
-
Page 11: Specifications
Specifications Dimensions L: 127.4 mm x H: 86.4mm x D:14.4 mm LCD Screen 4.3 inch Aspect Ratio 16:9 (W:H) Mounting Option Wall mount Orientation Landscape or portrait Brightness 300 nits Power Supply (not included) PoE Injector or PoE Switch Weight 160 g Operating Temperature 0°C to 45 °C... - Page 12 DRIVING HUMAN AUDIO EXPERIENCE POWERSOFT S.P.A. Via E. Conti, 5 - Scandicci (FI) 50018 - Italy support@powersoft.com +39 055 73 50 230 +39 055 73 56 235 POWERSOFT.COM...
