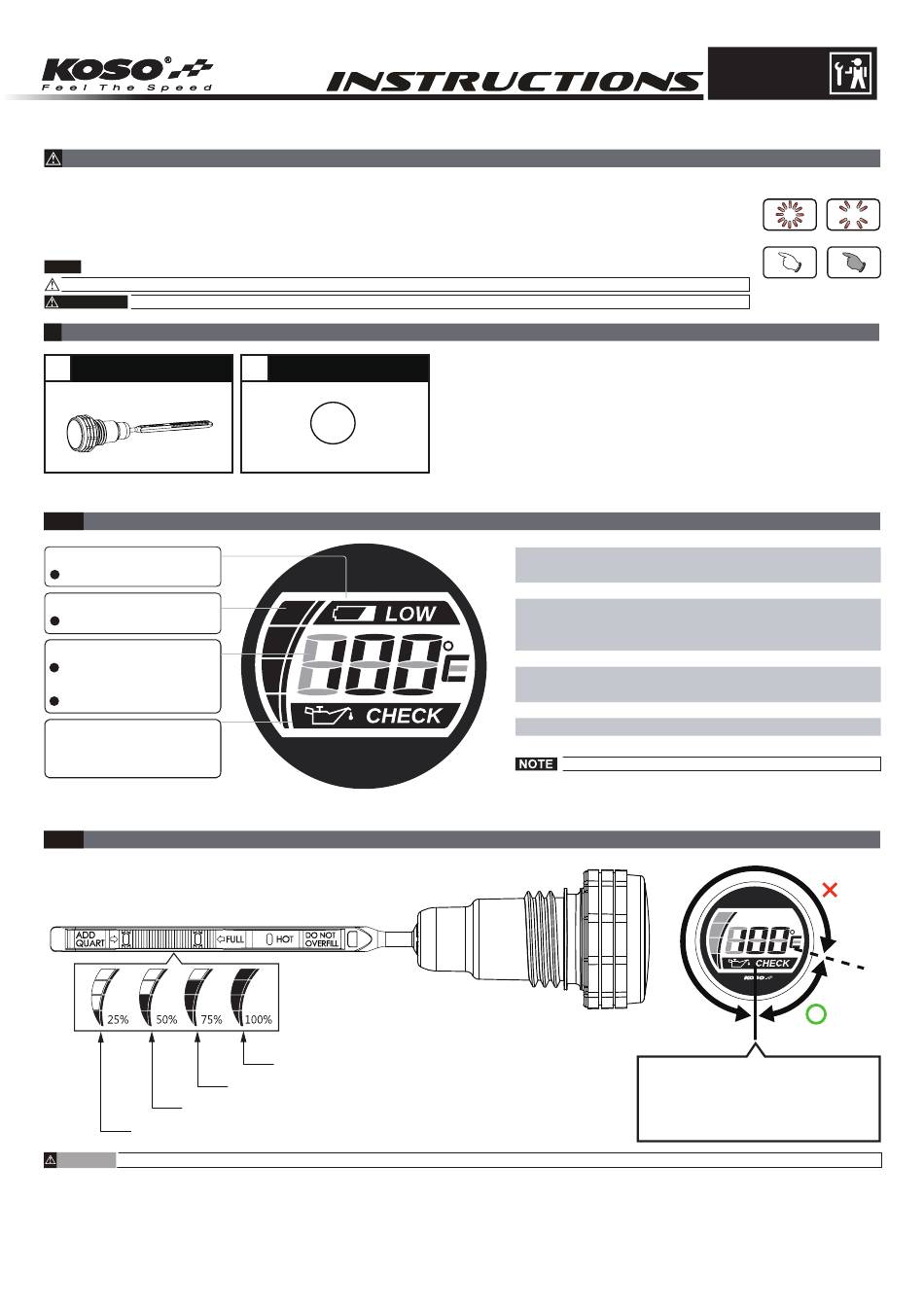

Koso BA053001 Instructions

● Thank you for purchasing our product. This product is a multifunction meter and is easy to install. Before using, please read the instructions
carefully and retain them for future reference.
Attention!
● For installation, please follow the steps described. Any damage caused by wrong installation shall be imputed to the users.
● To avoid a short circuit from occuring do not pull or modify the wires during installation.
● Do not disassemble or change any parts. Opening and dissassembling this unit will void any warranty.
● Maintenance and repairs should be executed by our professionals only.
◎ Symbol description:
NOTE
Some procedures must be followed to avoid damages to the instrument.
WARNING! Certain procedures must be followed to avoid damages to yourself, to the vehicle or others.
1
Accessories
1
Oil level and temperature
dipstick X 1
2-1

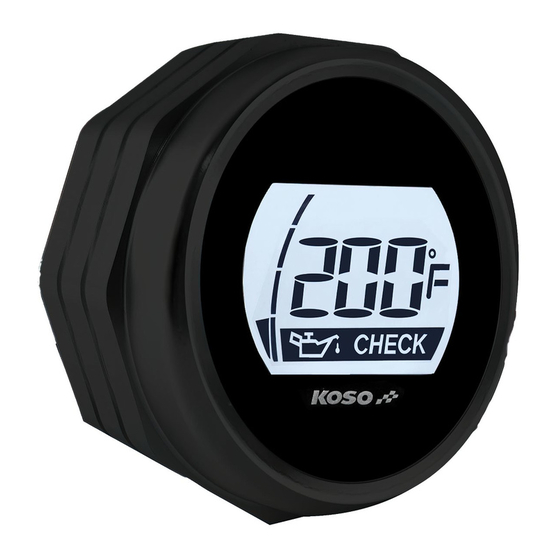

Basic Function Instruction
Low battery warning symbol
Light on steady
Engine oil level display
Display range: 1 ~ 4 level
Temperature display
Display range: 0 ~ 150°C
(32 ~ 302°F)
Display unit : 1 °C(°F)
Low engine oil level warning
symbol
2-2
Engine Oil Level Display
Engine oil level is 0.47L from full
Engine oil level is 0.71L from full
Low engine oil level warning symbol appears, please check the engine oil level as soon as possible to refill or replace.
CAUTION!
2
Inner waterproof O-Ring X 1
(The image shows the positive LCD display mode)
Engine oil level is full
Engine oil level is 0.24L from full
●Thermometer Display range : 0~150°C(32 ~302°F)
Display unit : 1 °C(°F)
●Oil meter Display range: 1 ~ 4 level
●Low battery warning
When low battery warning appears,
battery replacement is needed to
keep the dipstick accurate.
●Battery specification CR2032
●Effective -10~+60°C
temperature
●Meter standard JIS D 0203(S2)
●Meter size 217x48 mm
●Meter weight 273g
Design and specifications are subject to change without notice.
The screen can be moderately changed
to adjust your angle. Please keep
adjustments to a minimal rotation as it
could potentially cause damage to
wires on the interior or the head.
FLASH LIGHT ON
HOLD THE HOLD THE
BUTTON ONE BUTTON 3
SECONDS SECONDS
wh053ba01a
