Parts List; Build Notes - PedalPCB 2020 Edition Parentheses Fuzz Manual

RESISTORS (1/4W)
R1 1M
R2 1K
R3 1M
R4 10K
R5 470K
R6 47K
R7 22K
R8 2K2
R9 10K
R10 10K
R11 100K
R12 100K
R13 47K
R14 47K
R15 10K
R16 1M
R17 1K
R18 10K
R19 10K
R20 560R
R21 47R
R22 1K
R23 1K5
R24 1M
R25 10K
R26 1M
R27 1K
R28 470K
R29 470K
R30 10K
R31 470R
R100 4K7
R101 4K7
R102 4K7

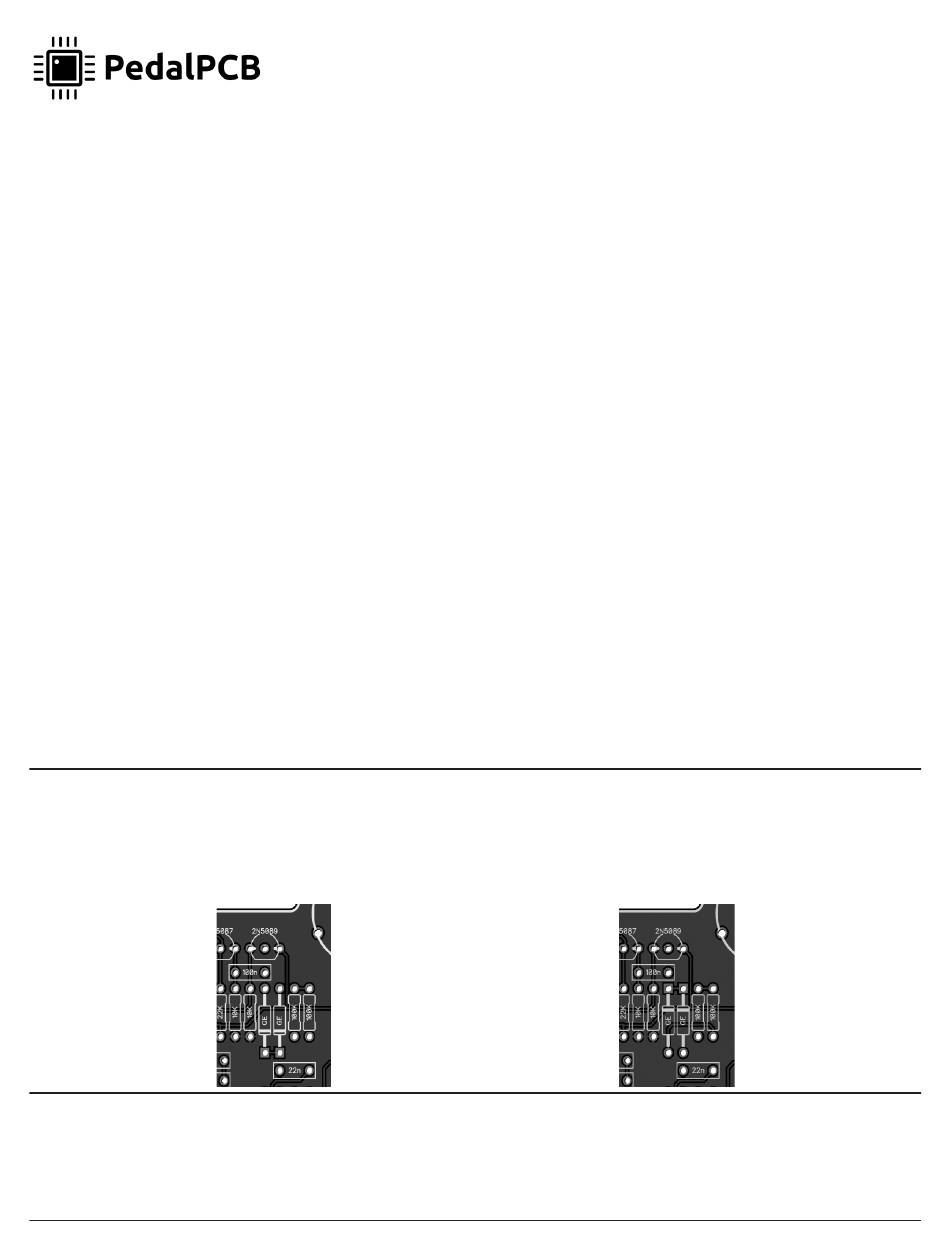

D1 and D2 orientation
In Version 1 of the original pedal D1 and D2 were installed backwards, this was corrected in Version 2.
NOTE: On some germanium diodes the stripe is on the Anode end of the diode instead of the Cathode. This
should be verified with a DMM before installing.
To build Version 1
Install D1 and D2 with cathodes pointing down.
2P4T Mini Rotary Clipping Switch
https://www.pedalpcb.com/product/mini-rotary-switch-2p4t/
D8 and D9 are only needed when using Rotary clipping switch. These can be omitted if using Toggle switch.
CAPACITORS
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C20
C21
C22
C100
SWITCHES
SW1
OR
SW1
Common offboard components (enclosure, footswitch, jacks, etc) are not listed
Copyright © 2020 - PedalPCB.com
Parentheses Fuzz

Parts List

100p
100n
100n
100n
100n
1u
1u
22n
4u7
1n
100n
10u
2u2
100p
30p
4u7
3n3
22n
1u
100p
1u
10u
100u
2P4T Mini Rotary Switch
SPDT ON/OFF/ON
Build Notes
Install D1 and D2 with cathodes pointing up.
INTEGRATED CIRCUITS
IC1 LM308
TRANSISTORS
Q1 PF5102
Q2 2N5089
Q3 2N5087
Q4 2N5089
Q5 PF5102
Q6 BS170
DIODES
D1 GE
D2 GE
D3 1N4148
D4 3mm Red LED
D5 1N4148
D6 1N4148
D7 1N4148
D8 GE (see notes)
D9 GE (see notes)
D100 1N5817
POTENTIOMETERS
DISTORTION A100K
FILTER A100K
AMPLITUDE A100K
OCTAVE B50K
BOOST A100K
To build Version 2
