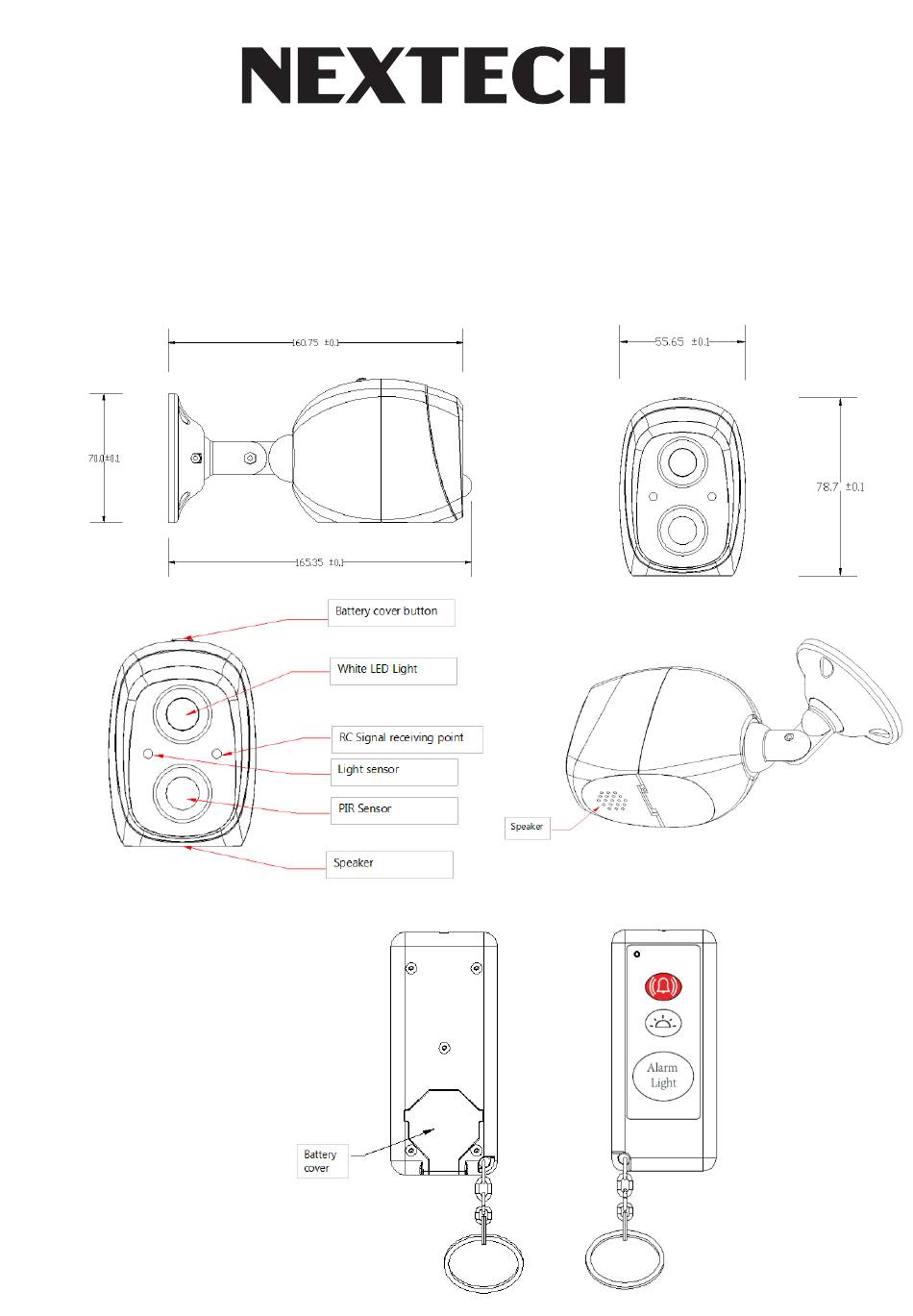

- Page 1 PIR Motion Sensor LED light with Alarm User Manual Dimension: A. Main body-Alarm and Light Remote Controller...
- Page 2 Basic Data: 1. Power source (Battery): 4 x 1.5V AA(main body); 1 x 3V CR2032(Remote Controller): 2. Detection range: 5m +/-1m. 3. Detection Angle: 120°. 4. Brightness of White LED light (1m distance testing): 80Lum. (Max). (Working 15 seconds long) 5.
- Page 3 Battery cover button Battery component B. Remote Controller. 1. Pull out the battery cover on the backside, Install or uninstall the CR2032 battery diagonally. 2. After battery installation, please press any button to check the operation, if the LED was light on, it proof that installed correctly.
- Page 4 Bracket Installation: 1. Drill three holes on the wall as shown in the below photo. Then insert the rubber plug, align the holes in the bracket with the rubber plug, and lock it. Installation Screw hole Direction-Fixed screw hole 2. You can rotate the bracket to adjust lens direction. See below photo Rotating the bracket to adjust lens direction.
