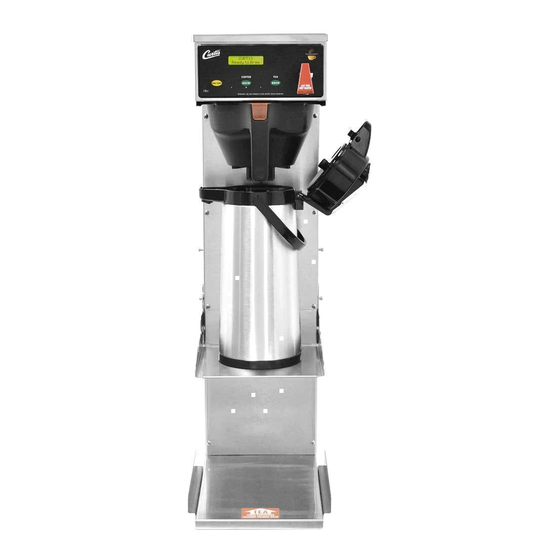

Models:
• CB
• CBP
CAUTION: Please use
this setup procedure
before attempting to use
this brewer. Failure to follow the
instructions can result in injury or the
voiding of the warranty.
CAUTION: DO NOT
connect this brewer to hot
water. The inlet valve is
not rated for hot water.
IMPORTANT: After
setup, run a full TEA
cycle first before running
a COFFEE cycle. Place an empty
tea container to catch both hot water
from the brew cone and dilution
water from spout on the front cover.
WARNING HOT LIQUID,
Scalding may occur.
Avoid splashing.
ISO 9001:2008 REGISTERED
WILBUR CURTIS CO., INC.
6913 West Acco Street
Montebello, CA 90640-5403
For the latest information go to
www.wilburcurtis.com
Tel: 800-421-6150
Fax: 323-837-2410
Important Safeguards/Conventions
This appliance is designed for commercial use. Any servicing other than cleaning and maintenance should be performed by an
authorized service technician.
• Do NOT immerse the unit in water or any other liquid
• To reduce the risk of fire or electric shock, do NOT open top or front panel. No user serviceable parts inside.
• Keep hands and other items away from hot parts of unit during operation.
• Never clean with scouring powders, bleach or harsh chemicals.
Symbols
WARNINGS – To help avoid personal injury
Important Notes/Cautions – from the factory
Sanitation Requirements
Your Curtis Combo Brewer is Factory Pre-Set and Ready to Go... Right out of the Box.
Following are the Factory Settings for your Coffee/Tea Brewing System:
• Brew Temperature = 204°F
• Brew Volume = Set to dispensing vessel requirements (2.2 liters)
Generally there will never be a reason to change the G3/Gold Cup Series default settings. However, should you need to make slight
adjustments to meet your brewing needs, programming instructions are provided later in this manual.
System Requirements:
• Water Source 20 – 90 PSI. Minimum flow rate of ½ gpm (1 gpm preferred flow rate).
• Electrical: See attached schematic for standard model or visit www.wilburcurtis.com for your model.
Equipment to be installed to comply with applicable federal, state, or local plumbing/electrical codes having jurisdiction.
SETUP STEPS
The unit should be level (left to right and front to back) and located on a solid counter top. Connect a water line from the water filter to the
brewer.
NOTE: A water filtration system must be used to help maintain trouble-free operation. Air must be purged from the
cartridge prior to connection to equipment. In areas with extremely hard water, we highly recommend the use of a Curtis
approved water filter. For our full line of filters, please log on to www.wilburcurtis.com.
NSF International requires the following water connection:
1. A quick disconnect or additional coiled tubing (at least 2x the depth of the unit) so that the machine can be moved for cleaning
underneath the unit.
2. This equipment is to be installed with adequate back flow protection to comply with applicable federal, state and local codes..
3. Water pipe connections and fixtures directly connected to a potable water supply shall be sized, installed and maintained in
accordance with federal, state, and local codes.
1. A 1/4" Flare has been supplied for water line connection. Use tubing sized sufficiently to provide a minimum of ½ gpm (1 gpm is
preferred).
2. Connect the unit to an appropriate electrical power circuit.
3. Turn on the toggle (STANDBY/ON) switch behind the unit. The heating tank will start to fill. When the water level in the tank rises
to the correct volume, the heating element will energize automatically. With the G3/Gold Cup Series there is no danger of element
burnout due to an unfilled heating tank.
4. The heating tank will require 20 to 30 minutes to reach operating temperature (204°F) as indicated by the READY-TO-BREW
LCD readout.
5. Important: Run one full TEA brew cycle first, before running a coffee brew cycle to purge water lines and valves of air. Five
seconds of pulsing dilution water at the beginning of each TEA brew cycle is normal pre-programmed operating behavior.
BREWING INSTRUCTIONS – COFFEE
1. Ready-to-Brew should be displayed on the UCM screen.
2. Make sure that the folding airpot deck is in the proper position to accommodate your airpot. Place a clean, empty airpot on the deck.
3. Place a new paper filter into the brew cone.
4. Pour ground
coffee into
brew cone
marked
COFFEE
FOR THE LATEST SPECIFICATIONS AND INFORMATION GO TO WWW.WILBURCURTIS.COM
W
C
ilbur
urtis
Service Manual – CB & CBP
5. Position
filled brew
cone into
brew rails.
C
., i
.
o
nC
6. Press the
COFFEE
Brew button.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB and is the answer not in the manual?

Questions and answers

Related Manuals for Wilbur Curtis CB

Summary of Contents for Wilbur Curtis CB

  • Page 1 ISO 9001:2008 REGISTERED Brew button. brew cone cone into marked brew rails. WILBUR CURTIS CO., INC. COFFEE 6913 West Acco Street Montebello, CA 90640-5403 For the latest information go to www.wilburcurtis.com Tel: 800-421-6150 FOR THE LATEST SPECIFICATIONS AND INFORMATION GO TO WWW.WILBURCURTIS.COM...

  • Page 2: Program Menus

    Brewing Instructions – Tea 1. Brewer should be ON (Confirm at rear toggle switch, then press ON/OFF button) and Ready-to-Brew displayed. 2. Make sure deck is folded down and tea container is in place. 3. Place filter in 4. Slide brew 5. Press the brew basket. cone into rails. tea brew Pour tea into Place tea button to begin basket marked container under brewing tea. ICED TEA. brew cone. Your Curtis G3/Gold Cup Series is Factory Pre-Set for Optimum Performance. After connection to water and power; the rear toggle switch must be on. You will hear a beep sound, indicating power is available to the controller.
  • Page 3 Program Menus Tea by Volume Scroll until Brew by Volume is displayed. Press  to Select. The display will read Select Brew Button! Once the desired Tea By Volume brew button is selected (COFFEE or TEA), the display will read Press BREW to Start 0:00 Time. Press the FULL BREW button and hot water starts dispensing. When the desired volume is reached, press FULL BREW again to stop the flow. The brew volume has now been set (HALF BREW will always be half of the FULL BREW volume). When EXIT is dis- played, Press  to select and exit the programming mode. Pressing > button will display the subsequent menu features. Tea by Time: (Factory set to 5:52 Full Brew, 2:56 Half Brew) Press  to Select. Press < or > to increase or decrease Tea By Time time. Tea by Time has a range of 0:00 to 9:59 (Increments are minutes and seconds). The HALF BREW button will be set at half the brew time. Dilution Delay: (Factory set to 30 sec Full Brew, 30 sec Half Brew) Press  to Select. Press < or > to toggle between Tea Dilut. Delay Standard-Gray (30 sec), Standard-Purple (30 sec), Tropical-Gray (9 min), Tropical-Purple (9 min), 76/308-Gray (4 min) and 76/308-Purple (4 min). Range is from 0 seconds, 1 minute to 10 minutes. Dilution Volume: Press  to Select, Display will now show Push START To Begin... Press the BREW button then water Tea Dilut. Volume starts running, when desired volume is reached press BREW button again to stop the flow. Now the volume has been set. Pressing > button will display the subsequent menu features. Dilution Time: (Factory set to 4:05 Full, 2:02 Half) Press  to Select. Press < or > to toggle between Standard-Gray Tea Dilut. Time (4min-5sec), Standard-Purple (4min-5sec), Tropical-Gray (4min-26sec), Tropical-Purple (4min-26sec), 76/308-Gray (4min-55sec) and 76/308-Purple (4min-55sec). Dilution Time is from 30 sec to 9 min, 59 sec. Tea Dilution Stir: (Factory set to Standard – Purple On). Tea Dilution Stir Press  to Select, press < or > for a choice of Standard-Gray: On, Standard-Purple: On, Tropical-Gray-Off, Tropical- Purple-Off, 76/308-Gray-Off and 76/308-Purple-Off. Dilution Stir applies only to the Dilution cycle, by pulsing the dilution time 45 seconds on, 5 seconds off.
  • Page 4 Program Menus Pre-Infusion (Factory set to OFF) Press  to Select. Current setting in seconds is displayed < to decrease or select > to increase (range from OFF to 10 Coffee Pre-infusion through 60 seconds),  to set. If Pre-infusion is selected (ON), Cold Brew Lock is set to Delta 1 within 5ºF of set point and Cold Brew Lock disappears from the list of program selections. When Pre-infusion is ON, Pulse Brew disappears from the list of program selections. Pulse Brew (Factory setting OFF) Press  to select, < or > to select OFF or one of five pulse patterns (A to E) . Coffee Pulse Brew Guidelines for Pulse Brew: This feature allows tuning of the coffee flavor. This option should only be used with the standard Gray or Purple AFS sprayheads. The pot level should always be set first with this option OFF. Depending on your grind profile and water conditions, the three Pulse Brew options help “tune” or change the coffee flavor. Filter Pack type coffees typically extract better with the A and B pulse setting. Decaf coffees typically extract better with the B pulse setting. High-Yield coffees typi- cally extract better with the C pulse setting. Of course, any of the A, B or C settings may be used to suit your taste profile. Settings D and E are manual pulse counts. If Pulse Brew is selected (ON), Cold Brew Lock is set to Delta 1 within 5ºF of set point and Cold Brew Lock disappears from the list of program selections. When Pulse Brew is ON, Pre-infusion disappears from the list of program selections. Coffee Drip-out (Factory set to 2 minutes) Coffee Press  to Select. Press < or > to move to desired time. Settings are OFF, 1, 2, 3, 4 and 5 minutes. Press  to Select Drip-out time. Safety Sw On/Off (Factory set to OFF) Safety SW On/Off Press  to display. Pressing < or > will turn this feature off or on. Temperature (Factory set to 204°F) Press  to Select. Press < or > to move to desired temperature and then  to set. Temperature is programmable from Temperature 170ºF to 208ºF in 2-degree increments.
  • Page 5 Program Menus Access Code (Factory set to 1-2-3-4) Access Code Press  to display number and change number, (the number can be changed 1 to 4) or < to move place and ex to exit when complete. Banner Name (Factory set to Curtis) Press  to display letters and change letters or < to move place and EX to exit when complete Banner Name This feature allows up to 14 letters to be programmed for company name or regional name. Programming all blanks disables Banner Name. If programmed, Banner Name is displayed every 5 sec. on and off. P-Maintenance (Factory set to OFF) Press  to Select, Set gallons brewed to indicate P-Maintenance. Press < or > to adjust from Off to 3000 gallons. Press P-Maintenance  to exit. Beeper On/Off (Factory set to ON) Beeper On/Off Press  to display ON or OFF. Pressing either < or > toggles between on and off.  to set. When ON, this feature allows you to hear a short beep each time a button is pressed. Quality Timer (Factory set to OFF) Press  to Select, OFF or ON, or 0 to 10 hours in 5 second increments. An audible alarm sounds when time has expired; Quality Timer at the same time, the screen will flash off and on with the words “Brew Fresh Tea”. This feature is for models built after 1/2015).

  • Page 6: Illustrated Parts

    Illustrated Parts...

  • Page 7: Parts List

    Parts List ITEM № PART № DESCRIPTION ITEM № PART № DESCRIPTION WC-58117 COVER, TOP BREWER WC-5527K* KIT, PROBE WATER LEVEL O-RING & NUT WC-889* VALVE, DUMP LEFT 120V 12W WC- 904-04* ELEMENT, HEATING 1.6KW 120V W/JAM NUTS 2A WC-860 VALVE, DUMP LEFT 220V 12W (EXPORT ONLY) WC-934-04 KIT, HEATING ELEMENT 2.5KW 220V (EXPORT ONLY) WC-2977-101K* KIT, FITTING SPRAYHEAD PLASTIC WC-4394 SHOCK GUARD, HEATING ELEMENT WC-37184* KIT, LABEL & UCM CBS CURTIS WC-1438-101* SENSOR, TEMPERATURE TANK 4A WC-390162 LABEL, UCM OVERLAY CBP/CBS CURTIS LOGO WC-523* THERMOSTAT, MANUAL RESET 120/220V 25A 220ºF MAX 4B WC-37418 KIT, UCM & LABEL CBS/CBP 220V (EXPORT) WC-522 THERMOSTAT, HI LIMIT DPST 277V 40A (EXPORT ONLY) WC-3417 BREW CONE,ASSY W/SPLASH POCKET BROWN COFFEE WC-5231* COMPOUND SILICONE 5 OZ...
  • Page 8 Illustrated Parts List TCN Tea Server ITEM № PART № DESCRIPTION WC-56052 LID, BREW THROUGH ASSY WC-38471 LABEL, FRONT TCN GENERIC WC-1803 FAUCET, SPB WC-37260 KIT, FAUCET W/ADAPTER CMPLT WC-3707 KIT, REPAIR SPB FAUCET WC-1805 SEAT CUP, FAUCET S’ WC-38163 LABEL, CURTIS SWP CLR/WHT WC-5686 DRIP TRAY, OCTAGON STYLE WC-3531 LEG, PLASTIC GLIDE TCN WC-3289 HANDLE, GASKET Tea Tips 1. Store tea bags in a dark, cool and dry place away from strong odors and moisture. Do not refrigerate. 2. Never hold finished brewed tea for more than eight hours at room temperature. Discard any unused tea after eight hours 3. Brew only enough tea that you reasonably expect to sell within a few hours. 4. To protect tea flavor and to avoid bacterial contamination and growth, clean and sanitize tea brewing, storage and dispensing equipment at least once a day. WARNING DO NOT refrigerate unused tea overnight for later consumption.

  • Page 9: Electrical Schematic

    Electrical Schematic...

  • Page 10: Rough-In Drawing

    Rough-In Drawing Cleaning the Brewer Regular cleaning and preventive maintenance is essential to keep your coffee brewer looking and working like new. CAUTION – Do not use cleansers, bleach liquids, powders or any other substance containing chlorine. These products promote corro- sion and will pit the stainless steel. USE OF THESE PRODUCTS WILL VOID THE WARRANTY. 1. Wipe exterior surfaces with a moist cloth, removing spills and debris. 2. Slide the brew cone out and clean it. Clean the spray head area with a moist clean cloth. 3. Rinse and dry the brew cone. 4. Rub a stainless steel polish on the outside surfaces to protect the brewer. Cleaning the Tea Containers 1. Wash the tea container and top cover. Use a detergent solution and a soft bristled brush to clean inside the container. Wipe the exterior surfaces with a sponge and detergent solution. Rinse thoroughly. 2. Clean the faucet assembly. Unscrew the handle assembly from the faucet and remove. Clean the faucet shank with a gage glass brush (circular bristle) by pushing the brush through the shank. Using the same brush clean the faucet body inlet and outlet. Clean the faucet cap and silicone seat cup. 3. After the cleaning, place the parts (sprayhead, brew cone and basket and faucet parts) rinse the parts in hot water to remove traces of detergent.
  • Page 11 To Sanitize the Disassembled Parts: Wear rubber gloves for protection. 1. Place the cleaned parts into a sink. 2. Immerse them in commercial Bar Tabs/Sani-Tabs sanitizing solution The solution must be warm (75°F.) Allow the parts soak in the sanitizer for at least one minute. 3. Remove the parts from the sanitizer and air dry. 4. After cleaning, sanitizing and drying, assemble the parts taken from the tea container. Cleaning Airpots: 1. In a container, mix a mild detergent solution for cleaning your airpots. 2. Discard any old coffee from the airpot. 2. Wipe the exterior surfaces with a sponge moistened with the detergent solution, removing water spots and coffee. 3. Remove and clean the syphon tube/funnel with a detergent solution. 3. Clean inside the airpots with a sponge brush soaked in detergent solution. 4. An easy way to clean remove mineral deposits from the brew cone and airpot, is to use coffee equipment cleaning tablets. a. Place a tablet into the brew cone. b. Place the airpot onto the brew deck and open the lid. c. Start a coffee brew cycle by pressing the Brew button on the control panel. d. Once the brew cycle has finished, allow the cleaning solution to sit in the airpot for a minute. Discard the used cleaner from the airpot.

  • Page 12: Product Warranty Information

    This includes institutional and correctional facilities. The Wilbur Curtis Co., Inc. will allow up to 100 miles, round trip, per in-warranty service call.
