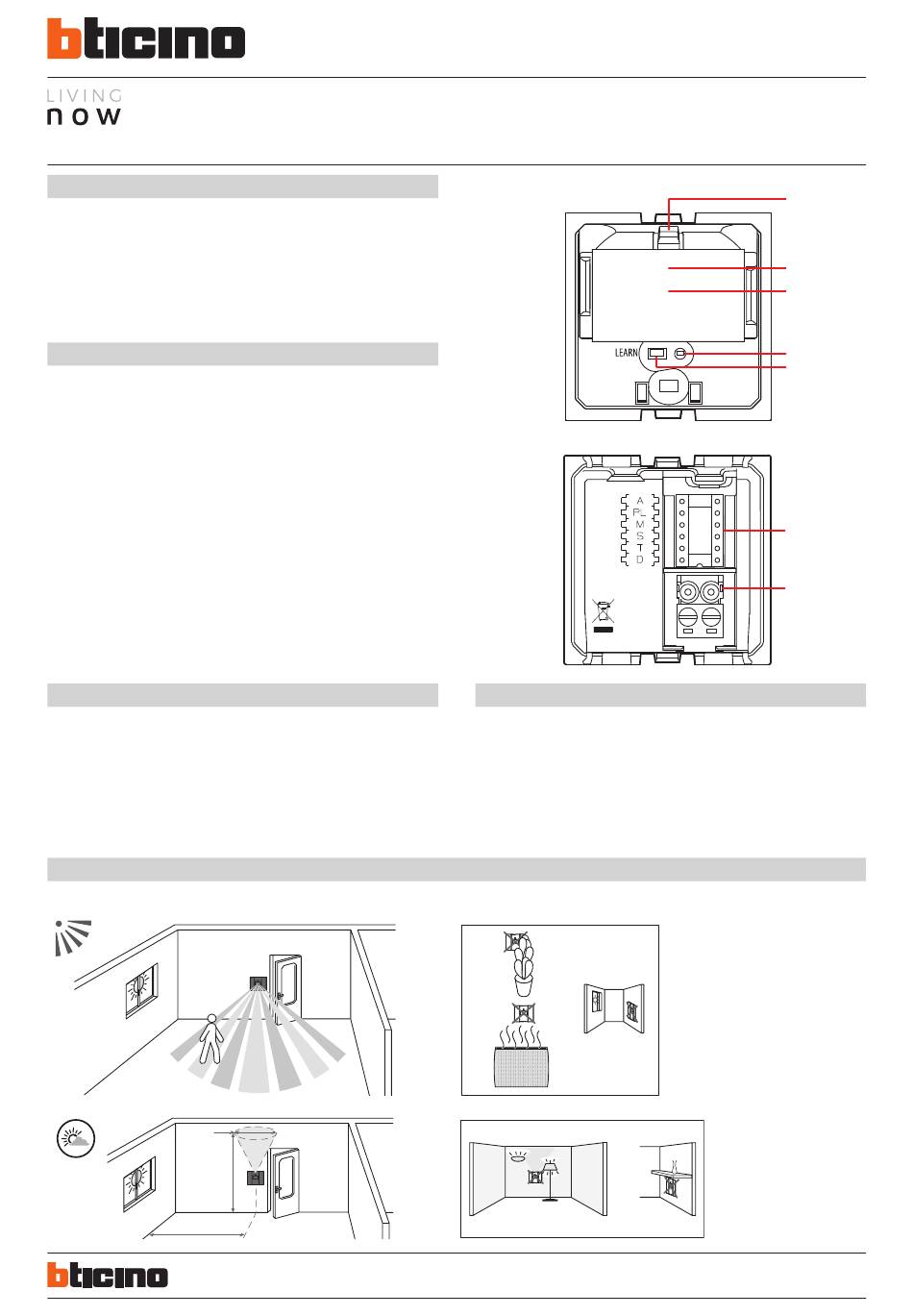

PIR flush mounting motion sensor
Description
Green Switch: passive IR (PIR) flush-mounted 2-module movement sensor, suitable for
the detection of presence in transit areas. Operating mode (automatic or manual), time
delay (5 s to 59 min), and brightness threshold (20 to 1275 LUX).
Technical data
Voltage:
Maximum current draw:
Connection between sensor and actuator: SCS BUS connector
Sensor type:
Flush mounted box depth:
Weight:
Impact resistance:
Penetration of solids and liquids:
Time delay:
Brightness:
Operating temperature:
Storage temperature:
Dimensional data
Size: 2 flush mounted modules.
Installation
Positioning the detector
1 m
2,5 m
≥ 2,5 m
www.bticino.com
27 Vdc
15 mA
PIR movement detector with 180° detection
angle and brightness sensor.
40 mm
60 g
IK04
IP20
5 sec – 59min. 59 sec
20 – 1275 lux
(-5) – (+45) °C
(-20) – (+70) °C
ST-00000220-
Front view
Rear view
Legend
1.
Brightness sensor
Two-way IR transmitter (under the lens)
2.
Movement sensor and PIR sensor (under the lens)
3.
4.
LEARN LED
LEARN button
5.
Configurator socket
6.
7.
BUS clamp
24/04/2019
EN
K4659
1
2
3
4
5
6
7
Position the sensor so
that it is not affected by
the artificial light already
present in the room.
1
Advertisement
Table of Contents
Related Manuals for Bticino Living Now BMS04001
Summary of Contents for Bticino Living Now BMS04001
- Page 1 K4659 PIR flush mounting motion sensor Description Front view Green Switch: passive IR (PIR) flush-mounted 2-module movement sensor, suitable for the detection of presence in transit areas. Operating mode (automatic or manual), time delay (5 s to 59 min), and brightness threshold (20 to 1275 LUX).
- Page 2 K4659 PIR flush mounting motion sensor Settings Sensor parameters Default value Adjustable parameters Configuration remote control BMSO4001 BMSO4003 3,5,10,15,20 mn − Time delay 15 mn 30s - 255 h 59 mn 59s − Sensitivity PIR (very high) Low, medium, high, very high 20, 100, 300, 500, 1000 lux −...
- Page 3 K4659 PIR flush mounting motion sensor Modification of the parameters using the configuration remote controls • BMSO4001: advanced configuration remote control • BMSO4003: simplified configuration remote control When the sensor receives an IR command from a configuration remote control, it beeps to confirm that the modification has been acquired.
-
Page 4: Available Functions
K4659 PIR flush mounting motion sensor Available functions Configurator mode The sensor controls the light unit, the address of which defined in A and PL. When a movement is detected, and if the measured brightness is below the configured value, the system switches on the specified light unit and keeps it on until the expiry of the period configured using the configurator on T (automatic mode). -
Page 5: Maintenance
K4659 PIR flush mounting motion sensor Maintenance Wiring diagrams Keep the lenses clean. Clean the surface with a cloth. Do not use: acetone, detergents for removing tar, or trichloroethylene. Maintenance using the following products: - Hexane (En 60669-1) - Methylated spirit - Soapy water - Diluted ammonia - Bleach, diluted 10%...
