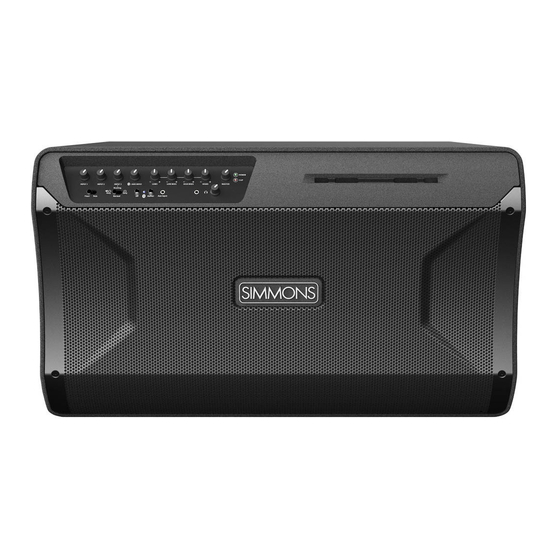

- Page 1 WILL USE K EYSHOT IMAGES HERE DA2100 SERIES ADVANCED ELECTRONIC DRUM AMPLIFIERS OWNER’S MANUAL SimmonsDrums.net...
- Page 2 INITIAL SETUP Position your DA2100 Series amplifier in the desired location, and ensure the amp is stable. Floor Free-standing Pole (speaker stand not included) POWER • Make sure the power switch is set to the OFF (0) position. • Connect the included detachable IEC power cable from a power outlet to the power cable input.
-
Page 3: Bluetooth Troubleshooting
DEVICE HOLDER • Each model in the DA2100 series ships with a removable mobile device holder as an accessory inside the retail packaging. • When using your amp in floor wedge position, you can attach the holder to the front-panel as shown below. - Page 4 • If you’d like to amplify additional sources, connect them to the remaining rear panel inputs, or the front panel aux input ROUTING SWITCH • If you are using a single DA2100 series amplifier, set the rear panel switch to Mono •...
- Page 5 DA2100 SERIES ADVANCED ELECTRONIC DRUM AMPLIFIERS QUICK START: CONTROLS VOLUME CONTROLS • Turn all input level control knobs to the minimum position • DA2112 only: also turn the Master knob to minimum VOICING SWITCH • Set the Voicing switch to Floor when using the amplifier lying horizontally on the floor, or free-standing vertically •...
- Page 6 SMART STEREO WITH PAIR OF AMPLIFIERS A pair of DA2100 Series amplifiers can operate together as a Smart Stereo system, giving you control of the sound and volume of both amplifiers from the first master amplifier, and optimally distributing all audio inputs to both for rich stereo sound.
- Page 7 DA2100 SERIES ADVANCED ELECTRONIC DRUM AMPLIFIERS SMART STEREO WITH SUBWOOFER OR DIRECT OUT To connect a subwoofer, or a direct out, the setup is the same as on the opposite page, but you can add a connection from the first unit’s DIRECT OUT jack to a subwoofer or other audio receiving device, as shown below.
-
Page 8: Connections And Controls
CONNECTIONS AND CONTROLS DA2108 FRONT PANEL DA2108 REAR PANEL DA2110 FRONT PANEL DA2110 REAR PANEL DA2112 FRONT PANEL DA2112 REAR PANEL REAR PANEL POWER... - Page 9 DA2100 SERIES ADVANCED ELECTRONIC DRUM AMPLIFIERS CONNECTIONS AND CONTROLS REAR PANEL BALANCED LINE INPUTS LINK IN JACK Balanced or unbalanced line level sources can be connected here. Activated only when switch is set to LINK IN - Mono sources: connect to Left/Mono jack only...
-
Page 10: Specifications
DA2100 SERIES ADVANCED ELECTRONIC DRUM AMPLIFIERS SPECIFICATIONS A matching pair of DA2100 series amplifiers can be connected via a standard microphone cable, for unified Smart Stereo volume and tone control from the first master amplifier, with optimal distribution of mono and stereo audio... - Page 11 Please keep this instruction manual for future reference and for the 14. Refer all servicing to qualified service personnel. Servicing is required duration of owning your Simmons DA2100 Series Advanced Electronic when the apparatus has been damaged in any way, such as power- Drum Amplifier.
- Page 12 EXCESSIVE SPLs prevent blade exposure. Simmons Advanced Drum Amplifiers are capable of producing extremely loud volume levels that can cause permanent hearing damage to RISK OF RISQUE DE CHOC performers, production crews or the audience.
-
Page 13: Warranty
Two (2) Years limited warranty 1. Caution: Changes or modifications to this unit not expressly Subject to the limitations set forth below, Simmons® hereby approved by the party responsible for compliance could void represents and warrants that the components of this product the user’s authority to operate the equipment.
