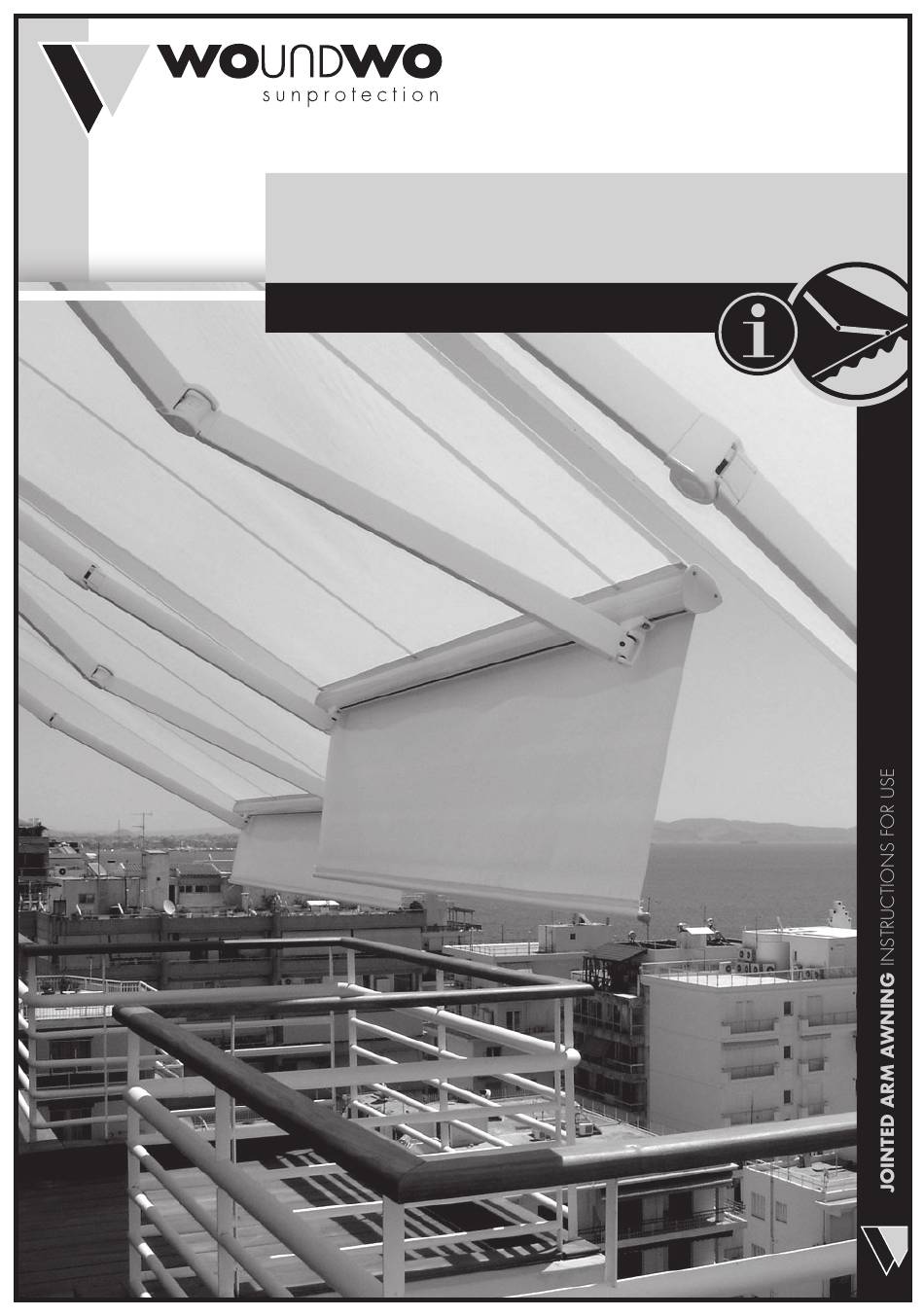

  • Page 1 800281_EN JOINTED ARM AWNING INSTRUCTIONS FOR USE...

  • Page 2: Table Of Contents

    It is important to follow these instructions for people‘s safety. These instructions must be kept. All WOUNDWO awnings are designed and manufactured in line with the provisions set forth in the EN 13561 standard. Nonetheless, dangers can arise for the people involved and/or the product can be impaired or other property damaged.

  • Page 3: Intended Use

    INTENDED USE WOUNDWO jointed arm awnings are primarily designed to protect against solar radiation. They can also be used as rain protection to a limi- ted extent (see 7.1. for details). Any other use or use that extends beyond this shall be deemed improper. The manufacturer assumes no liability for any resultant damages.
  • Page 4 The following accessories are available for WOUNDWO jointed arm awnings: Wireless remote control Automatic sun / wind / rain control Room thermostat Vario valance Light strip Radiant heater Detailed information about the right accessories and how to integrate them is available from all WOUNDWO specialist dealers. WWW.WOUNDWO.COM...

  • Page 5: Operation

    7.2 OPERATING JOINTED ARM AWNINGS WITH A CRANK DRIVE a) Series TOPLINE (TOPLINE, TOPLINE PLUS, TOPLINE CASSETTE): TRENDLINE (TRENDLINE, TRENDLINE CASSETTE): EXTENDING THE AWNING: Hook the crank handle into the gearbox eye and extend the awning by turning the crank anti-clockwise until the aw- ning reaches either the desired or the end position.

  • Page 6: Operating The Electric Drive

    10. DISASSEMBLY Improper assembly activities can result in personal injury or property damage. Only have a WOUNDWO specialist dealer perform disassembly work. Please refer to the product instructions for assembly for specifications / notices. 11. EC DECLARATION OF CONFORMITY PURSUANT TO THE MACHINERY DIRECTIVE 2006/42/EC...

  • Page 7: 12. Declaration Of Performance

    12. DECLARATION OF PERFORMANCE (DOP NO. 210011306) Identification code for the product type: JOINTED ARM AWNING (TOPLINE CASSETTE, TOPLINE PLUS, TOPLINE; TRENDLINE CASSETTE, TRENDLINE SUNBOX, TRENDLINE, TRENDLINE SMARTBOX; SWINGLINE CASSETTE, SWINGLINE; FIRSTLINE; BASICLINE; WINGLINE) Intended purpose: Awning for outdoor use Manufacturer: WO&WO Sonnenlichtdesign GmbH &...

  • Page 8: 13. Product Identification

    TRENDLINE m TRENDLINE CASSETTE Product description m TRENDLINE SUNBOX m TRENDLINE SMARTBOX m TOPLINE m TOPLINE PLUS m TOPLINE CASSETTE m WINGLINE WOUNDWO order number Assembly date Handed over by / on: (Specialist dealer‘s stamp and signature) WWW.WOUNDWO.COM WO&WO Sonnenlichtdesign GmbH & Co KG Hafnerstraße 193, 8054 Graz, AUSTRIA...
