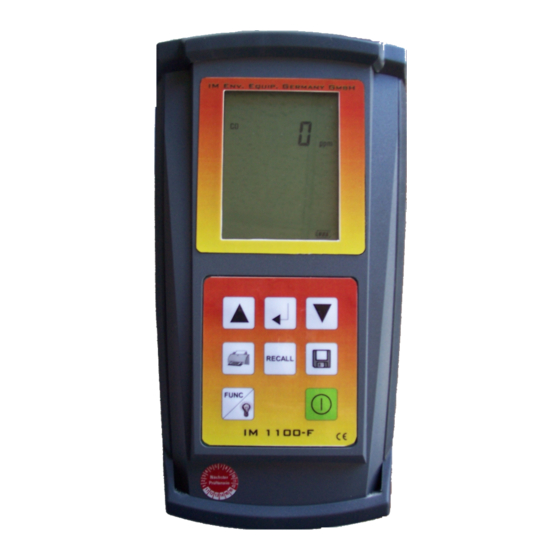

- Page 1 Flue Gas Analyzer IMR 1100F IMR Environmental Equipment. Inc. 3634 Central Ave. St. Petersburg Florida 33711 Tel: 727-328-2818 – Fax 727-328-2826 info@imrusa.com www.imrusa.com User Manual...
-
Page 2: Table Of Contents
IMR Environmental Equipment, Inc. IMR 1100F INTRODUCTION SAFETY INSTRUCTIONS 1 GENERAL 1.1 IMPORTANT NOTES ON OPERATION OF THE METER 2 DESCRRIPTION 2.1 OVERVIEW WITH TECHNICAL DATA 2.2 CONNECTORS 2.2.1 GAS Nipple (Gas sampling probe) 2.3 POWER SUPPLY / BATTERY 2.4 CONTROLS... -
Page 3: Introduction
The device must not be used in water. 1 GENERAL The IMR 1100F is a sophisticated flue gas analyzer, which for CO measurement on trucks with LPG - combustion engine according to §§ 33 and 37 UVV "Use of Liquid" (BGV D34) can be used. -
Page 4: Descrription
Refrigerant Leak Detector DTH51 – Hygrometer with IR-Thermometer TECHNICAL SPECIFICATIONS Power Supply 3 x AA Batteries Illuminated Gas sampling probe Flexible Pipe, 300mm Operating -10°C to 50°C -20°C to 50°C Storage Temperature IMR reserves the right to change technical reserves. -
Page 5: Connectors
IMR Environmental Equipment, Inc. IMR 1100F 2.2 CONNECTORS – Gas inlet nipple (probe tube) 2.2.1 GAS Nipple (Gas sampling probe) Before the device can be put into operation, the gas sampling probe must be connected to the analyzer. For this purpose, the tube of the probe is placed on the bag filter and this is then placed on the “GAS”... -
Page 6: Controls
IMR Environmental Equipment, Inc. IMR 1100F 2.4 CONTROLS GAS-ENTRANCE GAS-EXIT IR-transmission- Upon turning on 2 seconds – on / off switch SWITCHING – from the current CO value to Max value and vice versa ENTER – Confirmation key Up Arrow – is as requires at date / time ▲... -
Page 7: Operation
Connect as described above, first the gas sampling probe and the small bag filter with the IMR 1100F and then turn on the device. For the ON/OFF button for 2 seconds must be pressed. The unit starts with a zero point calibration, and these must be carried out in fresh air. -
Page 8: Print
IMR Environmental Equipment, Inc. IMR 1100F 3.3 PRINT The measured values can also be printed on the optional printer. The IR transmitting LED of the meter, which is located on the left side. ----------------------------------------------------------------------------------------------------------------------------- --------------... - Page 9 IMR Environmental Equipment, Inc. IMR 1100F...
-
Page 10: Ir-Printer A740 (Optional)
IMR Environmental Equipment, Inc. IMR 1100F 3.3.1 -Printer A740 (optional) Operation Taste 1: On/Off switch – Red LED is on when the printer is turned on Taste 2: Contrast – yellow = low; Green = normal; Red = high... -
Page 11: Save
IMR Environmental Equipment, Inc. IMR 1100F 3.4 SAVE... -
Page 12: Stored Measurements
IMR Environmental Equipment, Inc. IMR 1100F 3.5 STORED MEASUREMENTS 3.6 BACKLIGHT To turn on the backlight, the "FUNC" button for 2 seconds must be pressed. The backlight is switched on and is automatically switched off again after 20 seconds. A small icon also... -
Page 14: Date / Time
To turn off the on/off switch and a ventilate cycle begins and the meter turns off automatically after this countdown from. The IMR 1100F also turns off automatically after 10 minutes, if the CO val below 15ppm and no key is pressed in the last 10 minutes. -
Page 15: Brief Summary Of Operations
IMR Environmental Equipment, Inc. IMR 1100F 4 BRIEF SUMMARY OF OPERATIONS CONDENSATE TRAP BEFORE TURNING INSPECT AND EMPTY! – TASTE 2 Hold seconds Switching on: IMR 1100F DANGER: – TA - But gas sampling probe connect not introduce into the exhaust! -
Page 16: Error Messages
IMR 1100F 5 ERROR MESSAGES The IMR 1100F is equipped with a number of Self check to ensure trouble-free operation. If an error is detected, it is displayed. Thereafter, no further measurements should be performed, but the cause of the error will be corrected as soon as possible. -
Page 17: Warranty
2. The IMR warranty shall be granted on the factory new unit and shall commence on the date of the delivery of the original IMR unit to the customer. It shall last for a period of twelve months regardless of the type and the intensity of use and regardless of any change of owner, which may occur during this warranty period.
