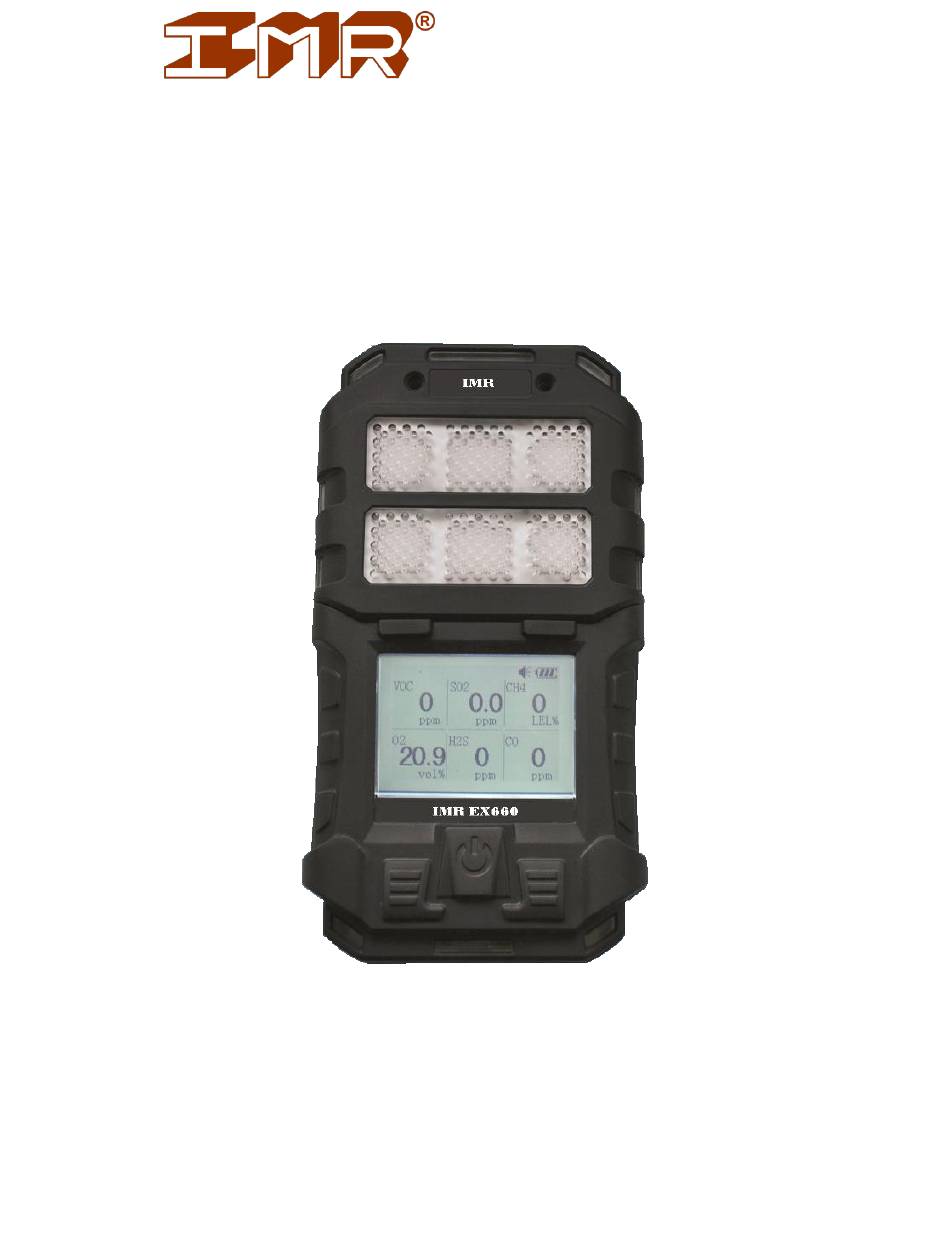

- Page 1 Environmental Equipment, Inc. IMR EX660 Portable SMART Sensor Gas Detector User Manual Read this manual carefully before using this device. (727)328-2818 / (800)RING-IMR • Fax: (727)328-2826 www.imrusa.com • email: info@imrusa.com R2.3L...
-
Page 2: Table Of Contents
Standard Accessories ............................. 19 Troubleshooting ............................20 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA Page 2 of 27... - Page 3 WARRANTY ............................23 Contact Information ........................... 24 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA Page 3 of 27...
-
Page 4: Safety Information
Only accessories that are designed for the IMR EX660 or authorized by IMR are permitted. Only the charger that is designed for the IMR EX660 is authorized to be used. It's exceedingly hazardous to charge the device in a dangerous environment. -
Page 5: Introduction
Password protection Intrinsically safe design 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA Page 5 of 27... -
Page 6: Technical Specification
Ingress protection: IP66 Dimensions and weight: 168mm×91mm×45mm, about 500g 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA... -
Page 7: Structure And Functions
4. Structure and Functions Appearance Display information 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA Page 7 of 27... -
Page 8: Operation Instruction
The device will self-test the buzzer, alarm lights and vibrator automatically. After self-testing the device enters into normal detection mode shown below. 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA... -
Page 9: Power Off
If the device does not respond or is showing errors please contact IMR for repair. 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA... -
Page 10: Menu Overview
. To exit without saving changes press 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA Page 10 of 27... -
Page 11: Advanced Menu
Note: Initial password for entering advanced menu is “0000”. 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA... -
Page 12: Gas Detection
“√” icon displays for the completed gas sensor(s) and “×” for the failed gas sensor(s). 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA... -
Page 13: Calibration
The currently selected icon will flash. Then press to enter the submenu. 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA Page 13 of 27... -
Page 14: Zero Calibration
“×” for failed gas sensor(s). 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA... -
Page 15: Span Calibration
3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA... - Page 16 During calibration press to skip calibrating a specific sensor. 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA...
-
Page 17: Alarm Point Setting
ST---STEL alert point TW---TWA alert point 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA Page 17 of 27... -
Page 18: Channel Setting
After setting the new password please remember it clearly. 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA... -
Page 19: Battery Charging
1 copy Charger 1 pc 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA Page 19 of 27... -
Page 20: Troubleshooting
Perform a zero calibration detection mode 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA Page 20 of 27... -
Page 21: Usage Notice
For any usage or issue that is not described in this manual contact IMR for advice. 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA... -
Page 22: Appendix1-Gas List
5ppm 10ppm 0-100ppm 2ppm 5ppm 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA Page 22 of 27... -
Page 23: Warranty
IMR unit to the customer. The IMR warranty shall refer to absence of faults with respect to the state of the art nature of the sold unit in terms of material and finish. The warranty for all parts fitted during the twelve-month warranty period shall end with the unit warranty. -
Page 24: Contact Information
IMR® is a registered Trademark of IMR® Environmental Equipment, Inc. 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA... - Page 25 Environmental Equipment, Inc. IMR EX660 User Manual 3632 Central Ave. St. Petersburg, FL 33711 – Phone: 727-328-2818 / 800-RING-IMR – Fax: 727-328-2826 – E-mail: info@imrusa.com – Web: www.imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA Page 25 of 27...
