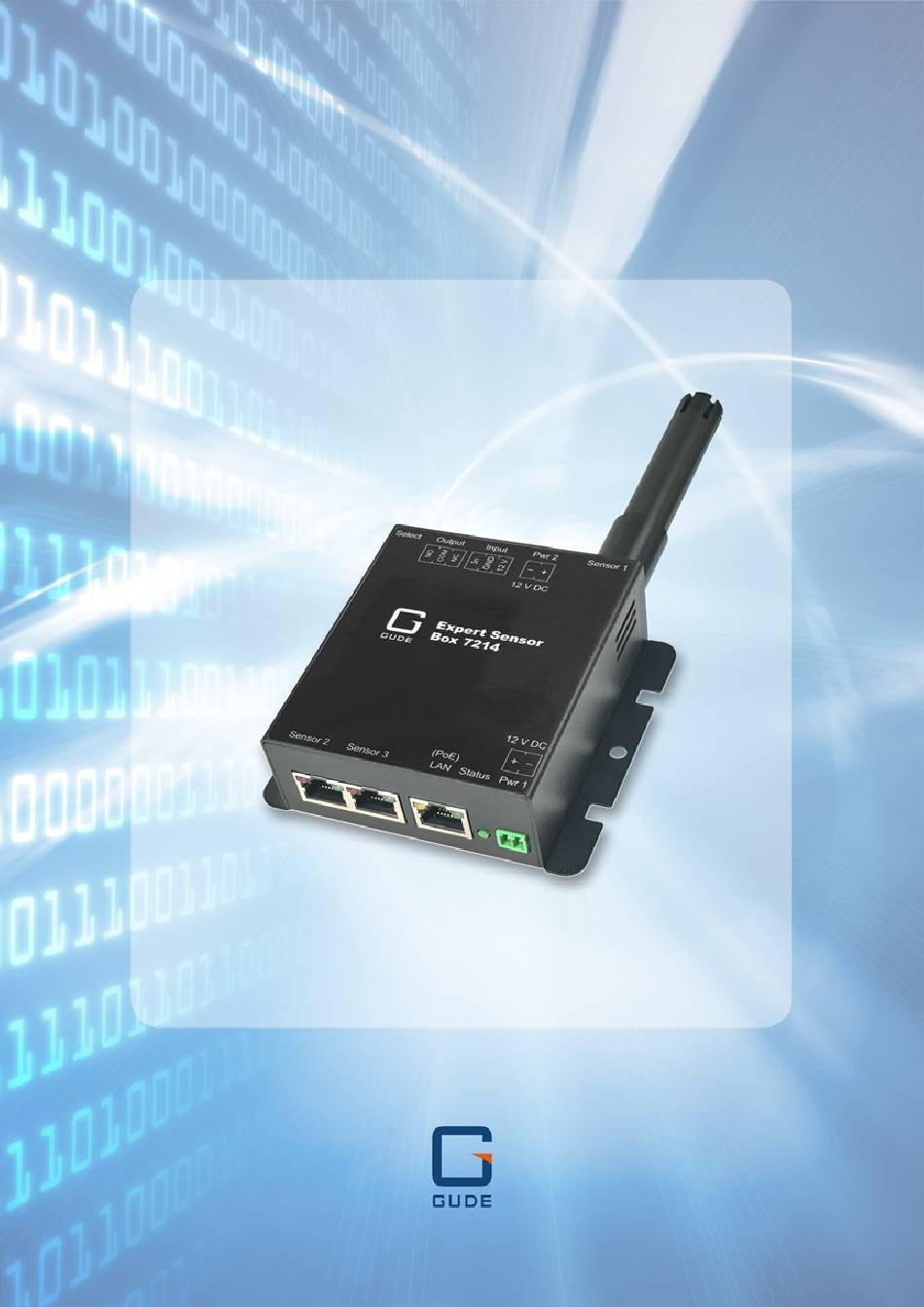

- Page 1 Manual Expert Sensor Box 7213 Expert Sensor Box 7214 © 2021 GUDE Systems GmbH Manual Ver. 1.2.0 from Firmware Ver. 1.2...
- Page 2 Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 3: Table Of Contents
Modbus TCP ......................36 Clock ........................36 3.5.1 NTP ......................... 37 3.5.2 Timer ........................38 3.5.3 Timer Configuration ....................38 Sensors ......................... 44 3.6.1 Port Switching ......................45 E-Mail ........................47 Specifications Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 4 Console Cmd 7213 ....................63 4.7.4 Console Cmd 7214 ....................68 Modbus TCP ......................74 Messages ......................79 Support Data Security ......................81 Contact ......................... 81 Declaration of Conformity ..................82 FAQ ........................82 Index Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 5 Device Description...
-
Page 6: Device Description Security Advice
· Power supply unit 7903 (12V DC, 1 A) (for 7213-1, 7213-2, 7213-3) · Quick Start Guide Description Depending on the model, the Expert Sensor Box 7213 / 7214 offers several environ- mental sensors. The device has the following features: Devices with voltage input: ·... -
Page 7: Installation
· The signal input has a 12 V connector for supplying the NO/NC devices Installation 1. Connector Sensor Port 1 2. Connector Sensor Port 2 3. Ethernet connector (RJ45) (with Pwr3 = only devices with PoE) 4. Status LED Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 8: Terminal Assignment
· Attach the optional external sensors to the connectors. · Connect the passive inputs and relay outputs to compatible devices. 1.4.1 Terminal Assignment The terminal assignment of the terminals is printed on the housing surface: Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 9: Redundant Voltage Supply
If both power supplies (only ESB 7214) are connected at the same time, the current is split up. The current distribution depends on the difference between the output voltages of the two power supplies. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 10: Technical Specifications
Connector for switching outputs and signal inputs: System terminal 3-pole AK1550/3-3.5-GREEN Sensor Two external sensors can be connected to the Expert Sensor Box 7213 / 7214. The following sensors are currently available Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 11 Device Description Humidity/Temperature Sensor 7102 (End-of-Life) Cable length Connector RJ45 temperature range -20°C to +80°C, ±0,5°C (maximum) and ±0,3°C (typical) air humidity range 0-100%, ±3% (maximum) and ±2% (typical) (non-condensing)) Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 12 A click on the link in the "Name" column opens the display of the Min and Max values. The values in a column can be reset using the "Reset" button. The "Reset" button in the name column deletes all stored Min and Max values. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 13 Device Description Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 14: Operating
Operating... -
Page 15: Operating The Device Directly
The web page provides an overview of the switching state, the sensor, as well as the external sensors, provided that they are connected. When the port is clicked, a panel with buttons to control the port appears: Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 16 The web page contains a status overview of the passive signal input, the time since the last change, and a counter of the switching cycles. The name and text for a logical state of the input is configured in the chapter Configuration-Input Ports Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 17: Maintenance
If the web interface of the device is no longer accessible, the device can be put into Bootloader mode (see chapter Bootloader activation ). The following functions can be executed using the GBL_Conf.exe application: Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 18 Bootloader mode (see chapter Bootloader activation ). All TCP/IP settings are reset in this operation. If a unit is set to factory defaults, an uploaded certificate or updated firmware will Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 19: Maintenance Page
Enter Bootloader Mode: Jumps into bootloader mode, where additional settings can be made with GBL_Conf.exe. Flush DNS Cache: All entries in the DNS cache are discarded and address resolutions are requested again. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 20: Configuration Management
The command "system fabsettings" (go to the factory state) from the beginning of a generated configuration file should not be removed, otherwise the device can get in- completely configured. Configuration via Telnet Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 21: Bootloader Activation
LED, or it is shown in "GBL_Conf.exe" application after a renewed device search (ap- pendix "BOOT-LDR" after the device name). In Bootloader mode the program "GBL_Conf.exe" can disable the password and the IP ACL, perform a firmware update, and restore the factory settings. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 22 · In menu "Program Device" activate the item "Reset to Fab Settings" · The status LED will blink in a fast rhythm, please wait until the LED blinks slowly (about 5 seconds) Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 23: Configuration
Configuration... -
Page 24: Output Ports
The delay may last up to 8191 seconds. This corresponds to a period of approx. two hours and 20 minutes. A value of zero means that the initialization is off. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 25: Watchdog
Enable watchdog: Enables the watchdog function for this Output Port. Watchdog type: Here you can choose between the monitoring by ICMP pings or TCP pings. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 26 If this option is activated, a watchdog is also triggered if the Ethernet link is down. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 27: Input Ports
On input is LOW: Switching action when Input Port changes from HI to LOW. Console push-messages This option allows the output of sensor values on the con- sole at a configured time interval, or when a certain threshold has been reached. Ethernet Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 28: Ip Address
Use manual IPv6 address settings: Activates the entry of manual IPv6 addresses. IPv6 status: Displays the IPv6 addresses over which the device can be accessed, and additionally DNS and router addresses. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 29: Ip Acl
IPv6 device addresses, and to set two DNS addresses, and a gateway. 3.3.2 IP ACL Reply ICMP ping requests: If you enable this feature, the device responds to ICMP pings from the network. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 30: Http
(AJAX). For some HTTP configuration changes a firmware reset is required. This can be done in the Maintenance web page. A restart of the device leads by no means to a Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 31: Protocols
SHA2-256 hash. If you want to change a password, the complete password must always be re-entered. If you have forgotten your password, please activate the bootloader mode and then turn off the password prompt in GBL_Conf.exe. Protocols Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 32: Console
Delay after 3 failed logins: After 3 wrong entries of username or password, the next lo- gin attempt is delayed. Use radius server passwords: Username and password are validated by a Radius Sever. Use locally stored passwords: Username and password are stored locally Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 33: Syslog
Syslog Server: If you have enabled Syslog Messages, enter the IP address of the server to which the syslog information should be transmitted. 3.4.3 SNMP SNMP-get: Enables the acceptance of SNMP-GET commands. SNMP-set: Allows the reception of SNMP-SET commands. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 34 MIB table: The download link to the text file with the MIB table for the device. More information about SNMP settings are available from our support or can be found on the Internet at www.gude.info/wiki. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 35: Radius
Shared secret: Radius Shared Secret. For compatibility reasons, only use ASCII char- acters. Timeout: How long (in seconds) will be waited for a response from an Authentication Request. Retries: How often an authentication request is repeated after a timeout. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 36: Modbus Tcp
Password is accepted by the configured Radius Servers. 3.4.5 Modbus TCP Enable Modbus TCP: Enables Modbus TCP support. Modus TCP port: The TCP/IP port number for Modbus TCP. Clock Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 37: Ntp
The user can set a time manually. set to Browsertime: Sets the time corresponding to web browser. If Time synchronization is enabled, a manual time will be overwritten at the next NTP synchronization. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 38: Timer
This chapter of the manual applies to all Gude devices. Devices without switchable ports can only have an advanced timer. For an action only the "Action CLI" tab is avail- able there, and not the "Action PortSwitch" tab. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 39 20:00. Creating an Advanced Timer If you create a advanced timer or change an already existing timer, an extended dialog is always shown: Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 40 (CLI Cmd) can be executed. On the "Action PortSwitch" tab the switching function can be set in more detail. Port 1 is switched on and switched off again after 1.5 hours. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 41 17:10 and 17:30 would be programmed. In order to change a field in this input mask without changing the state of the other fields, the Ctrl key must be pressed during the mouse click. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 42 Instead of switching a port, you can run one or more console commands. These com- mands are entered in the "Action CLI" tab. The "Action Cli" tab can only be selected if the option "Perform CLI Cmd" is activated under "Options". Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 43 Switches port 3 on every day at 9:25, and off again at 17:30. Save the simple rule. Then you call up the created timer and enter in the "Options" tab the date on which the switching process should take place. Example rolling shutter Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 44: Sensors
Sensor: Selects a type of sensor to configure it. The first digit "1" indicates the number of the sensor port (only important for devices with more than one sensor port). This is followed by the sensor name, and the changeable sensor name. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 45: Port Switching
Example with "Maximum value" of 65 °C, "Minimum value" of 25 °C and hysteresis of 3 °C. The dotted line shows the hysteresis. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 46 Only the switching operations for which actions have been defined, are triggered. If no "On" or "Off" action is defined for a port, the port can never reach this state by ex- ceeding sensor values. Unless it is the initial state. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 47: E-Mail
If you want to change a password, the complete password must always be re-entered. E-Mail Logs: Logging of E-Mail system messages. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 48: Specifications
Specifications... -
Page 49: Ip Acl
Leading zeros may be omitted within a block. The previous example can be rewritten 1234:4ef0:0:0:19:32ff:fe00:124 One may omit one or more successive blocks, if they consist of zeros. This may be done only once within an IPv6 address! 1234:4ef0::19:32ff:fe00:124 Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 50: Radius
/ write status of Power Ports (relays or eFuses) read / write names of Power Ports (relays or eFuses) read / write status of Port start configuration read / write status Buzzer Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 51: Snmp
In SNMP v1 and v2 the communities are transmitted unencrypted on the network and can be easily intercepted with IP sniffers within this collision domain. To enforce limited access we recommend the use of DMZ or IP-ACL. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 52 · For cryptologists it's a debatable point whether "HMAC-MD5-96" and "HMAC-SHA- 96" can muster enough entropy for key lengths of "AES-192" or "AES-256". · From the foregoing considerations, we would recommended at present "HMAC- Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 53: Device Mib 7213
's in between tables and scalars. OID scalar have the extension ".0" and only specify a value. In SNMP tables the "x" is replaced by an index (1 or greater) to address a value from the table. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 54 Temperature, Humidity, Air Pressure 7003, 7103, 7203 External Sensor Field Table "{sen_field}" Index Description Unit Temperature °C Humidity Digital Input bool Air Pressure Dew Point °C Dew Point Temperature Difference °C Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 55: Device Mib 7214
.67.1.6.1.1.3.x Integer32 actual humidity esb7214InputSensor .67.1.6.1.1.4.x INTEGER logical state of input sensor esb7214AirPressure .67.1.6.1.1.5.x Integer32 actual air pressure esb7214DewPoint .67.1.6.1.1.6.x Integer32 dew point for actual temperature and humidity Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 56: Ssl
· Use secure certificates (official certificate authority or marked as secure in the OS) · or use of the Firefox browser · or use of ECC 256 (no RSA) certificates · or configure to "TLS v1.2 only Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 57 The created server.pem can only be uploaded in the maintenance section of the device. If several certificates (Intermediate CRT's) should also be uploaded to the device, one should make sure, that firstly the server certificate and secondly the Intermediates are assembled , e.g: Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 58: Console
If parameters are expected for the command, the parameter may be passed as nu- meric or constant. If e.g. you get the following line as help: http server set {http_both=0|https_only=1|http_only=2} the following instruction pairs are equivalent: Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 59 2. Other configurations (such as the assigned IPv6 addresses) have several values that can change dynamically. This is marked with "Note 3" in the "Cmd Overview" table. Numerical Returns For parameters that support constants, these constants are output as return values. To Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 60 Ctrl-C clears the line Sensor Examples a) External Sensors >extsensor all show E=1,L="7106",0="21.3°C",1="35.1%",3="1013hPa",4="5.2°C",5="16.0°C"" E=2,L="7102",0="21.2°C",1="35.4%",4="5.3°C",5="15.9°C"" The command lists one connected external sensor per line, and the individual meas- Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 61 3 possible formats. e) Switching Port Relays #port all state set "1,2,12" 1 The command syntax "port all state set "{port_list}" {OFF=0|ON=1}" sets a list of ports to ON=1 or OFF=0. Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 62: Ssh
If you open a Telnet or SSH connection, you can use "console telnet pushmsgs set 1" or "console ssh pushmsgs set 1" to temporarily activate the push messages. From now Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 63: Console Cmd 7213
"{passwd}" sets hash of SSH public key console ssh public hash show shows hash of SSH public key Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 64 {24H=0|12H=1|2H=2|1H=3| sets sensor Min/Max measurement period 30MIN=4} extsensor period show shows sensor Min/Max measurement period http enters cmd group "http" http server set {HTTP_BOTH=0|HTTPS_ONLY=1| sets connection types the webserver accepts HTTP_ONLY=2} Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 65 <off=0/on=1> radius {PRIMARY=0|SECONDARY=1} enabled show if radius client enabled show radius {PRIMARY=0|SECONDARY=1} server set sets radius server address "<dns_name>" radius {PRIMARY=0|SECONDARY=1} server shows radius server address show Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 66 {0..23} sets facility level for timer syslog timer syslog facility show shows facility level for timer syslog timer syslog verbose set {0..7} sets verbose level for timer syslog Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 67 Temperature 7004, 7104, 7204 Temperature, Humidity 7002, 7102, 7202 Temperature, Humidity 7005, 7105, 7205 Temperature, Humidity, Air Pressure 7006, 7106, 7206 External Sensor Field Table "{sen_field}" Index Description Unit Temperature °C Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 68: Console Cmd 7214
"{passwd}" sets hash of SSH public key console ssh public hash show shows hash of SSH public key email enters cmd group "email" Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 69 BELOWMAX=3} port set {port_num} extsensor {port_num} {sen_type} {sen_field} {BELOWMIN=0|ABOVEMIN=1|ABOVEMAX=2| shows Port for Power Port Switching actions BELOWMAX=3} port show extsensor {port_num} {sen_type} {sen_field} sets Port state for Power Port Switching actions {BELOWMIN=0|ABOVEMIN=1|ABOVEMAX=2| Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 70 IPv4 DNS server address ip4 dns show shows IPv4 DNS server address ip4 dhcp enabled set {OFF=0|ON=1} enables IPv4 DHCP on/off ip4 dhcp enabled show shows IPv4 DHCP state enters cmd group "ip6" Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 71 {port_num} watchdog pingretries set {num} sets port watchdog ping retries port {port_num} watchdog pingretries show shows port watchdog ping retries port {port_num} watchdog retrybooting set sets port watchdog retry booting to on/off {OFF=0|ON=1} Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 72 "{dns_name}" sets address of syslog server syslog server show shows address of syslog server system enters cmd group "system" system restart restarts device Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 73 5. N/A 6. Please see the External Type and External Sensor Field Tables for the correct sensor index External Sensor Type Table "{sen_type}" Constants "{7x01=0|7x04=0|7x02=1|7x05=1|7x06=2}" Index Description Products Temperature 7001, 7101, 7201 Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 74: Modbus Tcp
Please try both possibilities for tests! The Unit-ID is ignored because the device is uniquely identified by its IP address. Supported Modbus TCP Functions Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 75 0 (aus) bis 3 (maximal) Line Energy Sensors 0x400 0x39ff see table Port Energy Sensors 0x3a00 0x81ff see table Bank Energy Sensors 0x8200 0x823f see table Power Source Sensors 0x8240 0x827f see table Info Area Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 76 0x100 + Port * 8 + Offset In the Expert Sensor Box 7213 / 7214 the internal sensor corresponds to the value Port = 0, and is coded Port = 1 for Sensor 2 and Port = 2 for Sensor 3.
- Page 77 For measured values such as "Neut- ral Current", which are independent of the phase, the same value is returned for all phases. DC Energy Sensors: Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 78 "Company Id" Object ID 1 Byte 0x00 Object Length 1 Byte Object Value n2 Bytes "Product Id" Object ID 1 Byte 0x00 Object Length 1 Byte Object Value n3 Bytes "Product Version" Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 79: Messages
· Loss / return of voltage at power supply (only ESB 7214) · Exceeding of the max / min values of attached sensors · State change of digital sensor input ports Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 80: Support
Support... -
Page 81: Data Security
+49-221-912 90 98 E-Mail: mail@gude.info Internet: www.gude.info shop.gude.info Managing Director: Dr.-Ing. Michael Gude District Court: Köln, HRB-Nr. 17 7 84 WEEE-number: DE 58173350 Value added tax identification number (VAT): DE 122778228 Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... -
Page 82: Declaration Of Conformity
Support Declaration of Conformity This product from the Expert Sensor Box 7213 / 7214 series is in conformity with the European directives for CE marking applicable to this product. The complete CE de- claration of conformity for this product can be found on the website www.gude.info in the download section of the product. - Page 83 Support 6. Disable switching events · You can set the sending of syslog, emails etc. when switching ports (only concerns Gude devices with relays) under "System" in the sensor configuration Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
-
Page 84: Index
Redundant Voltage Supply Restart - G - RS232 connector - S - GBL_Conf.exe - H - Security Advice Select button HTTP Sensors 10, 44 HTTPS signal strength SIM card slot SNMP 33, 51 Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH... - Page 85 Index Start-up the device Status LED Status-LED syslog - T - Technical Specifications Terminal Assignment Timer Timer Configuration - W - Watchdog Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
- Page 86 Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH 3/3/2021 Expert Sensor Box 7213/7214 © 2021 GUDE Systems GmbH...
