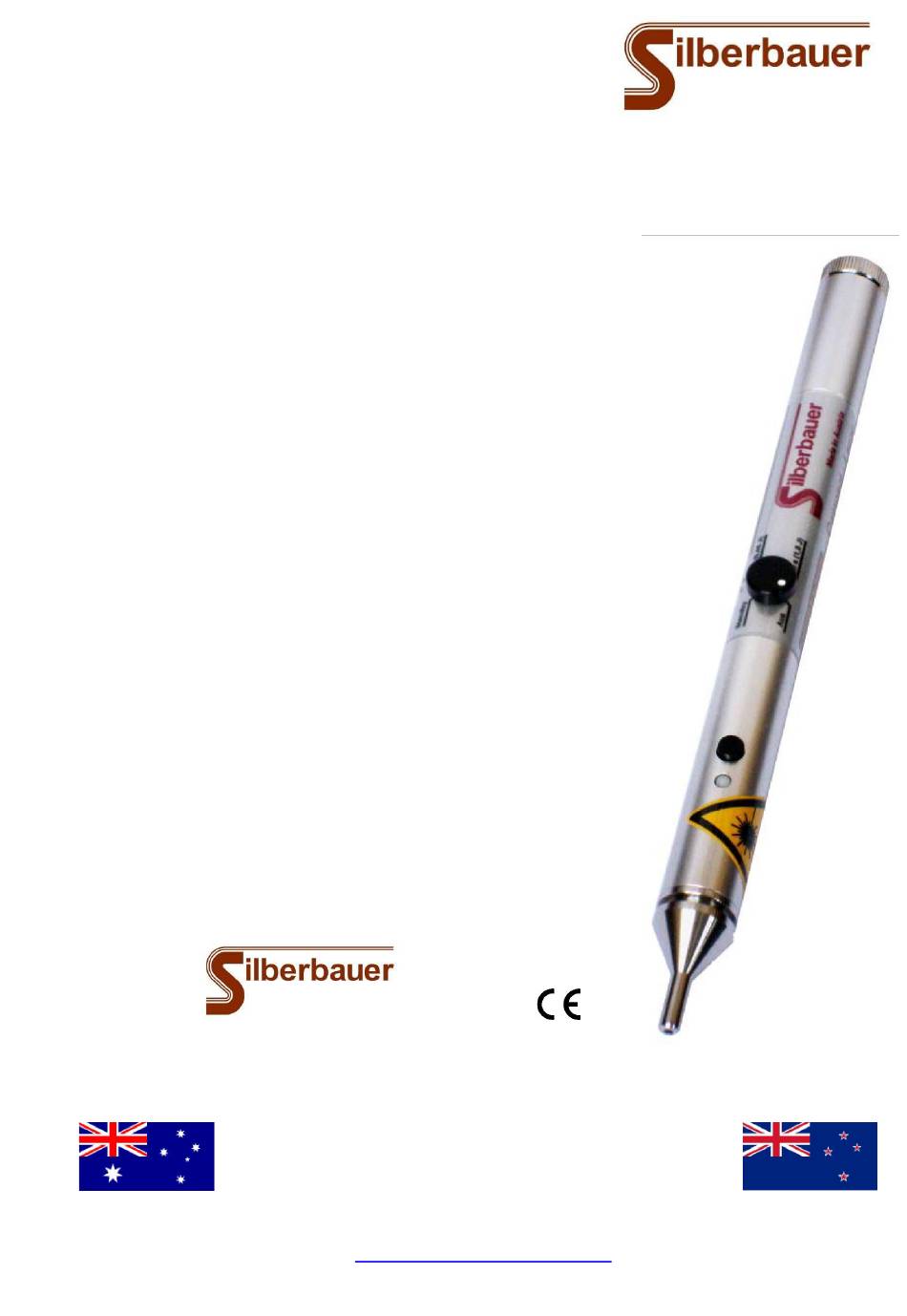

- Page 1 Compact - Laser CL mini Instructions for use Type: CL mini xx -658 0044 In Australia and New Zealand: ACUPAK Pty Ltd 9 Lawson St., East Hawthorn, VIC 3123 Tel: 03 98225454, Fax: 03 98225887 http://acupak.com.au...
-
Page 3: Table Of Contents
Content: page: Permitted Accessories: ..................0 Permitted Protection Goggles: ..............0 Permitted Device in connection with the CL mini Laser: ......0 1 Description of the Compact Laser CL mini ............1 2 Intended Use and Indications ................1 3 Safety precautions to be observed during the use of therapy lasers ....2 3.1 Alignment Laser Spectacles (Therapist’s Spectacles): ...... -
Page 4: Permitted Accessories
Compact - Laser CL mini Instructions for use Contents: 2 ea. AAA size NiMH – Batteries „Green“ Intelligent Charger for NiMH- Batteries Luxury Leather Case lockable Casket, Aluminum Instructions for use Applications of the Soft–Laser ... -
Page 5: Description Of The Compact Laser Cl Mini
Compact - Laser CL mini Instructions for use 1 Description of the Compact Laser CL mini The CL mini is a soft - laser (Low Level Laser) which you can hold in your hand. It is powered by one standard NiMH battery (size AAA). The laser light is red and divergent, so that the device complies with the Laser Class The light at the slender tip is almost point-like, so you very well may irradiate punctiform. -
Page 6: Safety Precautions To Be Observed During The Use Of Therapy Lasers
Compact - Laser CL mini Instructions for use 3 Safety precautions to be observed during the use of therapy lasers The appropriate legal security precautions are to be observed! Open wounds may NOT be touched with the laser or its accessory! Risk of infection! ... -
Page 7: Alignment Laser Spectacles (Therapist's Spectacles)
Protection level at 658 nm: for CL mini 8: R 1 for all other CL mini lasers: R 2 and admitted for laser mode D (continuous operation) Silberbauer - laser alignment spectacles offer only protection against accidental irradiation through laser up to these levels! They are - according to EN208 - NOT ALLOWED to be used for the deliberate view of ... -
Page 8: Contraindications
Compact - Laser CL mini Instructions for use 3.3 Contraindications The laser treatment with a Class 2M laser has according to EN60825 no risk. However, different authors have controversial positions because the laser is especially successful in applications where might have concerns forensic... -
Page 9: Requirements For User
Compact - Laser CL mini Instructions for use 3.5 Requirements for user a) Education: at least school leaving certificate, no upper limit b) Knowledge: Minimum: Reading and understanding of Western Arabic numbers and letters in a language of the country where the laser is used Mathematical knowledge (basic arithmetic, use of a simple formula) to determine the settings for area and dose per cm²... -
Page 10: Compact - Laser Cl Mini : View
CL mini 30 – Output Power reduces to approx. 15 mW 4.2 Initial use The Silberbauer Compact - Laser mini is delivered with rechargable NiMH- Batteries in Size AAA and with a charger for these batteries and can be used also with Alkali-Mangan- Batteries, Type AAA. -
Page 11: Use Of The Compact - Lasers Cl Mini
Compact - Laser CL mini Instructions for use 5 Use of the Compact – Lasers CL mini 5.1 Commissioning The rotary switch (5) is for switching the device on and off and to select the dose time of penetration. In “Off“ – position the device is switched off completely, no waste of battery power. -
Page 12: Laser-Point And Distance Of Irradiation
Direction of the Laser Beam The point of the Silberbauer - CL-Laser is created in the shape of a small tube that follows the cone. The point is easily found through it – the point, where the laser- radiation radiates on the skin. Normally, nearly inaccessible points, like behind the ear are easily radiated with no problems. -
Page 13: Irradiation Angle
Compact - Laser CL mini Instructions for use 5.3 Irradiation Angle To obtain optimal success during treatment, the laser must be positioned perpendicular to the skin's surface. Low reflection, wide reflection, Optimal penetration depth lower penetration depth = optimal success = less success 5.4 Use of the accessories To reduce power, push the power reduction tip onto the laser tip as far as it... -
Page 14: Location Of Acupuncture Points With The Compact - Laser Mini
Silberbauer Point Detector PS3 and a connection cable is required. Put one plug of the connecting cable into the rear socket of the laser. The other cable plug is required to be inserted into the golden socket of the Silberbauer PS3 instead of the point-search-tip. -
Page 15: Detection Of Ear- And Skull Acupuncture Points
Compact - Laser CL mini Instructions for use 5.5.3. Detection of ear- and skull acupuncture points The acupuncture points at the cranial zone because of Yamamoto and at the ear are “silent“ -in contrast to acupuncture points for the rest of the body. -
Page 16: Calculation Of The Correct Dose
Compact - Laser CL mini Instructions for use 5.6.3 Calculation of the correct dose Recommended dose for different applications Geriatrics Pain therapy new scars old scars Gynecology, Surgery Dermatology Sports, Physiotherapy Children, depending of age Dose (J/cm ): u Necessary irradiation period in seconds/cm² to get a certain dose (left row) for different laser models (upper line): CL mini... - Page 17 Now release the button and press it again. Repeat this corresponding to the number. Example for model CL mini 30 – 658: In the literature there are values between 0,54 and 3 J/cm recommended. Preset duration time in Joule at Silberbauer CL mini models: model: at 15 seconds: at 1 minute:...
-
Page 18: Control Of Use Of Lasers
CL mini 30 - 658 5.7 Control of Use of Lasers The Silberbauer Compact - Laser mini has a mechanism for control of the laser output power: The yellow light emittimg diode (2) glows when the laser works with 90% of its rated power at least. -
Page 19: Possible Dysfunctions Of The Laser
Compact - Laser CL mini Instructions for use 6 Possible dysfunctions of the laser Attention must be paid to the existing danger involved in meddling with a damaged instrument and being exposed to dangerous laser-radiations! If the yellow lighting LED does not glow once the start-button is pressed, then please leave the button and observe whether ... -
Page 20: Cleaning, Disinfection And Maintenance
Compact - Laser CL mini Instructions for use 7 Cleaning, disinfection and maintenance To avoid any danger of infection, the laser point must be disinfected before and after each treatment (and the power-reducing-tip and the bent light conductor). 7.1 Laser, Laser Tip and Adapter for Light tube The laser itself is NOT waterproof and should therefore not be placed in a bath! He must first be carefully pre-cleaned with a woven cloth moistened with a little tap water to remove any dirt. -
Page 21: Waste Management Of Laser And Accessory
9 Warranty Guarantee: All recently manufactured Silberbauer products: 3 years after date of sales, All used products: 1 year. Within the scope of this guarantee we will provide free replacement of all parts which are defective because of material failure or mistake in production or we will repair them. -
Page 22: Laser Inspection
Compact - Laser CL mini Instructions for use 10 Laser inspection The CL-Laser mini must be inspected at regular intervals of 2 years. 10.1 Scope of inspection: 1. Examination of Output Power: Measuring Equipment required: Measuring device for the laser output with a large Si-photo-diode (at least 10 x 10 mm) is well suited for the measurement of every monitoring phase of the laser output and the wave-length of the CL mini Laser. -
Page 23: Inspection Certificate
Compact - Laser CL mini Instructions for use 4. Checking of all accessories Inspection of all accessories by visual inspection for breaks or wear should be done. Also goggles for deep scratches which disturb the view. 10.2 Inspection Certificate To confirm the accurate functioning of the instrument the owner will receive an inspection certificate including its measured power. -
Page 24: Warning Advices And Label Information
Compact - Laser CL mini Instructions for use 12 Warning advices and Label Information : For the Laser there are used different warning labels depending of the model: e.g. for the model CL mini 8 - 658: All other models have the same warning labels with other values for power and wavelength. -
Page 25: Technical Data
Interval for periodical inspection: 2 years (Reference required in accordance with EN 60601-1-2:2015): The Silberbauer Compact Laser CL mini is tested according to the standard EN 60601-1-2:2015. Result: Emission: the limit values according to limit class B have not been exceeded! Rights for technical changes reserved! CL_mini_BED10_e.doc... -
Page 26: Ec Declaration Of Conformity
Compact - Laser CL mini Instructions for use... -
Page 27: Manufacturers Declaration Of Conformity (For Australia)
Compact - Laser CL mini Instructions for use...
