Pixel UTVANT Installation Instructions

Congratulations on the purchase of a new SiriusXM Radio UTV antenna. Here
are instructions on how to install this kit into a UTV. This kit is designed to be
installed on any UTV by using the supplied pipe mounting parts or flush/roof
mounting parts. It is recommended to select a location on your UTV that will
allow the antenna to have maximum clearance from a roof or other objects.
The following instructions show an installation on a pipe and roof allowing for
maximum clearance.
Antenna Installation Tips
•
Install the antenna element with the best line-of-sight for optimal performance
•
Placing the antenna higher on the vehicle is recommended but not mandatory
•
When riding in the northern most parts of the US and Canada, slanting the element southbound a
few degrees will increase the signal strength.
•
Try not to stress the molded connector on the end of the antenna wire
•
Keep the antenna away from heat and electrical sources
Antenna Base Assembly
1. Select the location to install your antenna allowing for maximum clearance.
2. Use the hardware shown in diagram A for this assembly type.
3. Insert the screw and lock washer into the base of the antenna as shown in diagram B.
4. Next install the L bracket and thread the screw through the square nut securing the L bracket as
shown in diagram C.
5. Be sure to tighten the L bracket securely in place.

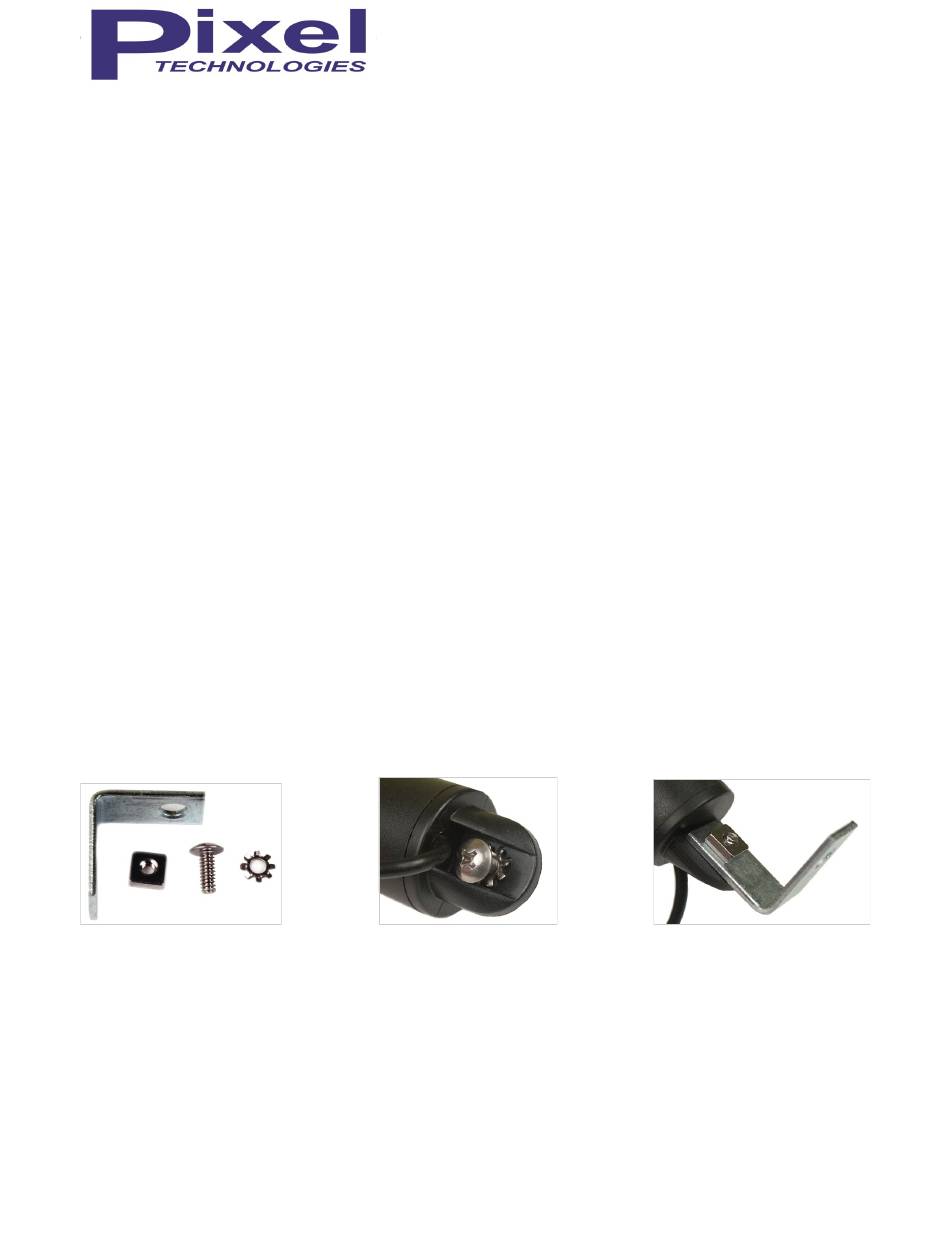

Diagram A
Antenna Wire Installation
1. Run the antenna cable from the antenna either inside the roll cage pipe tubing or along the outside
securing the antenna cable with cable ties (not supplied). Be sure not to over tighten the cable ties
as the stress could cause damage to the antenna wire.
2. Bring the antenna connection to the desired location to install the gooseneck mount and protec-
tive case. It is recommended to leave about 12 inches of play in the cable at the point of installing
the gooseneck mount and case.
Pixel Technologies, Inc. | 800.595.0845 | www.pixelsatradio.com | contactus@pixeltechnologiesinc.com | Page 1
Installation Instructions
SiriusXM Radio UTV Antenna
Diagram B
Model # UTVANT
Package Includes:
(1) SiriusXM UTV Antenna
(1) Rubber Clamp
(1) L Bracket
(1) Tube of Loctite
(1) Mounting Screw
(1) Locking nut
(4) Rubber washers
(1) Rubber cap
Diagram C
