  • Page 1 Technical Handbook/Service manual...

  • Page 2: Revisions

    The information contained in this publication may be updated without advance notice. CareTech AB accepts no responsibility for the use of the contents of this handbook. © 2010 Copyright CareTech AB, Rev C...

  • Page 3: Table Of Contents

    Input A and B ........................9 INSTALLATION ........................10 ..................10 ENERAL INSTALLATION GUIDELINES ......................11 NSTALLATION EXAMPLES 3.1.1 Passage detection ......................11 3.1.2 Position indication ......................12 TECHNICAL DATA ........................13 IMPORTANT INFORMATION ....................13 © 2010 Copyright CareTech AB, Rev C...

  • Page 4: Gustav

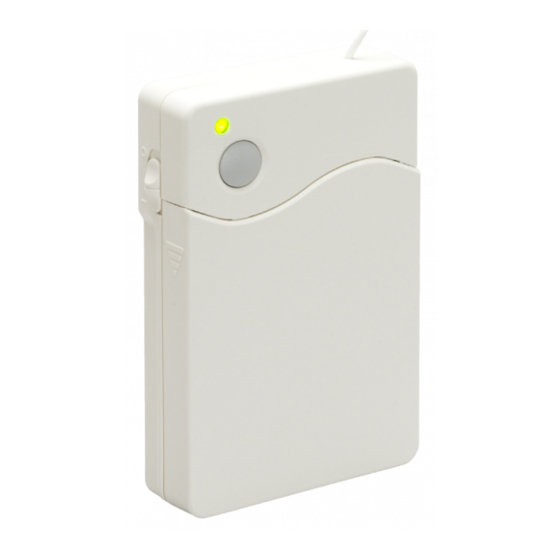

    – Gustav is mounted in a passage (normally a door). The • position-ID of Gustav is set between 900 and 999 which indicate a non allowed passage. Gustav can be set to send the position constantly or first when it is activated by an input or by a magnetic switch. When Elvis receives the position is it up to the alarm trigger to forward the information to the system or the carephone.

  • Page 5: System Overview

    1.1 System overview A complete system typically consists of both passage detection and positioning indication. The orange markers are Gustav beacons configured to be always active. With position ID set between 001 and 899. The units can be wall or roof mounted and there is no need for activation/deactivation by the personnel.

  • Page 6: Gustav Unit Overview

    5. Input B 6. Input A 7. GND 8. GND 1. RS485A 2. RS485B 3. InputA 4. InputB 5. Not connected 6. Not connected 7. V+ 8. GND Magnetic For activation of RFID beacon switch © 2010 Copyright CareTech AB, Rev C...

  • Page 7: Configuration

    2 Configuration Gustav has a list of parameters that can be set by the programming unit 8200. The default programming ID (position2) is 999. Please remember to change position2 if the unit is connected to the system bus since it might interfere with other units during programming.

  • Page 8: List Of Parameters

    This parameter sets the Position-ID of the unit. The input is six character wide (000000-FFFFFF), but the last three is ignored by the system. Allowed ID’s for position indication: 001-899 Allowed ID’s for passage detection: 900-999 Example: Setting the ID to 433 Parameter input: 433000 © 2010 Copyright CareTech AB, Rev C...

  • Page 9: Magnetic Switch Status

    Beacon is active when Input A is connected to GND. Input B is used for temporary deactivation of the RFID-signal from Gustav. In default the RFID-signal is activated and will be temporary deactivated when the input is connected to GND. (Deactivation time, see Parameter 1008) Parameter 1004 –...

  • Page 10: Installation

    2. The green LED on Elvis will now twinkle every time a message is picked up from Gustav. The most significant factor for the coverage area is the placement of Gustav. It can also be slightly reduced by changing parameter “1010” between 0-18 (default value is 10).

  • Page 11: Installation Examples

    Triggered by the magnetic switch. The magnet should be mounted on the door close to the Gustav unit mounted on the frame. The distance between them should be less than 10mm to make sure that the magnetic field is detected by Gustav. The unit can be mounted beside or above the door.

  • Page 12: Position Indication

    0 (Default) 1010 0 (Default) Figure 3. Gustav is active, deactivation as long as input A is connected to GND or for 30 seconds when switch 2 is activated. 3.1.2 Position indication There is no general way of how to mount the Gustav units when setting up a positioning indication system.

  • Page 13: Technical Data

    The information contained here is subject to change without notice. The only warranties for CareTech products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. CareTech shall not be liable for technical or editorial errors or omissions contained herein.
