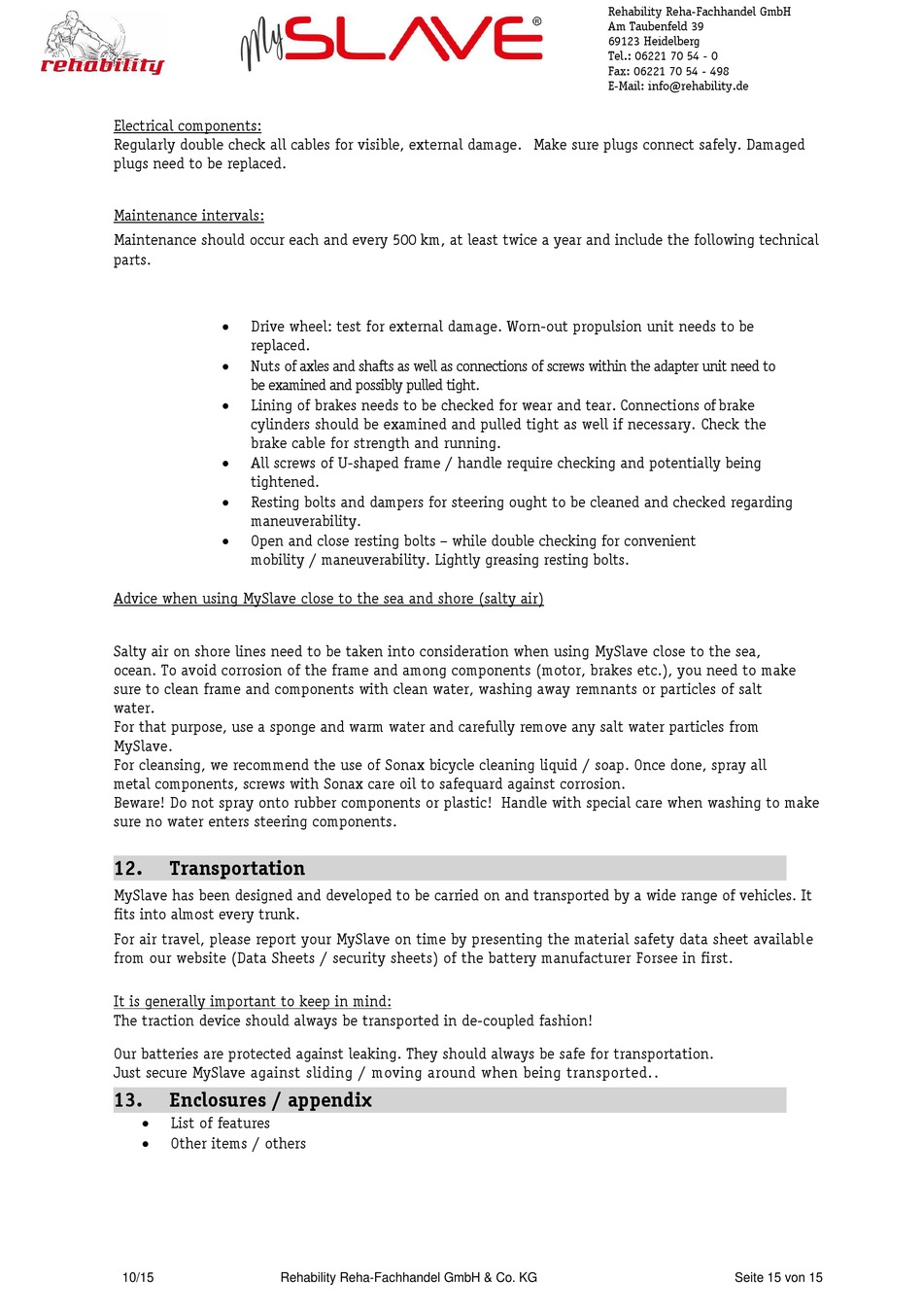

Rehability MySlave Manual page 15

Electrical components:
Regularly double check all cables for visible, external damage. Make sure plugs connect safely. Damaged
plugs need to be replaced.
Maintenance intervals:
Maintenance should occur each and every 500 km, at least twice a year and include the following technical
parts.

Drive wheel: test for external damage. Worn-out propulsion unit needs to be
replaced.

Nuts of axles and shafts as well as connections of screws within the adapter unit need to
be examined and possibly pulled tight.

Lining of brakes needs to be checked for wear and tear. Connections of brake
cylinders should be examined and pulled tight as well if necessary. Check the
brake cable for strength and running.

All screws of U-shaped frame / handle require checking and potentially being
tightened.

Resting bolts and dampers for steering ought to be cleaned and checked regarding
maneuverability.

Open and close resting bolts – while double checking for convenient
mobility / maneuverability. Lightly greasing resting bolts.
Advice when using MySlave close to the sea and shore (salty air)
Salty air on shore lines need to be taken into consideration when using MySlave close to the sea,
ocean. To avoid corrosion of the frame and among components (motor, brakes etc.), you need to make
sure to clean frame and components with clean water, washing away remnants or particles of salt
water.
For that purpose, use a sponge and warm water and carefully remove any salt water particles from
MySlave.
For cleansing, we recommend the use of Sonax bicycle cleaning liquid / soap. Once done, spray all
metal components, screws with Sonax care oil to safequard against corrosion.
Beware! Do not spray onto rubber components or plastic! Handle with special care when washing to make
sure no water enters steering components.
12. Transportation
MySlave has been designed and developed to be carried on and transported by a wide range of vehicles. It
fits into almost every trunk.
For air travel, please report your MySlave on time by presenting the material safety data sheet available
from our website (Data Sheets / security sheets) of the battery manufacturer Forsee in first.
It is generally important to keep in mind:
The traction device should always be transported in de-coupled fashion!
Our batteries are protected against leaking. They should always be safe for transportation.
Just secure MySlave against sliding / moving around when being transported..
13. Enclosures / appendix

List of features

Other items / others
10/15 Rehability Reha-Fachhandel GmbH & Co. KG
Rehability Reha-Fachhandel GmbH
Am Taubenfeld 39
69123 Heidelberg
Tel.: 06221 70 54 - 0
Fax: 06221 70 54 - 498
E-Mail: info@rehability.de
Seite 15 von 15
