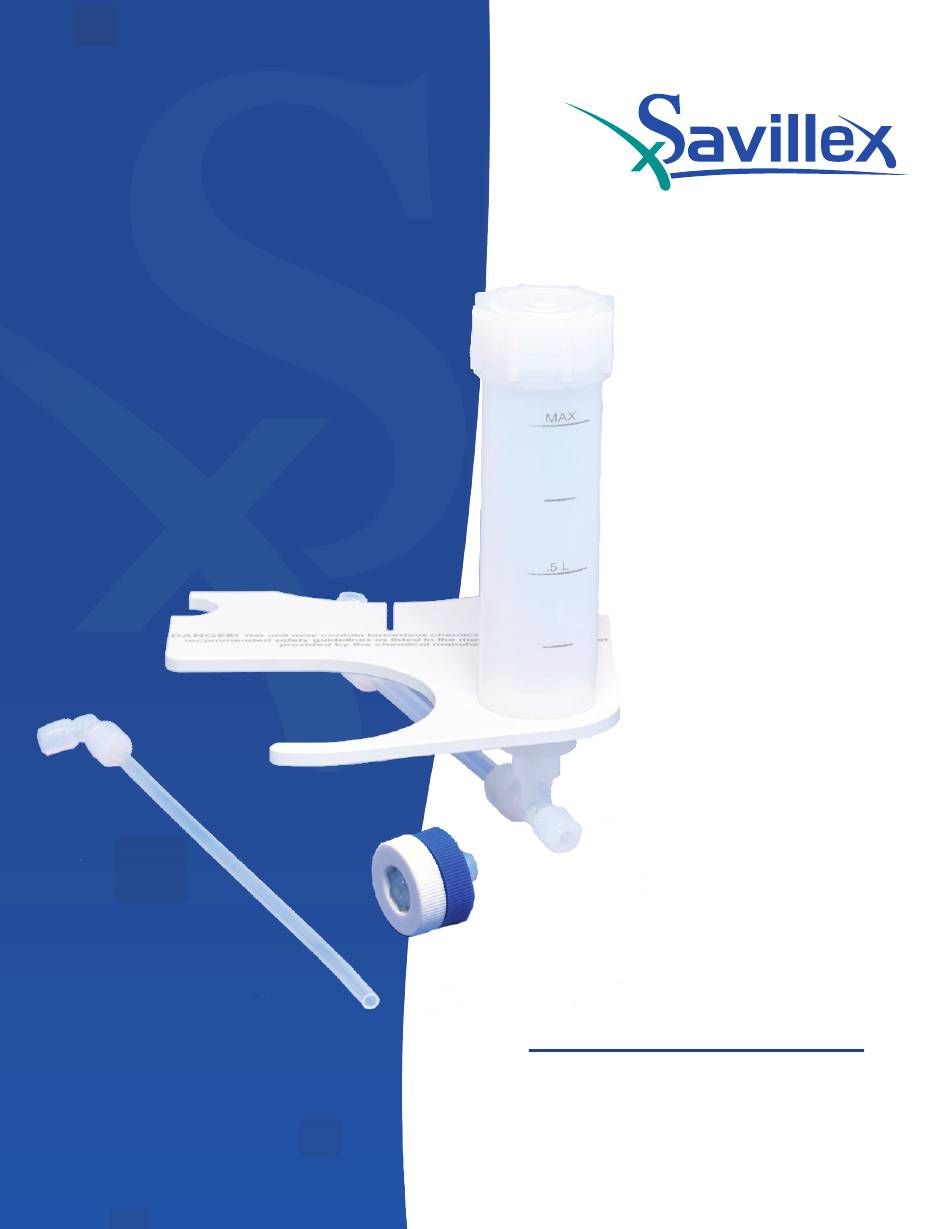

- Page 1 DST-1000 Acid Purification System Upgrade Instructions...
- Page 2 The following safety information should be read carefully prior to installing the upgrade kit for the DST-1000. Installation of the DST-1000 upgrade kit may expose the user to residual acid that has previously been in the DST-1000. Take appropriate measures and always wear recommended personal protective equipment during the installation process.
- Page 3 REMOVE ALL RESIDUAL ACID FROM STILL PRIOR TO DISASSEMBLY It is highly recommended that all residual acid is removed from the DST-1000 prior to the installation of the upgrade kit. This involves refluxing with deionized water following the steps below: 1.
- Page 4 5. Disconnect distillate tubing, and remove the collection bottle from bracket and set aside. These items will be needed for the upgraded DST-1000. 6. Remove the bottle bracket. The bottle bracket is no longer needed for the new DST-1000 and can be discarded.
- Page 5 Tools Required: Adjustable Wrench 1. With the DST-1000 on its side, install the PTFE-taped ¼” MNPT x 3/8” ferrule elbow drain fitting in the bottom of the still. This elbow drain fitting replaces the elbow drain fitting that was removed in Section 2 (step 8).
- Page 6 If leaks persist, contact Savillex. 4. Drain the deionized water from the stopcock valve and drain tube in the front of the DST-1000. Check for leaks as described in Step 1.
- Page 7 As with the original vent assembly, it is recommended to replace the membrane in the filter vent assembly of the upgraded DST-1000 after every 40 hours of use. Replacement instructions are below. 1. Grasp blue clamp ring while turning white clamp ring counter-clockwise to loosen 2.
- Page 8 Savillex Corporation 10321 West 70th St. | Eden Prairie, MN 55344-3446 USA Phone: 952.935.4100 | Fax: 952.936.2292 Email: info@Savillex.com www.savillex.com SM005 010516...
