  • Page 1 DST-1000 Acid Purification System User’s Manual...

  • Page 2: Table Of Contents

    2.6 Hazards Associated with Connections, Tubing and Containers ............5 2.7 Electrical Hazards ..........................6 2.8 Safety Labeling ..........................6 3.0 About the DST-1000 Acid Purification System ............7 3.1 Visual Identification ........................... 7 3.2 Description ............................7 3.3 Specifications ............................ 8 3.4 Unpacking and Inspection .........................

  • Page 3: Introduction

    The Savillex DST-1000 Acid Purification System (DST-1000) is intended to provide a means of purifying acids or water to a level suitable for use in highly sensitive analytical chemistry applications. The DST-1000 is designed and manufactured to be as simple to use and safe to operate as possible.

  • Page 4: Qualified Users

    ≤ 37% hydrochloric acid (HCl) ≤ 51% hydrofluoric acid (HF) DANGER! The DST-1000 is not approved for use with any other material. Using the DST-1000 with any other material may result in personal injury or property damage. Please observe all appropriate regulations published by government agencies, professional associations, chemical manufacturers and other regulating bodies when working with chemicals.

  • Page 5: Safety Shut-Off

    Ensure the system is in a properly functioning controlled environment (e.g. fume hood). Acid vapor is emitted from the DST-1000 during use. The Unit Employs High Voltage! The DST-1000 must be connected to a grounded conductor. Connect the power cord of the control box to a grounded power source. Chemical Hazard! Chemical hazards associated with the connections, tubing and containers are identical to those noted above.

  • Page 6: Electrical Hazards

    High voltage is present when energized 2.8 Safety Labeling The DST-1000 is designed with safety as a primary consideration. In addition to safety information in this manual, Savillex has labeled and marked the unit to identify model number, operating voltage, wattage,...

  • Page 7: About The Dst-1000 Acid Purification System

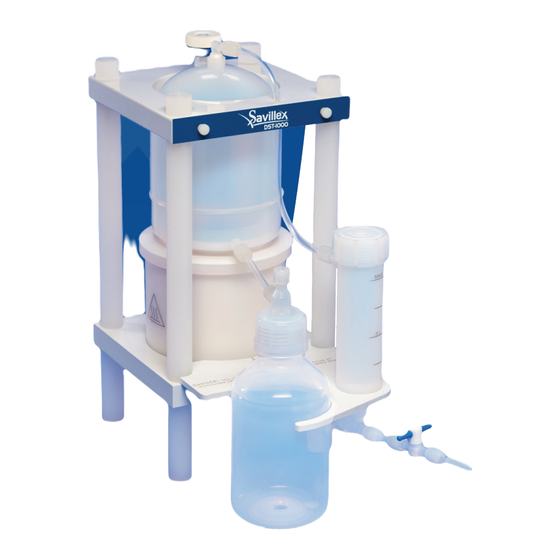

    Fig.1 3.2 Description The DST-1000 is intended for purification of reagent grade acids or water. The main sections of the still are the reservoir and condenser which are molded from PFA. PFA construction minimizes the contamination potential from extractable compounds and also allows for distillation of hydrofluoric acid. Note: THE STILL ASSEMBLY CANNOT BE OPENED.

  • Page 8: Specifications

    Savillex DST-1000 Acid Purification System 3.3 Specifications Power Source (three-wire earth grounded only) #525-1000-100 100 VAC +/- 5%, 50/60 Hz #525-1000-115 115 VAC +/- 5%, 50/60 Hz #525-1000-230 230 VAC +/- 5%, 50/60 Hz #525-1000-230UK UK 3-pin fused plug 230 VAC +/- 5%, 50/60 Hz...

  • Page 9: Unpacking And Inspection

    Note: The DST-1000 was shipped with PFA cap plugs on the (1) DISTILLATE port and (1) TEE FITTING DRAIN port. The top vent on the still condenser was also fitted with a 25 mm PTFE filter membrane. Confirm that all of these components are in place.

  • Page 10: Preparation For Use

    The DST-1000 power control unit is intended for installation outside the fume hood, with the 3 meter power cable passing through a designated port in the hood to the heating jacket connection.

  • Page 11: Installation

    See section 4.1 Recommended Environment. a) Lay the DST-1000 unit on its side and screw the (4) base legs onto the bottom plate. Stand the unit upright.
  • Page 12 Insert one end of the tubing into the remaining opening in the tee fitting in the bottom of the fill tube assembly (It should be facing away from the DST-1000 unit), slide the ferrule nut up to the fitting and finger tighten. Pull slightly on the tubing to make sure the tubing will not accidentally pull out during use.

  • Page 13: Starting Materials

    The red heater light should illuminate. If heater light does not illuminate, contact Savillex or your local representative. m) Turn the control knob back to the OFF position. You are now ready to clean the DST-1000. (Section 4.4) 4.3 Starting Materials...

  • Page 14: Initial Cleaning

    Savillex DST-1000 Acid Purification System 4.4 Initial Cleaning The DST-1000 is constructed of the ultimate material for acid purification. All wetted parts within the still reservoir/condenser are made of PFA. PFA is well known to provide the highest level of chemical resistance and lowest level of ionic contamination.

  • Page 15: Cleaning Of 1000 Ml Purillex™ Pfa Distillate Collection Bottle And Transfer Closure

    Turn the control knob to the OFF position and allow the DST-1000 to cool Drain the contents of the unit by opening the stopcock drain valve and directing the contents into an appropriate waste container.

  • Page 16: Operation

    The DST-1000 will produce a reliable supply of highly purified acid once the cleaning operation has been completed. To achieve the highest level of purity, Savillex recommends using the still for only one type of acid. DANGER! NEVER MIX CHEMICALS WITHIN THE STILL a) Replace the top vent fitting with a fresh 25 mm filter membrane.

  • Page 17: Turn The Power On

    Replace the threaded cap on the fill tube and hand-tighten 5.2 Turn the Power ON a) The DST-1000 is now ready for distillation. Turn the control knob to the desired setting. Approximate distillation rates for water are listed below: 80°C (176°F) to 90°C (194°F) 50 mL/hr 70°C (158°F) to 80°C (176°F)

  • Page 18: Refilling

    5.3 Refilling a) Monitor acid level in the reservoir during operation using the graduation marks on the fill tube. The DST-1000 may produce up to 50 mL per hour varying with the type of starting material and environmental temperature. b) Remove the threaded cap from the graduated filling tube Remove the threaded cap from graduated filling tube slowly to alleviate any internal pressure that may have occurred during distillation process.

  • Page 19: Maintenance, Troubleshooting And Service

    The DST-1000 requires little maintenance to provide a reliable means of producing highly purified acid on a regular basis. The few simple tasks listed below will keep the unit maintained and ensure that the DST-1000 is ready for the next distillation.
  • Page 20 Plug all ports for unit storage or transfer The wetted parts of the DST-1000 are manufactured of 100% PFA which is highly chemical resistant. The support stand of the still is manufactured of polypropylene, which may stain or become slightly discolored upon contact with acid.

  • Page 21: Troubleshooting

    Re-tighten Tube fittings leak You can obtain technical support from your regional Savillex representative or directly from Savillex. Phone: (952) 935-4100 Fax: (952) 936-2292 Email: info@savillex.com Please provide your unit’s serial number with all repair questions or repair orders. The serial number is located on the back of the still.

  • Page 22: Repairs

    Savillex DST-1000 Acid Purification System 7.3 Repairs The Savillex DST-1000 has no user-serviceable parts, except those that can be readily removed and replaced, i.e. nuts, tubing, stopcock, etc. Specifically, do not attempt to service the heating jacket. Any modification to the still and heating jacket will void the warranty.
  • Page 23 Savillex DST-1000 Acid Purification System Item Description Part Number Vent Elbow 750-E4-4N 25 mm Vent Assembly 740-100750 Vent Tubing (30 cm) 740-200040 Assembly Fastener 740-400566 Nameplate 740-400603 Top Plate 740-400569 Nameplate Fastener 740-200157 PFA Still Vessel 740-100642 1/4" Knurled Ferrule Nut 750-FN4 1/4"...

  • Page 24: Appendix

    Savillex warrants its DST-1000 Acid Purification System against defects in materials and workmanship for 90 days from the time of shipment to the end-user. The DST-1000 is expressly intended for preparation of high purity reagents through the sub-boiling distillation process. Savillex makes no claim for specific levels of...

  • Page 25: Electrical Schematic

    Savillex DST-1000 Acid Purification System 8.2 Electrical Schematic - 25 -...

  • Page 26: Declaration Of Ce Conformity

    Savillex DST-1000 Acid Purification System 8.3 Declaration of CE Conformity The Undersigned, representing the manufacturer Savillex Corporation 10321 West 70 Eden Prairie, MN 55344 USA 525-1000-100, 525-1000-115, Herewith declare that the products: 525-1000-230, 525-1000-230UK are in conformity with the essential requirements of the following EC Directive(s) when installed in...
  • Page 27 Savillex Corporation 10321 West 70th St. | Eden Prairie, MN 55344-3446 USA Phone: 952.935.4100 | Fax: 952.936.2292 Email: info@Savillex.com www.savillex.com SM001 100516...
