Flash Furniture GM-402003 Assembly Instructions

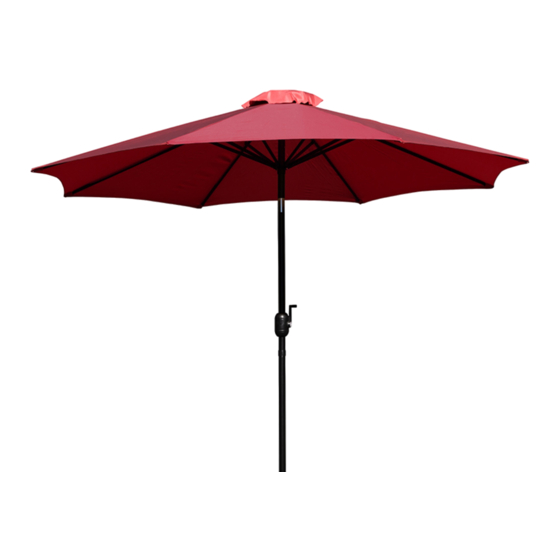

9 ft round umbrella

Thank you for your purchase!

9 FT Round Umbrella

ASSEMBLY INSTRUCTIONS

Before You Begin:

Please identify all component parts and hardware pieces required before your begin. Carefully remove all of the

components from the packaging and set aside for assembly. Assemble on a soft surface to prevent scratching

during assembly.

Caution:

Tighten all components securely before use. Failure to do so many result in personal injury.

DO NOT use any sharp objects to open plastic wrapped components as damage to product or components may

result.

Warning:

CHOCKING HAZARD -Small Parts. Adult Assembly Required.

DO NOT ALLOW CHILDREN TO CLIMB ON FURNITURE

.....................................................................................

Customer Service email:

CustomerExperience@belnickinc.com

Phone:866-552-2810

GM-402003-RED-GG | GM-402003-TAN-GG

Table of Contents

Need help?

Do you have a question about the GM-402003 and is the answer not in the manual?

Page 1 DO NOT use any sharp objects to open plastic wrapped components as damage to product or components may result. Warning: CHOCKING HAZARD -Small Parts. Adult Assembly Required. DO NOT ALLOW CHILDREN TO CLIMB ON FURNITURE ..................Customer Service email: CustomerExperience@belnickinc.com Phone:866-552-2810 GM-402003-RED-GG | GM-402003-TAN-GG...
Page 2 PARTS 1 PC 1 PC 1 PC STEPS PRESS THE BUTTON TO TILT UMBRELLA POSITION DO NOT OPEN OR CLOSE UMBRELLA WHEN TILTED ..................Thank you for your purchase!
Page 3 Thank you for your purchase! 19.3 Inch Umbrella Base ASSEMBLY INSTRUCTIONS Before You Begin: Please identify all component parts and hardware pieces required before your begin. Carefully remove all of the components from the packaging and set aside for assembly. Assemble on a soft surface to prevent scratching during assembly.
Page 4 PARTS 1 PC 1 PC 1 PC 3 PCS 1 PC STEPS Adapter tips: Step 1： Step 2： Small: φ30-φ35mm Medium φ40-φ45mm Large: φ48-φ50mm Embed (E) in (C), please make sure the adapter(E) is suitable for Turn (B) on its side and insert (A) into the hole. the umbrella pole diameter, remove the smaller part (E).
