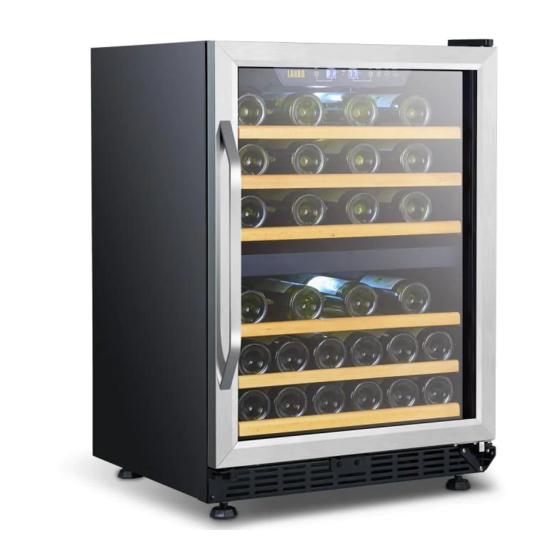

- Page 1 LANBO USER MANUAL FOR MODEL: LW28D/LW46D/LW72D/LW142D/LW165D/LW306D LB36BD/LW3370B LW33S/LW52S/LW155S/LW177S/LW321S LW133DD/LW162DD/LW144T LB80BC/LB148BC...
- Page 2 Important Tips for Product Use. BEFORE USE: 1. After unpacking and inspecting your new Lanbo appliance, allow to sit and stabilize for 24 hours before connecting to a power source. This will reduce the possibility of a malfunction in the cooling system from handling during transportation 2.
- Page 3 PRODUCT REGISTRATION/WARRANTY: LANBO Appliances offers a 1 year parts and labor warranty, along with a 3 Year warranty on the compressor. Register your product on LANBO’s official website www.lanboappliances.com for an extended 12 month warranty and priority customer service support.
- Page 4 FOR MODELS: LW46D/LW72D/LW142D/LW165D/LW306D LW52S/LW155S/LW177S/LW321S LW133DD/LW162DD/LW144T LB148BC PLEASE NOTE: Included in Plastic Bag - upper door hinge cover replacement part and LANBO User Manual Please store properly for future use.
-
Page 5: Table Of Contents
CONTENTS Important Safety Instructions ---------------------------------------- 6 Diagram of Product ---------------------------------------------------- 8 Installation Instructions ----------------------------------------------- 14 Operation Instructions ------------------------------------------------ 15 Care and Maintenance ----------------------------------------------- 26 Troubleshooting -------------------------------------------------------- 28 Product Specifications ------------------------------------------------ 29 Warranty ------------------------------------------------------------------ 32... -
Page 6: Important Safety Instructions
Never clean appliance parts with flammable liquids. Fumes can create a fire hazard or explosion. ⚫ If wine cooler stops working, please contact LANBO customer service department or certified repair technician to inspect the appliance. Avoid injury or accident, and never attempt to repair yourself. - Page 7 • Place the cooler close to a direct power source or outlet. • Once wines have been stored inside the cooler, avoid moving. • Choose a location for your cooler that isn’t too cold . The ambient room temperature should be above 50°F .
-
Page 8: Diagram Of Product
Appearance and structure of the product may be different from the manual, however, this does not affect the normal use of the product. 2. Diagram of Product 1.LW33S/LW52S/LW155S/LW177S/LW321S structure diagram： (1) Control Panel (2) Evaporator Fan (3) Carbon Filter (4) Sensor (5) Full Wooden Shelf (6) Heating Fan (7) Small Wooden Shelf (8) Door Support Bracket (9) Adjustable Feet... - Page 9 Door With Lock (12) Door Seal (13) Handle (14) Lock Hook (15) Lower Door Hinge (16) Front Vent 2. LW28D/LW46D/LW72D/LW142D/LW165D/LW306D structure diagram: (1) Control Panel (2) Carbon Filter (3) Evaporator Fan (4) Upper Sensor (5) Full Wooden Shelf (6) Baffle Plate (7) Heating Fan (8) Lower Sensor (9) Small...
- Page 10 (11) Adjustable Feet (12) Upper Door Hinge (13) Glass Door With Lock (14) Door Seal (15) Handle (16) Lock Hook (17) Lower Door Hinge (18) Front Vent 3. LW133DD/LW162DD structure diagram： (1) Control Panel (2) Evaporator Fan (3) Carbon Filter (4) Full Wooden Shelf (5) Upper Sensor (6) Baffle Plate...
- Page 11 Middle Door Hinge (15) Glass door with handle/gasket (16) Lower Door Hinge (17) Adjustable Feet (18) Front Vent 4. LW144T structure diagram： (1) Upper Control Panel (2) Carbon Filter (3) Full Wooden Shelf (4) Upper Sensor (5) Middle Control Panel (6) Middle Fan (7) Full Wooden Shelf Middle Sensor (9) Baffle Plate (10) Rear Air-Duct Board (11) Lower Sensor (12) Small Wooden Shelf (13) Door Support Bracket...
- Page 12 (14) Adjustable Feet (15) Upper Door Hinge (16) Glass Door With Lock (17) Door Seal (18) Handle (19) Lock Hook (20) Lower Door Hinge (21) Front Vent 5.LB80BC /LB148BC structure diagram： (1) Control Panel (2) Wire Shelf (3) Glass Shelf (4) Small Wooden Shelf (5) Lock Hook (6) Door Support Bracket (7) Adjustable Feet (8) Upper Door Hinge (9) Glass Door With Lock/Gasket (10) Handle (11) Lower Door Hinge...
- Page 13 6.LB36BD/LW3370B structure diagram: (1) Left Upper Door Hinge (2) Left Control Panel (3) Large Wire Shelf with Wooden Front (4) Left Glass Door with Lock/Gasket & Handle (5) Small Wire Shelf with Wooden Front (6) Left Lower Door Support (7) Front Vent (8) Right Upper Door Hinge (9) Right Control Panel (10) Wire Shelf (11) Left Glass Door with Lock/Gasket &...
-
Page 14: Installation Instructions
3.Installation Instructions ➢ Before Using Your Wine Cooler / Beverage Cooler ⚫ Remove the exterior and interior packing. ⚫ Before connecting the wine cooler / beverage cooler to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. -
Page 15: Operation Instructions
5. Operation Instruction 4.1 Control Panel Below (LW33S/LW52S/LW155S/LW177S/ LW321S/LB80BC/LB148BC)： ◎ Display Windows · RUN light：Indicator light of compressor working. While the compressor operating, the red light is on. While it stops operating, the red light is off. ·SETTING：Display of the temperature you set. The range of temperature setting is 0℃~37℃... - Page 16 4.2 Control Panel Below(LB36BD)： ◎ Display Windows · RUN light： Indicator light of compressor working. While the compressor is operating, the red light is on. When it stops operating, the red light is off. ·CHAMBER： Display of the setting and actual temperature inside the cabinet; The range is 0℃~37℃...
- Page 17 4.3 Control Panel Below(LW3370B/LW133DD/LW162DD)： ◎ Display Windows ·CHAMBER： Display of the setting and actual temperature inside the cabinet; The range is 0℃~37℃ or 32℉~99℉. ·℃/℉ light：When the ℃ light is on, it indicates Celsius temperature; When the ℉ light is on, it indicates Fahrenheit temperature. ◎...
- Page 18 4.4 Control Panel Below ( only for model LW144T): (Upper Control Panel) ◎ Display Windows •CHAMBER: Display of the actual temperature of the upper chamber. The range is 0℃~37℃ or 32℉~99℉. ◎ Button Operation “+” “–” Button: Temperature setting button. Each time you press the button “+” button the temperature increased 1℃...
- Page 19 ◎ Button Operation • “+” “–” Button: Temperature setting button; If you need setting the temperature of middle chamber, press the button one time, the screen of middle chamber will be flashing, then press “+” or “-” to set the temperature of middle chamber, setting range is between 5℃~12℃...
- Page 20 4.5 Control Panel Below (LW28D/LW46D/LW72D/LW142D/ LW165D/LW306D): ◎ Display Windows · RUN light：Indicator light of compressor working. While the compressor operating, the red light is on. While it stops operating, the red light is off. · UPPER CHAMBER：Display of the actual temperature of the upper chamber. The range is 0℃~37℃...
- Page 21 Please use the wine cooler under the T type of climate. The temperature inside the cabinet will fluctuate and influence the refrigerating effect if the surrounding temperature is too high or too cold. ◎ Shelf Change LW28D, LW46D,LW72D,LW142D,LW165D, LW306D, LW133DD,LW162DD,LW33S,LW52S,LW155S,LW177S,LW321S, LW144T Follow the diagram below to remove or change the adjustable shelves First, remove all wines from the shelves and pull shelf out to the limit.
- Page 22 ◎ Shelf Change LB80BC, LB148BC, LB36BD, LW3370B Pull out the wire shelf, make the cove position toward to the pillar at two sides of the cabinet, then lift up and pull out the wire shelf. Pull out the glass shelf, make the cove position toward to the pillar at two sides of the cabinet, then lift up and pull out the glass shelf.
- Page 23 Placement and storage of wines Several common layouts of wines: Your cabinet was designed to store a maximum number of bottles adequately. The shelves are designed to accommodate wines uniformly. The best temperature for red wines is 52-64℉；For white wines is 43-54℉； The temperature range of our wine coolers can be set between 41-64℉.
- Page 24 ◎ Reversing the door swing of your appliance (only suitable for model LW46D,LB148BC,LW72D,LW142D,LW165D,LW52S,LW155S, LW177S, LW144T) The unit is delivered to you with the door opening from the left side (hinge on right side). The door of this appliance is capable of opening from either the left or right side.
- Page 25 NOTE: All parts removed must be saved to allow the door swing to be reversed 1.Use the sharp tools to pry open the decoration nail on the top of the cabinet and the cap of door spindle carefully. (Fig 1) 2.
-
Page 26: Care And Maintenance
3.Remove the screw of lower door hinge and the left side screw of the front vent (Fig 3); and then install the lower door hinge at the designated position on the opposite side.(Fig 4) 4.Remove the screw of door handle, then remove the bottom screw of left side of the door and remove the lower supporter of the door(Fig 5);... - Page 27 ➢ Power Failure ⚫ Most power failures are corrected within a few hours and will not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.
-
Page 28: Troubleshooting
6. Troubleshooting You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the service. PROBLEM POSSIBLE CAUSE SOLUTION Not plugged in Press ON/OFF The appliance is turned OFF at the control... -
Page 29: Product Specifications
Use low heat on a hair dryer to make the door seal take The door gasket does not seal properly shape. 7. Product Specifications MODEL NO. LB80BC LW28D LB148BC LW46D LB36BD VOLUME 2.83 CF ( 80 Liter ) 2.83 CF ( 80 Liter ) 5.79 CF ( 164 Liter ) - Page 30 5℃~18℃ or 41℉ 5℃~12℃ or 5℃~12℃ or ~64℉ for the left TEMPERATURE 3℃~18℃ or 41℉~54℉ 3℃~18℃ or 37 41℉~54℉ zone ℉~64℉ RANGE 37℉~64℉ 12℃~18℃ or 12℃~18℃ or 4℃~10℃ or 39℉ 54℉~64℉ 54℉~64℉ ~50℉ for the right zone NET WEIGHT 82 lbs (37 KGS) 86 lbs (39 KGS) 106 lbs (48 KGS) 117 lbs (53 KGS)
- Page 31 AMBIENT 32 - 100 °F 32 - 100 °F 32 - 100 °F 32 - 100 °F 32 - 100 °F TEMPERATURE 5℃~18℃ or 41℉ 5℃~12℃ or 5℃~12℃ or 5℃~12℃ or 5℃~12℃ or ~64℉ for the left TEMPERATURE 41℉~54℉ 41℉~54℉ 41℉~54℉...
-
Page 32: Warranty
United States of America. And, if your product was purchased at any 3rd party retailer and not directly from LANBO, we do not offer an extended warranty policy. You must contact the retailer of purchase directly. In the event your retailer does not offer an extended warranty plan, we recommend you contact a third party warranty provider.
