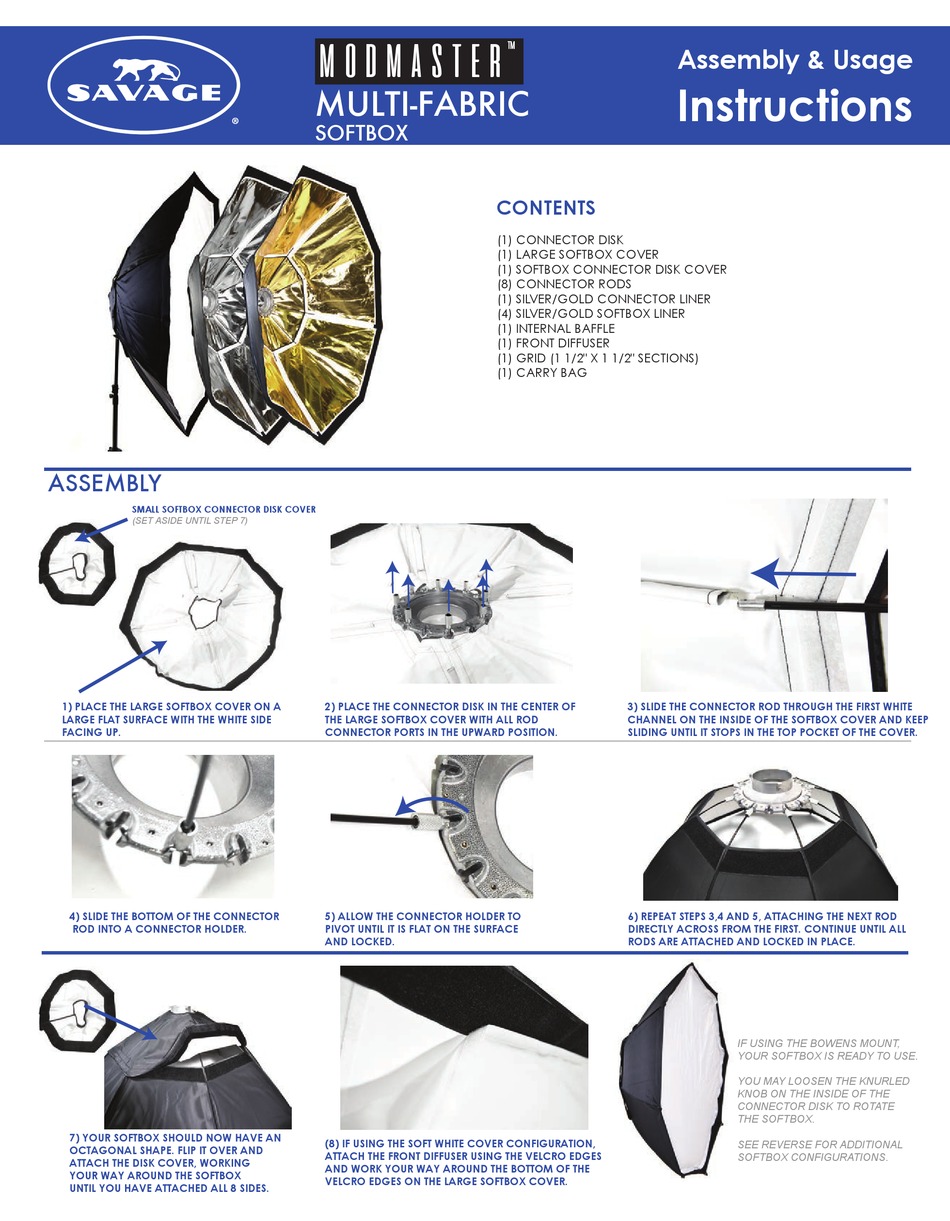

Savage MODMASTER MULTI-FABRIC SOFTBOX Assembly & Usage Instructions

ASSEMBLY
SMALL SOFTBOX CONNECTOR DISK COVER
(SET ASIDE UNTIL STEP 7)
1) PLACE THE LARGE SOFTBOX COVER ON A
LARGE FLAT SURFACE WITH THE WHITE SIDE
FACING UP.
4) SLIDE THE BOTTOM OF THE CONNECTOR
ROD INTO A CONNECTOR HOLDER.
7) YOUR SOFTBOX SHOULD NOW HAVE AN
OCTAGONAL SHAPE. FLIP IT OVER AND
ATTACH THE DISK COVER, WORKING
YOUR WAY AROUND THE SOFTBOX
UNTIL YOU HAVE ATTACHED ALL 8 SIDES.
MODMASTER
MULTI-FABRIC
SOFTBOX
2) PLACE THE CONNECTOR DISK IN THE CENTER OF
THE LARGE SOFTBOX COVER WITH ALL ROD
CONNECTOR PORTS IN THE UPWARD POSITION.
5) ALLOW THE CONNECTOR HOLDER TO
PIVOT UNTIL IT IS FLAT ON THE SURFACE
AND LOCKED.
(8) IF USING THE SOFT WHITE COVER CONFIGURATION,
ATTACH THE FRONT DIFFUSER USING THE VELCRO EDGES
AND WORK YOUR WAY AROUND THE BOTTOM OF THE
VELCRO EDGES ON THE LARGE SOFTBOX COVER.
™
CONTENTS
(1) CONNECTOR DISK
(1) LARGE SOFTBOX COVER
(1) SOFTBOX CONNECTOR DISK COVER
(8) CONNECTOR RODS
(1) SILVER/GOLD CONNECTOR LINER
(4) SILVER/GOLD SOFTBOX LINER
(1) INTERNAL BAFFLE
(1) FRONT DIFFUSER
(1) GRID (1 1/2" X 1 1/2" SECTIONS)
(1) CARRY BAG
3) SLIDE THE CONNECTOR ROD THROUGH THE FIRST WHITE
CHANNEL ON THE INSIDE OF THE SOFTBOX COVER AND KEEP
SLIDING UNTIL IT STOPS IN THE TOP POCKET OF THE COVER.
6) REPEAT STEPS 3,4 AND 5, ATTACHING THE NEXT ROD
DIRECTLY ACROSS FROM THE FIRST. CONTINUE UNTIL ALL
RODS ARE ATTACHED AND LOCKED IN PLACE.
Assembly & Usage
Instructions
IF USING THE BOWENS MOUNT,
YOUR SOFTBOX IS READY TO USE.
YOU MAY LOOSEN THE KNURLED
KNOB ON THE INSIDE OF THE
CONNECTOR DISK TO ROTATE
THE SOFTBOX.
SEE REVERSE FOR ADDITIONAL
SOFTBOX CONFIGURATIONS.
