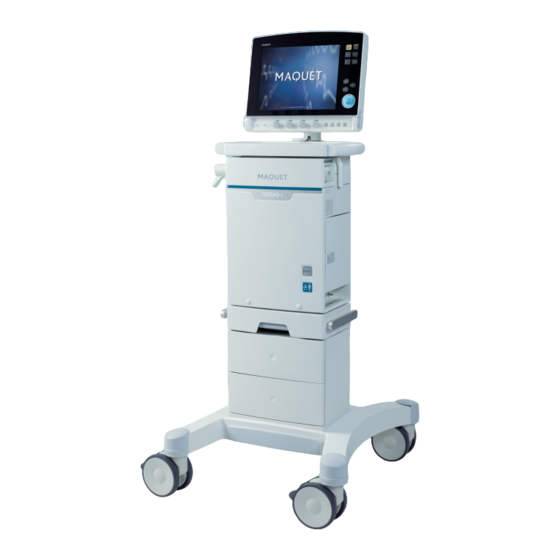

  • Page 1 User's Manual VENTILATION SERVO-i/s CLEANING AND MAINTENANCE...
  • Page 3 TABLE OF CONTENTS TABLE OF CONTENTS Introduction Routine cleaning Maintenance SERVO-i/s, User's Manual English language 1.15...
  • Page 4 | 1 | Introduction 1 INTRODUCTION TABLE OF CONTENTS Introduction Warnings, Cautions, and Important Symbols General information Wall diagrams SERVO-i/s, User's Manual English language 1.15...
  • Page 5 Important: Indicates information intended to help you operate the equipment or its Unless otherwise stated, the information in connected devices easily and conveniently. this User´s Manual is valid for all SERVO-i/s Ventilator Systems. 1.3 SYMBOLS Here you will find the information needed to...
  • Page 6 Important: Follow your hospital‘s guidelines for handling infectious material when handling any part of the SERVO-i/s ventilator system. If possible, cleaning should be performed immediately after use and always before disinfection/sterilization. Blood or other residues should not be allowed to dry onto the devices.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS Cleaning/disinfection procedures - a summary Preparations and dismantling Wiping and discarding Disinfection procedures Sterilization procedures (not recommended) Assembling SERVO Ultra Nebulizer cleaning SERVO-i NAVA system cleaning SERVO CO analyzer cleaning 2.10 Accessories SERVO-i/s, User's Manual English language 1.15...

  • Page 8: Cleaning/Disinfection Procedures - A

    Wipe off and discard filter, see page 12. Assemble There are two disinfection procedures for the expiratory cassette and associated parts, D1 and D2. In D1 (recommended) a Washer-Disinfector (EN-ISO-15883-1) is used, and in D2 a disinfectant is used. SERVO-i/s, User's Manual English language 1.15...
  • Page 9 Sterilization is normally not necessary for the expiratory cassette, as it is not an invasive instrument, but when applied, use validated processes only. See further instructions about autoclaving on page 17. SERVO-i/s, User's Manual English language 1.15...

  • Page 10: Preparations And Dismantling

    User Interface. tilt it upwards and remove. - Disconnect the ventilator from the power and gas supply. - Disconnect any optional equipment from the power supply and from the ventilator. SERVO-i/s, User's Manual English language 1.15...
  • Page 11 Avoid contact with electrical connectors. Important: The expiratory cassette can be exchanged between different SERVO-i/s ventilator systems. The ventilator may be used immediately* by connecting a clean expiratory cassette.

  • Page 12: Wiping And Discarding

    | 2 | Routine cleaning 2.3 WIPING AND DISCARDING CAUTION: Do not immerse battery, CO analyzer, or Y sensor module (SERVO-i only) in any fluid. Dismantle Wipe off/discard 2. Discard disposable items: - Servo Duo Guard viral/bacterial filter Rinse - Servo Humidifier/HME...
  • Page 13 Rinse Washer- Disinfectant Disinfector Rinse Assemble If rinsing before disinfection is not included in the washer disinfector program: - Rinse the parts thoroughly in water (<35°C/95°F). - Let the water flow through the parts. SERVO-i/s, User's Manual English language 1.15...

  • Page 14: Disinfection Procedures

    Pre-use check. Notes: The water pressure in the washer-disinfector should not exceed 1.5 bar. The maximum water flow should not exceed 10 l/min. The water must have free passage through the cassette. SERVO-i/s, User's Manual English language 1.15...
  • Page 15 Important: Mineral deposits from damaged. disinfectant on the expiratory cassette affect the function. It is important to rinse the expiratory cassette thoroughly. Residues from chemicals can affect the patient, cause leakage and extra stress on the material. SERVO-i/s, User's Manual English language 1.15...
  • Page 16 There are several drying alternatives for the then: expiratory cassette: - Run the cassette in a SERVO-i/s ventilator - Carefully shake/tilt the cassette (5-7 times), with a test lung for 10 minutes, or - Dry the cassette in room air (if no drying - Drying cabinet 1 hour in maximum 70°C...

  • Page 17: Sterilization Procedures

    2.5.3 DRYING BEFORE AUTOCLAVING Before placing the expiratory cassette in an autoclave, make sure that no water remains inside the cassette. For drying instructions, see page 16. SERVO-i/s, User's Manual English language 1.15...

  • Page 18: Assembling

    For more information, please refer to the SERVO-i/s User's Manual. If the Pre-use check fails: - Carefully shake/tilt the cassette (5-7 times). - Run the cassette in a SERVO-i/s ventilator CLICK with a test lung for 10 minutes. - Re-do the Pre-use check.

  • Page 19: Servo Ultra Nebulizer Cleaning

    Cleaning should be done after each patient or according to hospital routine. Perform a function test of the SERVO Ultra Nebulizer after the cleaning. Refer to the SERVO-i/s User's Manual. Preparation Wipe off/discard Disconnect the Servo Ultra Nebulizer from the ventilator.
  • Page 20 1. Let the T-piece and nipples soak in a disinfectant such as - Cidex OPA - Hexanios G+R - Aniosyme DD1 - Gigazyme Plus Important: Follow the disinfectant manufacturer’s recommendations and instructions. 2. Rinse the T-piece and nipples thoroughly in water (<35°C/95°F). SERVO-i/s, User's Manual English language 1.15...

  • Page 21: Servo-I Nava System Cleaning

    Note: In case of more contaminated - Check the SERVO Ultra Nebulizer for surfaces, use ethyl alcohol (70%) or leakage (Pre-use check, SERVO-i/s User's isopropyl alcohol (70%). Avoid contact with Manual). electrical contacts. Discard the Edi catheter. The Edi catheter is for single patient use only.

  • Page 22: Servo Co

    - Wipe the Capnostat sensor with a soft cloth moistened in disinfectant (Cidex OPA or isopropyl alcohol 70%). - After cleaning, wipe the Capnostat sensor with a water-dampened clean cloth. - The Capnostat sensor windows must be dried after cleaning. SERVO-i/s, User's Manual English language 1.15...
  • Page 23 - Let the adapter soak in Cidex OPA solution. - Rinse the adapter thoroughly in distilled water. - Before reusing the adapter, the windows must be dry and wiped off. Important: Follow the disinfectant manufacturer’s recommendations and instructions. SERVO-i/s, User's Manual English language 1.15...
  • Page 24 Refer to the cleaning routines in the operating manual for the Fischer & Paykel Humidifier. Aeroneb-Pro (Aeroneb Professional Nebulizer system) Refer to the cleaning routines in the operating manual for the Aeroneb-Pro (Aeroneb Professional Nebulizer system). SERVO-i/s, User's Manual English language 1.15...
  • Page 25 Maintenance | 3 | 3 MAINTENANCE TABLE OF CONTENTS Preventive maintenance sensor cell Extended cleaning of inspiratory channel Accessories SERVO-i/s, User's Manual English language 1.15...

  • Page 26: Preventive Maintenance

    | 3 | Maintenance 3.1 PREVENTIVE MAINTENANCE 3.3 O CELL MAQUET recommends that the equipment is inspected regularly. A preventive maintenance, according to corresponding chapter in the Service manual, must be performed by authorized personnel at least once every year as long as the unit is not used more than normal.
  • Page 27 - Lift the handle and fold it over the Expiratory cassette. - Lift the locking handle and pull out the patient unit. - Turn the bayonet screw one quarter of a turn to release. - Lift off the cover. SERVO-i/s, User's Manual English language 1.15...
  • Page 28 - Lower the locking catch. - Ensure that the new rubber seal is intact, then firmly put in a new bacterial filter. SERVO-i/s, User's Manual English language 1.15...
  • Page 29 | 3 | - Angle up the handle and push it down in position. - Connect the O cell connector. - Perform a Pre-use check, see SERVO-i - Put the O cell in position. User's Manual. - Close the locking catch.

  • Page 30: Extended Cleaning Of Inspiratory Channel

    - Disconnect the O sensor and carefully unlock the latches. - Lower the locking catch. - Lift the O sensor out of position. - Disconnect the O cell connector and lift out the O cell. SERVO-i/s, User's Manual English language 1.15...
  • Page 31 Discard the filter to hazardous waste. 3.4.3 DISINFECTION/STERILIZATION PROCEDURES - Put the connector muffs in position. Clean the inspiratory channel and tube the same way as the expiratory cassette. See page 7. SERVO-i/s, User's Manual English language 1.15...
  • Page 32 Make sure the latches are locked in position. 3.4.5 INSERT THE O CELL/O SENSOR Insertion of O cell - Put the O sensor in position. - Connect the O cell connector and put the cell in position. SERVO-i/s, User's Manual English language 1.15...

  • Page 33: Accessories

    29. - Note on a log sheet that an extended cleaning of the inspiratory channel has been performed. - Perform a Pre-use check (see SERVO-i/s User's Manuals). Important: The accuracy of the measurement is dependent of the quality (oxygen content) of supplied gases during Pre-Use Check.
  • Page 34 | 3 | Maintenance SERVO-i/s, User's Manual English language 1.15...
