mikroElektronika FM Click Quick Manual

FM click
1. Introduction

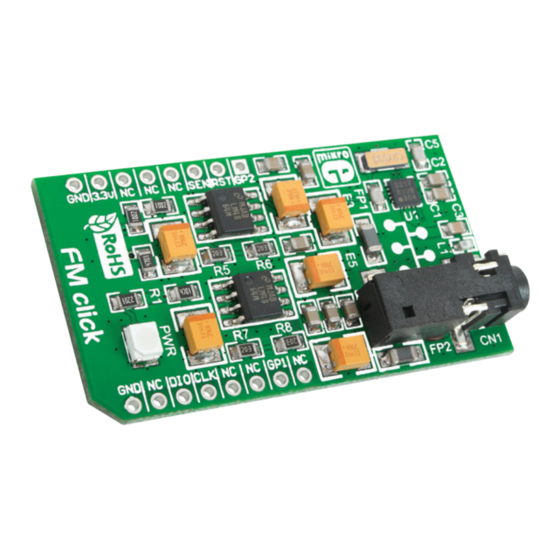

FM Click is an accessory board in
™
mikroBUS
form factor. It's a compact and
™
easy solution for adding broadcast FM radio
tuner to your design. It features Si4703
radio tuner, two LM4864 audio amplifiers
as well as stereo audio connector. FM
Click communicates with the target board
™
microcontroller via mikroBUS I C (SDA,
™ 2
SCL), INT, RST, CS and AN lines. The board
is designed to use 3.3V power supply only.
LED diode (GREEN) indicates the presence
of power supply.
Arrow.com.
Downloaded from

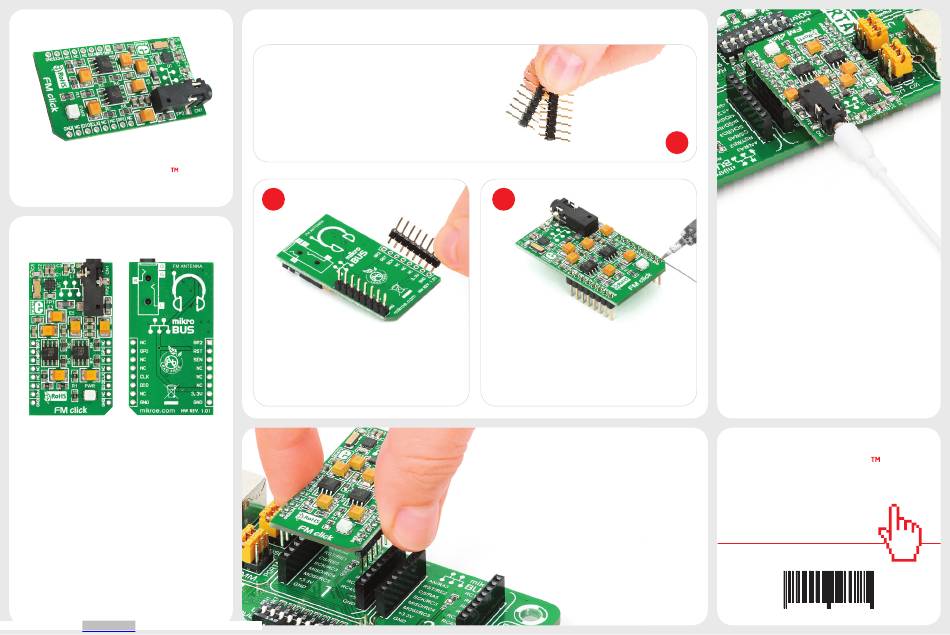

Before using your click board™, make sure
to solder 1x8 male headers to both left
and right side of the board. Two 1x8 male
headers are included with the board in
the package.
2
Turn the board upside down so that
bottom side is facing you upwards. Place
shorter parts of the header pins in both
soldering pad locations.
FM
2. Soldering the headers
3
Turn the board upward again. Make sure
to align the headers so that they are
perpendicular to the board, then solder the
pins carefully.
3. Plugging the board in
Once you have soldered the headers your
board is ready to be placed into desired
mikroBUS™ socket. Make sure to align the
cut in the lower-right part of the board
with the markings on the silkscreen at the
mikroBUS™ socket. If all of the pins are
aligned correctly, push the board all
1
4. Essential features
FM Click™ with it's
FM radio tuner (from antenna input to stereo
audio output). It supports worldwide FM
band (76 – 108 MHz). The board contains
automatic frequency and gain control, RDS/
RBDS processor, seek tuning and volume
control. All these features make this board
ideal for MP3 players, portable radios, PDAs,
notebook PCs, portable navigations and
many more.
the way into the socket.
Si4703
IC is a complete
click
BOARD
www.mikroe.com
FM click Manual
ver. 1.01
