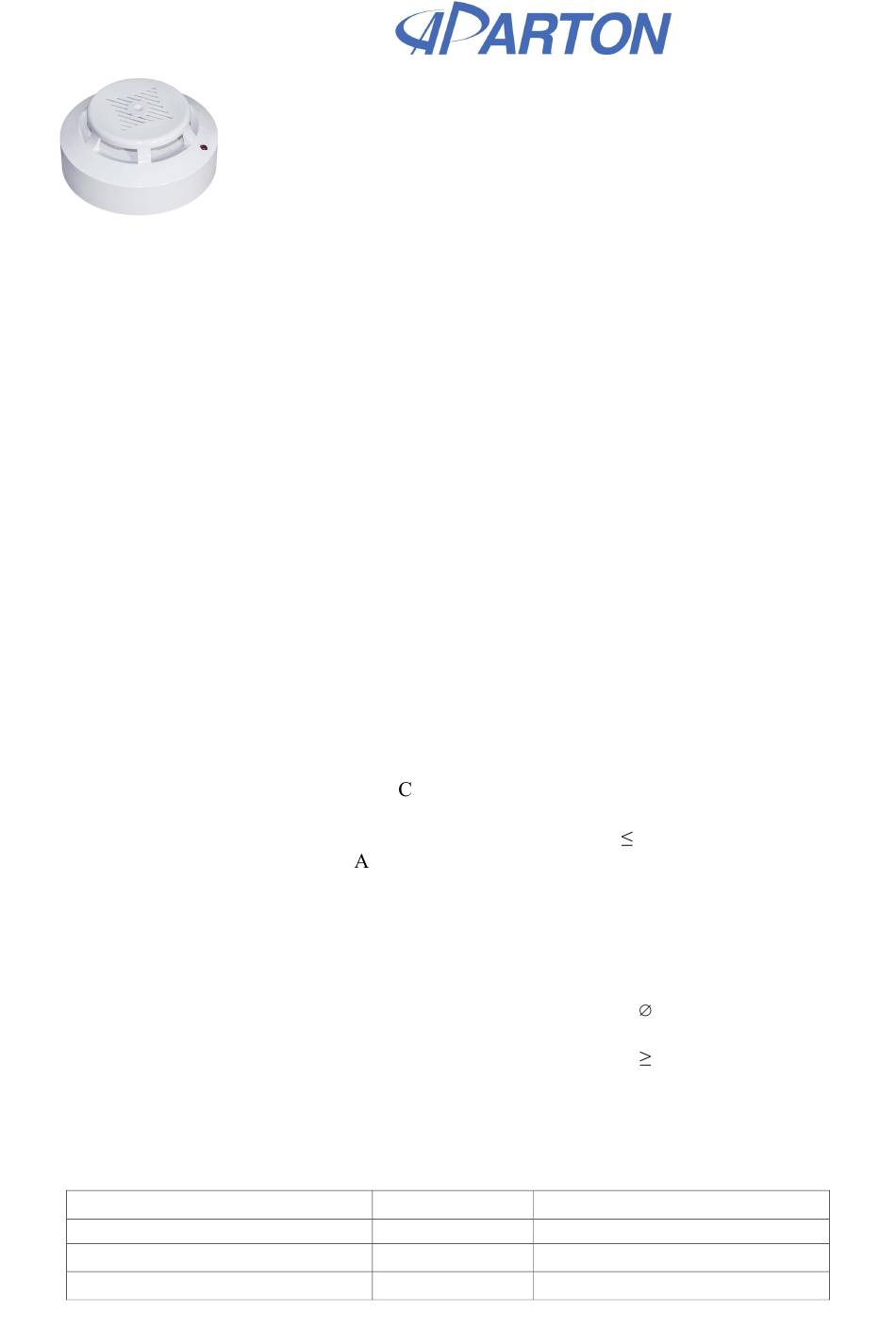

Aparton SPT-3B User Manual

The detectors comply with EN 54-5:2000/A1:2002 A2R class.
The following abbreviations apply in the manual.
AL – alarm loop;
FACP – control panel.
1.1 The SPT-3B heat detectors feature:
- fixed temperature/rate-of-rise detection,
- LED indication of standby mode,
- remote reset,
- 4-wire connection to 12V FACP or fire intruder CP,
- indoor use.
1.2 Either when exceeding the threshold ambient temperature value the detector issues the alarm
signal for FACP or if the ambient temperature rate-of-rise is high even if the initial temperature much
lower than regular temperature of detector operation.
1.3 The Fire mode is indicated with the red LED indicator (steadily lit – DCAL, flashing– ACAL).
1.4 The red LED flashes every 1-2 sec in standby mode.
2.1 Static response temperature range, ° ..............................54 – 70
2.2 Supply voltage range, V.............................................. 10 - 14
2.3 Standby current consumption, mA.................................. 0,16
2.4 Alarm current consumption, m ....................................22
2.5 Max relay contact current, mA.......................................<100
2.6 Max relay contact voltage, V.........................................<36
2.7 N.C. relay contact resistance, Ohm..................................<5
2.8 N.O. relay contact resistance, kOhm................................>500
2.9 Remote reset to standby mode, sec..................................3
2.10 Dimensions, mm........................................................ 100 × 48
2.11 Weight, g ...............................................................150
2.12 Average lifespan, years ................................................ 10
SPT-3B heat detector
Manual
Package

2 TECHNICAL SPECIFICATIONS

3 ITEMS SUPPLIED WITH THE DETECTOR

Name
USER'S
MANUAL
SPT-3B
HEAT DETECTORS

1 PURPOSE

Quantity
Up to 25 pcs
1 pc.
1 pc.
Note
B103-03 base included
Per a package
Per 25 pcs
