Timer
IN4
Speed
1 ON
2
3
4
SPEED1: Can be used as the Priming function 1700~3450RPM）time: （1min~5min）
Function description:
The externally controlled relay sets the start time and end
time. For example, the set time is 8:00AM-8:00PM for a total of 12 hours. According to
the default setting, the pump runs SPEED1 (3000RPM, 2HOURS) when the relay is
closed. It then runs SPEED2 (1500RPM, 10HOURS), etc...
Users can schedule the running time at different speeds according to their total set time. Up to four speeds can be
realized.

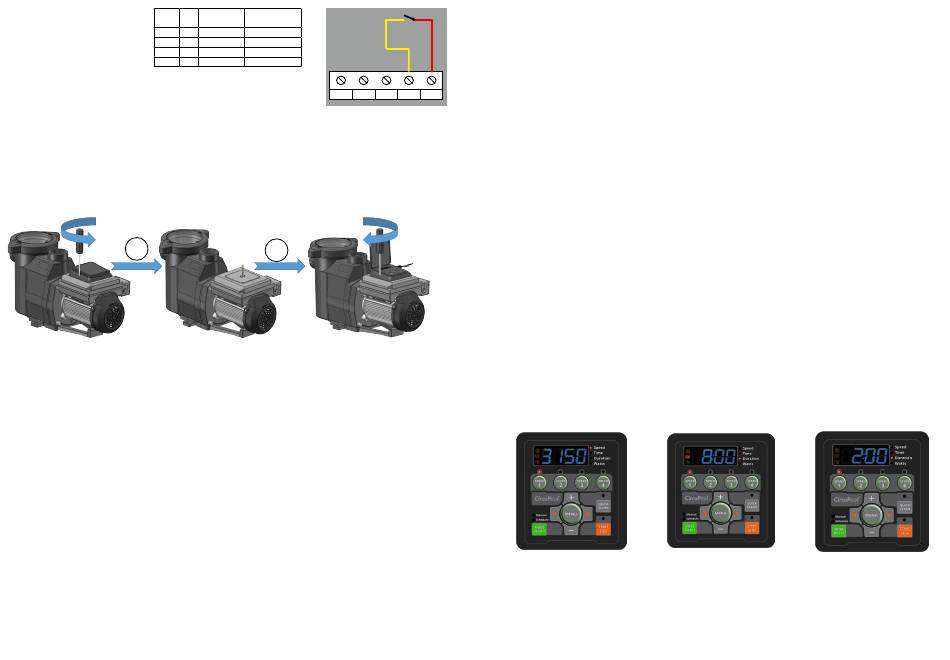

The following steps should be followed to connect the automation adapter to a variable
motor.
1
1. Remove the User Interface from the controller (4 screws).
Disconnect the 6-pin communication connector
2. Install Automation Adapter Panel to the 6-pin communication connector.
Assemble the Automation Adapter Panel (2 screws)
OPERATING AN AUTOMATION ADAPTER PANEL
Setting the Clock
When the pump is first installed, it is necessary to set the clock. Any daily schedule set by the user must be based
on accurate time setting.
T o Set the Clock:
1. When the pump is plugged in, the TIME led light starts blinking. Enter clock setup by pushing Display Key.
Note:
1.1 Time setup will be unavailable after TIME led blinks for 5 seconds.
1.2 If pump is already energized, simultaneously press"<" and" >" Key for about 3 seconds,
and the TIME led light will begin blinking. Enter clock setup by pushing Display Key.
2. Use the arrows to choose between a 12 or 24 hour time format.
3. Use the "+" and "-" arrows to change the time to the correct time of day. In the 12 hour time format AM/PM will
display in the bottom left corner.
4. Press Display for about 3 seconds to exit the Clock Setup menu. The TIME led light is now blinking. The clock is
now set.
During a power outage, the drive will retain the clock setting in memory for as long as one day. If the power is out
longer than one day the clock will have to be set again.
Default Default
Speed(RPM) Duration(Hours)
3000 2
1500 10
2500 2
1000 4
IN1 IN2
2
Note:
When programming, the LED light next to the parameter ("Speed", "Time" and "Duration") you are
1. Stop the pump if it is running by pressing the Start/Stop button.
2. Press the "1" button. The LED above the selected SPEED will begin to blink and the "Speed" parameter LED will
blink while editing. See Figure 1.
IN3 IN4 +5V
3. Use the "+" and "-" arrows to adjust the speed in RPM for SPEED 1.
Note:
Speed is adjusted up or down by increments of 10 RPM.
4. Press the "1" button again and the display will change to SPEED 1 start time. The "Time" parameter LED will begin
to blink. See Figure 2.
5. Use the "+" and "-" arrows to adjust the daily start time for SPEED 1.
6. Press the "1" button again and the display will change to SPEED 1 duration. The "Duration" parameter LED will begin
to blink. See Figure 3.
7. Use the "+" and "-" arrows to adjust the duration for SPEED 1 in hours and minutes.
Note:
The duration parameter is adjusted in 1 minute increments.
8. Pressing the "1" button will continue to cycle through these parameters, but the changes are immediately saved as
they are adjusted.
9. Press the "2" button. The LED above SPEED 2 will begin to flash and the corresponding parameter LED will flash
while editing.
10. Use the "+" and "-" arrows to adjust the speed in RPM for SPEED 2.
11. Press the "2" button again and the display will change to SPEED 2 duration.
Note:
SPEED's 2, 3, and 4 do not have a start time,as they begin their duration immediately after the previous
SPEED finishes
12. Use the "+" and "-" arrows to adjust the duration for SPEED 2 in hours and minutes.
13. Repeat steps 9-12 to program SPEED 3-4 and QUICK CLEAN.
Note:
Remember that the duration allowed for SPEED 3 will be limited to the remaining time in a 24 hour day.
Any time in the 24 hour day not programmed into SPEEDs 1-4, the pump will remain in a stationary
state.[ SPEED 1 + SPEED 2 + SPEED 3 +SPEED 4 < 24 Hours ]
14. Press the Start/Stop button and ensure the LED is lit. The pump is now on and will run the custom user-
programmed schedule.
Note:
If the pump has been stopped via the Start/Stop button, the pump will not run until the pump is turned
back on by the Start/Stop button. If the Start/Stop LED is illuminated then the pump is on and will run
the programmed schedule.
Figure1
Programming a Custom Schedule:
setting will blink.
Figure2 Figure3
