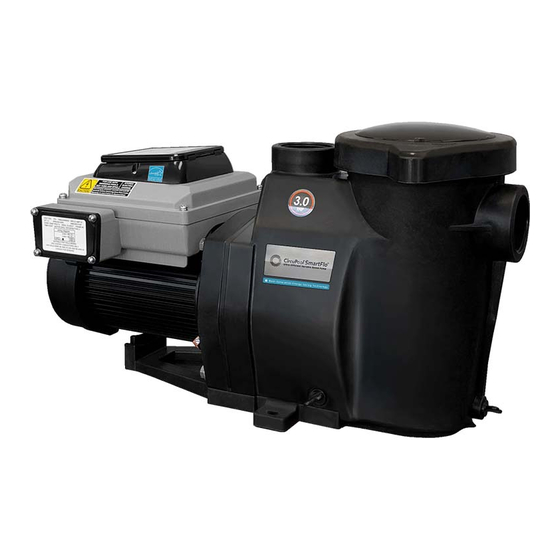

CircuPool SmartFlo Installation Manual And User's Manual

Installation Manual and User's Guide
INTRODUCTION
The Automation Adapter panel provides the ability to operate a motor with a 3rd party automation
system such as the Hayward Goldline Pro Logic, Pentair Easytouch, Jandy Aqualink, and Intermatic
controls. This will allow the user to control and experience the full variable speed capability of a
automation adapter panel product through an existing automation system.
！
Access to the connections referenced in the diagrams below could be in close proximity to
mains connections which carry line voltage capable of causing personal injury or damaging
the equipment if contact is made. Power should be turned off when accessing these areas.
AUTOMATION
ADAPTER PANEL
CONNECTING TO A VARIABLE MOTOR
WARNING
！
The automation adapter must be wired according to the locally adopted version of the NEC.
A licensed, qualified electrician should complete the wiring for this product. Failure to comply
with this may result in death, serious personal injury or property damage.
External Relay Speed Control Wiring (For remote selection of pump speed)
Note:
1. For third party controls that are NOT software compatible.
2.All settings should be based on "manual" mode.
Automation Adapter
WARNING
System
AUTOMATION
Remote control scheme 1
Timer
Speed
IN1/IN2/IN3 is controlled by external relays.
After the relay is opened and closed, the
running time corresponding to the speed can
be realized. The speed is completed on the
pump operation panel. Refer to the Programming a Custom Schedule 1-14 for the
specific operation steps.
SPEED1: Can be used as the Priming function 1700~3450RPM）time: （1min~5min）
Function description:
Externally controlled relay sets start time and end time.
IN1→RELAY1:8:00AM-10:00AM Operating speed 3000RPM.
IN2→RELAY2:10:01AM-12:00PM Operating speed 1500RPM.
IN3→RELAY3:12:01PM-10:00PM Operating speed 2500RPM.
Remote control scheme 2
IN4 It is controlled by a relay of the external controller. After the relay is closed, four kinds of speeds can be realized corresponding
to different running times. The time and speed are all completed on the pump operation panel.
Custom Schedule 1-14 for the specific operation steps (in the SmartFlo pump's manual).
Transformer
RELAY1 RELAY2 RELAY3
Wire nut to
120 VAC power
Earth Ground
Neutral
Breaker Panel
Default
IN1 IN2 IN3
Speed(RPM)
1 ON 3000
2 ON 1500
3 ON 2500
IN1 IN2
Transformer
RELAY1
Wire nut to
120 VAC power
Earth Ground
Neutral
Breaker Panel
Refer to the Programming a
To 120 VAC
Breaker
IN3 IN4 +5V
To 120 VAC
Breaker
