III Program parameters and Read data

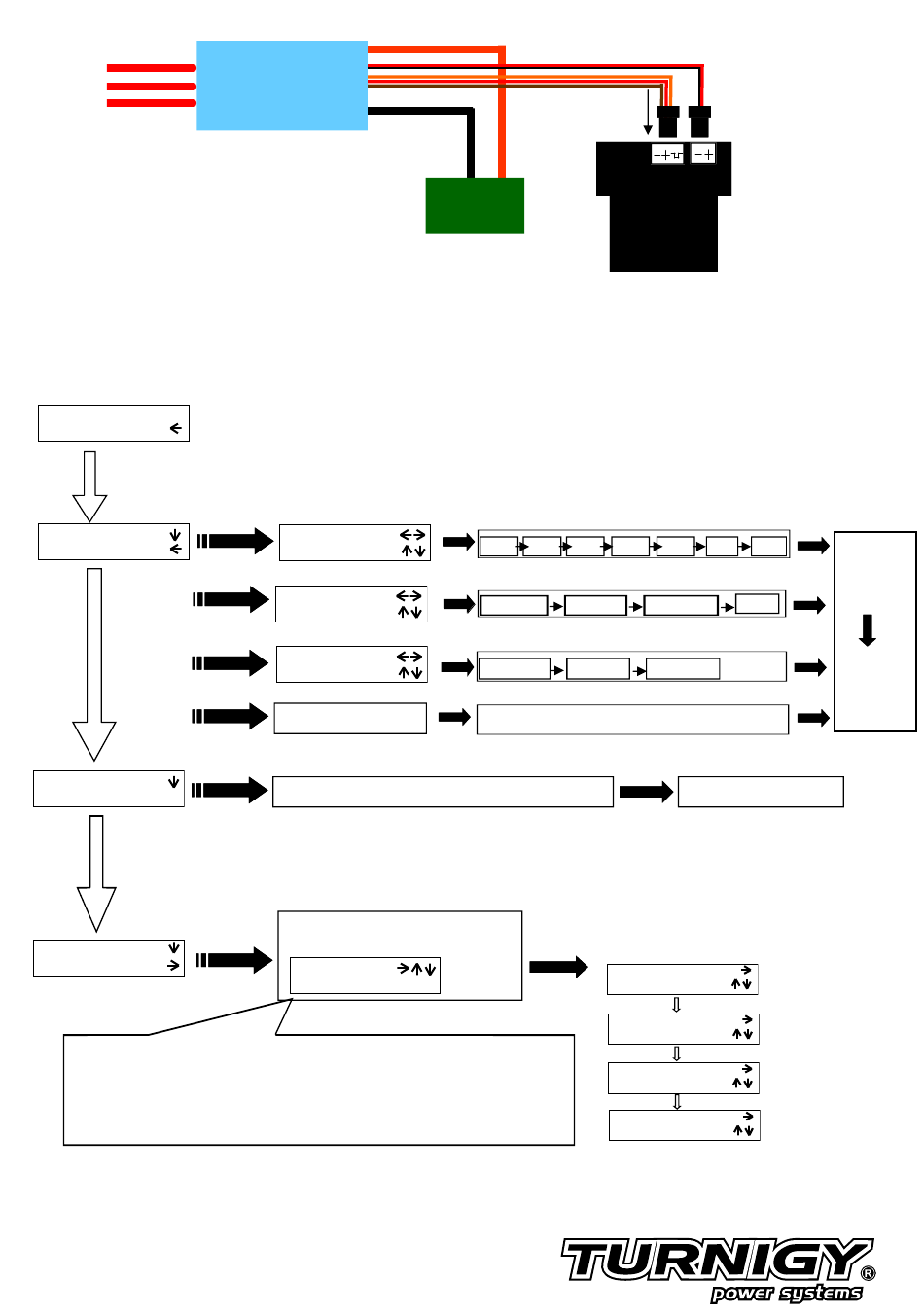

When ESC is successfully connected to program box, Program box will firstly display ESC model. Then it is ready to get into
Programming. Please operate according to the direction arrow guide.
Turnigy ESC
SuperBrain 20A
SuperBrain 20A
PARA SETTING
Press left arrow ' ← ' to get into setting the next parameter
SuperBrain 20A
BACK TO DEFAULT
Note
'Read data' menu will automatically activate when connect
:
Press right arrow '→' to get into 'READ DATA ' menu
SuperBrain 20A
READ DAT A
Press '↑ ' and '↓' to input correct Poles No. and Gear Ratio.
After input the motor poles number, press ' → ' to set gear ratio by moving cursor
to set the ratio number in turn． Press "OK" to load the data.
Poles No. hear indicates magnetic poles of brushless motor, which is a multiplier number of 2.
Right Poles No. will affect the accuracy of rpm which be showed.
Gear Ratio is a decimal number. If not use gear-box, please keep it as default '01.00'.
Note
1) The memory space of SuperBrain ESC on-board data logger is limited, we suggest to clear data by TM-USB Link on PC before next
flying.
2) Program Box always read the latest logged data, such as max current, min voltage, motor RPM and temperature.
SuperBrain ESC-100A
Fatboy 300A
Fatboy 300A II
Picture 2
Press left arrow '←' to get into main menu
Press left arrow '←' to get into
parameter setting menu, '→' to last step
LVC
Auto ＊
CUR LI MI T
Standard ＊
BRAKE TYPE
Close ＊
Other settings ...
Press'OK 'back to the default settings of ESC
Input the magnetic poles of motor
and gear ratio before uploading the data
Pole No. 00_
Gear R 00.00
Battery
Up and down arrow'↑''↓' to select

Parameter options

Aut 5.0V 6.0V
sensitivity
standard
Soft brake
No brake
...
SuperBrain ESCs
Page 2
Program box
9.0V
7.2V 8.4V
12.0V
close
insensitivity
Soft brake
'Update success'
to Program Box.
Press '↑' and '↓' to read out the data
SuperBrain 20A
Imax 28A
SuperBrain 20A
Vmin 7.8V
SuperBrain 20A
Tmax 22
℃
SuperBrain 20A
maxRPM 32,000
Press 'OK'
to update the
setting
'Update
success'
