Turnigy Program Box Quick Start Manual

Features: Turnigy Program Box is one of the easiest devices to program
parameters of SuperBrain ESC, AquaStar ESC and Fatboy 300A ESC. It also can
read logged flight data from SuperBrain ESC.
I
The ESC models which Program Box supports to use.
ESC
SuperBrain ESC-20A
SuperBrain ESC-40A
SuperBrain ESC-45A
SuperBrain ESC-60A
SuperBrain ESC-80A
SuperBrain ESC-100A
AquaStar ESC-90A
AquaStar ESC-120A
AquaStar ESC-240A
Fatboy ESC-300A
Fatboy ESC-300A II
II
Correctly connect ESC to Program Box.

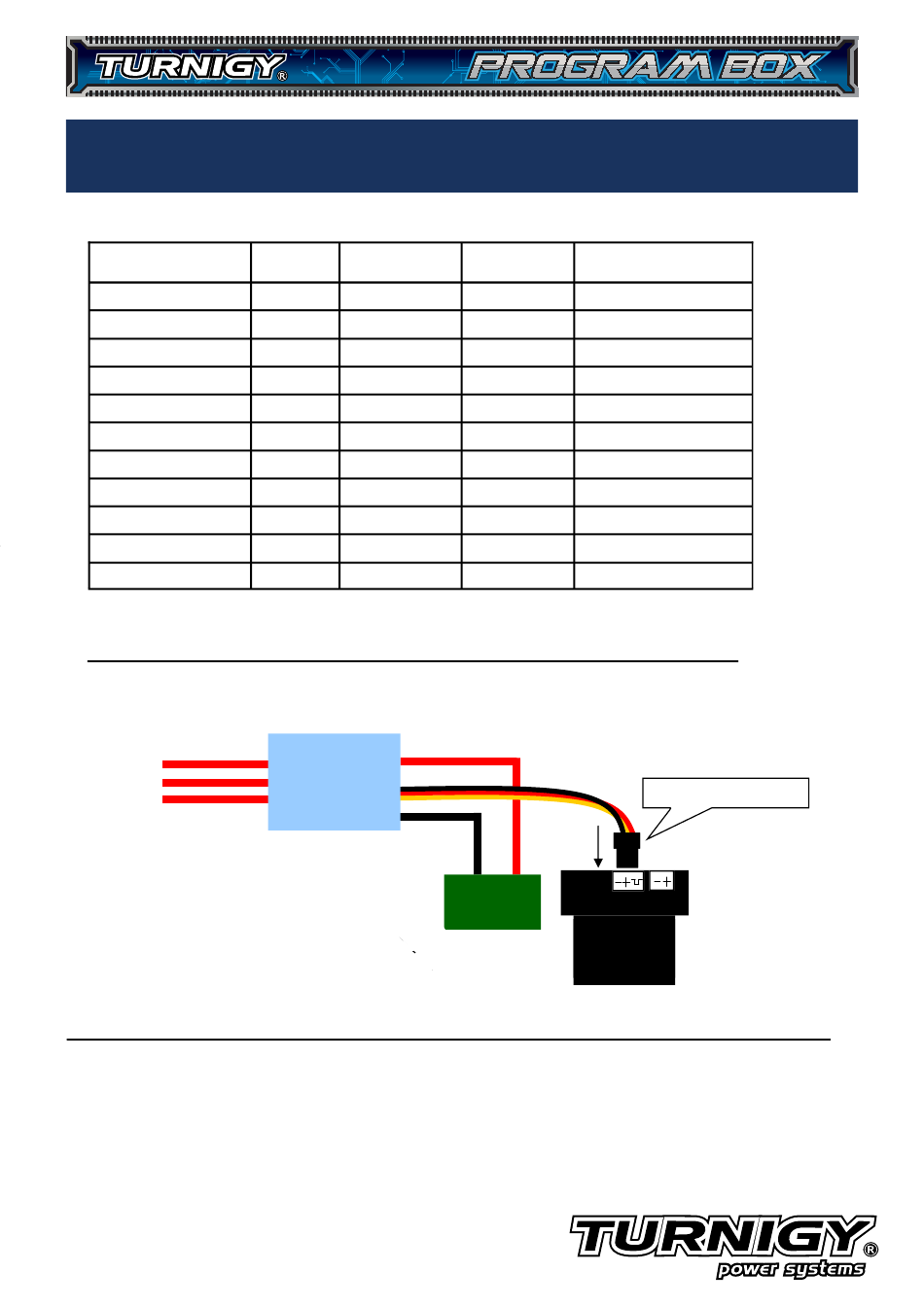

A. For ESCs which has built-in BEC, please refer to the below steps and picture 1 for connecting.
- connect ESC's receiver lead to the left socket of program box at correct polarity
(brown wire to negative, red wire to positive, orange wire to signal);
- connect ESC to battery pack. If connection is right, Program Box would highlight and read ESC's model.
B. Connect HV ESC which does not have built-in BEC, please refer to the below steps and picture 2 for connecting.
- connect ESC's receiver lead to the left socket of program box at correct polarity
(brown wire to negative, red wire to positive, orange wire to signal);
-connect the other lead (consisted of red and brown wires) of ESC to the right socket of program box at correct polarity
(red wire to positive, brown wire to negative);
- connect ESC to battery pack.
- Switch 'ON' the switch of ESC. If connection is right, Program Box would highlight and read ESC's model.
NOTE: When connect the ESC to TM-Progbox, It is no need to connect ESC to brushless motor.
RC model Fully program
Airplane Yes
Airplane Yes
Airplane Yes
Airplane Yes
Airplane Yes
Airplane Yes
Boat Yes
Boat Yes
Boat Yes
Airplane Yes
Airplane Yes
ESC
Picture 1
Read data Connecting diagram
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
Battery
Program box
Page 1
Picture 1
Picture 1
Picture 1
Picture 1
Picture 1
Picture 2
Picture 1
Picture 1
Y cable Picture 2
Picture 2
Picture 2
Pay attention to the polarity
