Summary of Contents for Motic Swift Optical D-Moticam BTW 8

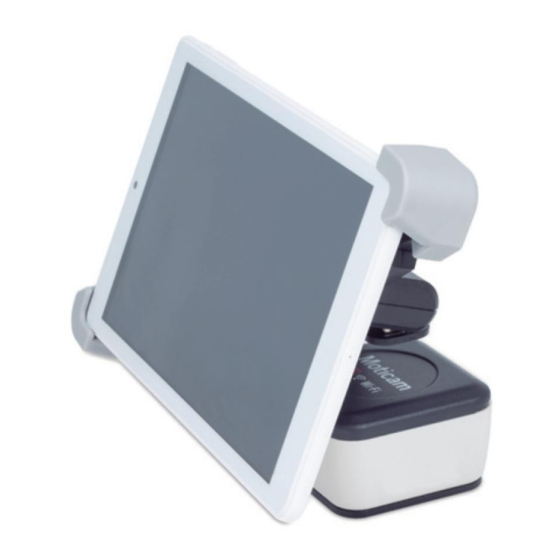

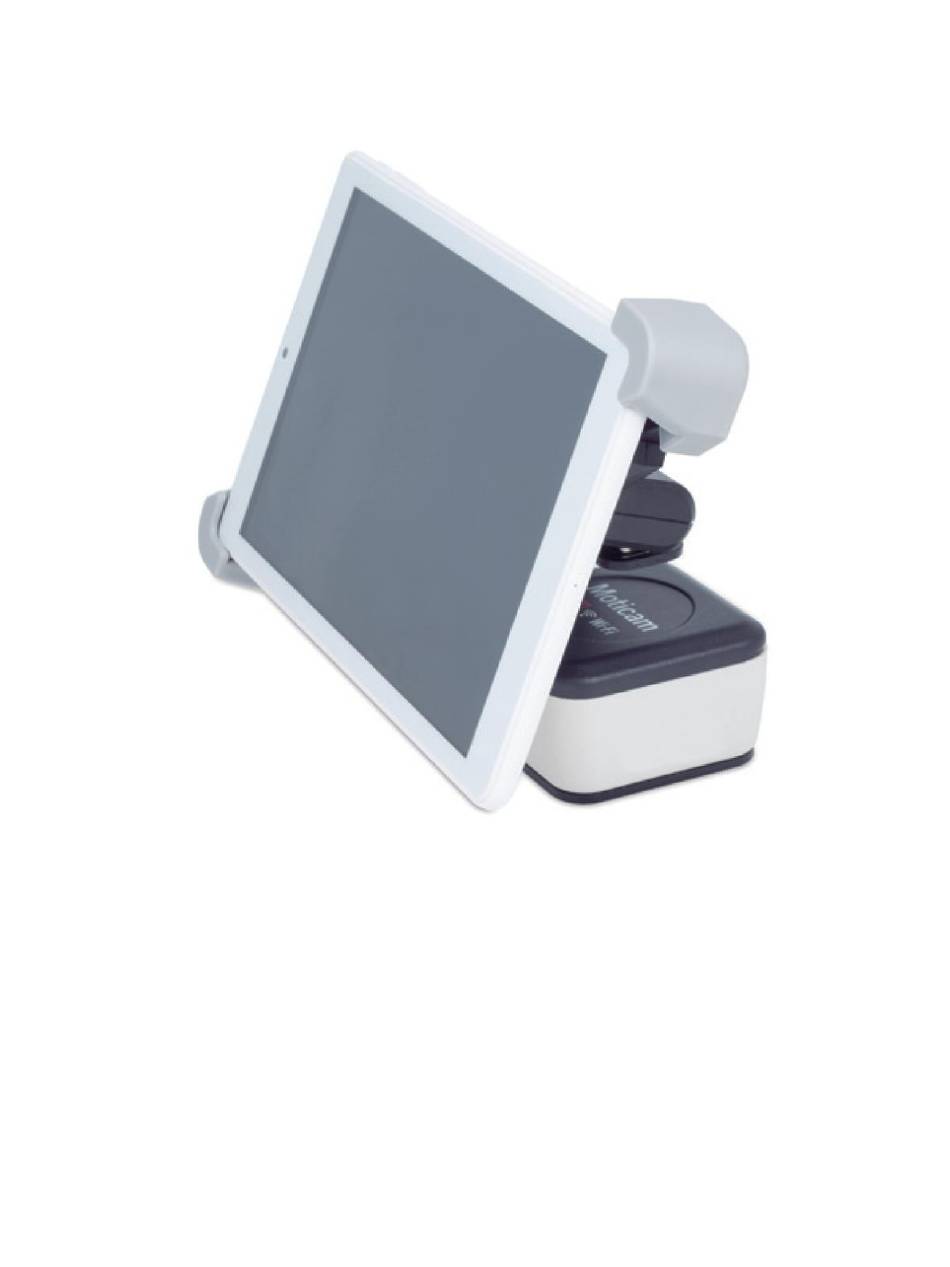

- Page 1 D-Moticam BTW Microscope Tablet / Camera Use and Care Manual...
- Page 2 MotiConnect application. The MotiConnect app can be downloaded through Google’s PlayStore or Apple’s AppStore. Tablet Bracket Quick Assembly Tablet Bracket Moticam X3 C-Mount Camera Registration It is important to make sure you have registered your device on the Motic Images website:...
- Page 3 Connect to the Moticam X WiFi signal – Quick Start 1. First plug the power supply (wall adapter and USB A to Micro USB cable) into the back of the Moticam X3 camera. 2. Press in the camera button to turn the camera on. 3.
- Page 4 2. Secondly, from the MotiConnect app, click on Camera Device. From here click on Motic WiFi Camera. This will open the WiFi camera live image. You can begin viewing.
- Page 5 2.4 GHz and 5 GHz First, always make sure you have installed the latest version of the MotiConnect App or Motic Images software. Secondly before switching from 2.4 GHz to 5 GHz make sure you are using a device with confirmed 5 GHz capability.
- Page 6 6. When using either Channel 1 or 6, the camera can be used in 2.4Ghz mode. 7. If you wish to change the camera mode to 5Ghz, change the Channel to 149 or 157 8. Once changed, you will need to click on Save first, then Apply. Make sure to write down any and all changes you make on this tab.
- Page 7 Moticam X3. 5) You may now enter the IP address into any browser of any device connected to the network, or you can use Motic Images Plus 3.0 (PC or Mac) or MotiConnect (Android/iOS/Chromebook). In my case, I am using http://192.168.1.160:8080...
-
Page 8: Help Button
MotiConnect. MOTICONNECT OVERVIEW – HELP MENU MotiConnect is a dedicated image processing Android app for Motic cameras, which includes image preview, capture, recording, editing and measuring functions. Please refer to the Application Help guide for a complete description of the MotiConnect Application. - Page 9 CALIBRATION – (*Optional – not necessary to use your microscope*) To prepare for the calibration process, please make sure you have the calibration slide. The calibration slide has four individual dark round circles. Each dark round circle corresponds with each objective on your microscope. ...
- Page 10 Now put the Calibration slide on the stage of the microscope and focus the dot in the center of the screen. For 4x Objective, use the 1.5mm dot. For 10x Objective, use the 0.6mm dot. For the 40x Objective, use the 0.15mm dot.
- Page 11 TRANSFERING IMAGES TO YOUR COMPUTER By default all your images are saved to the Micro SD card included with your M29TZ-SM99CL-BTW1 series microscope. This card is provided as a courtesy. If it is missing or lost, you will need to purchase a replacement. It is highly recommend that you purchase a Micro SD to Standard SD card adapter.
