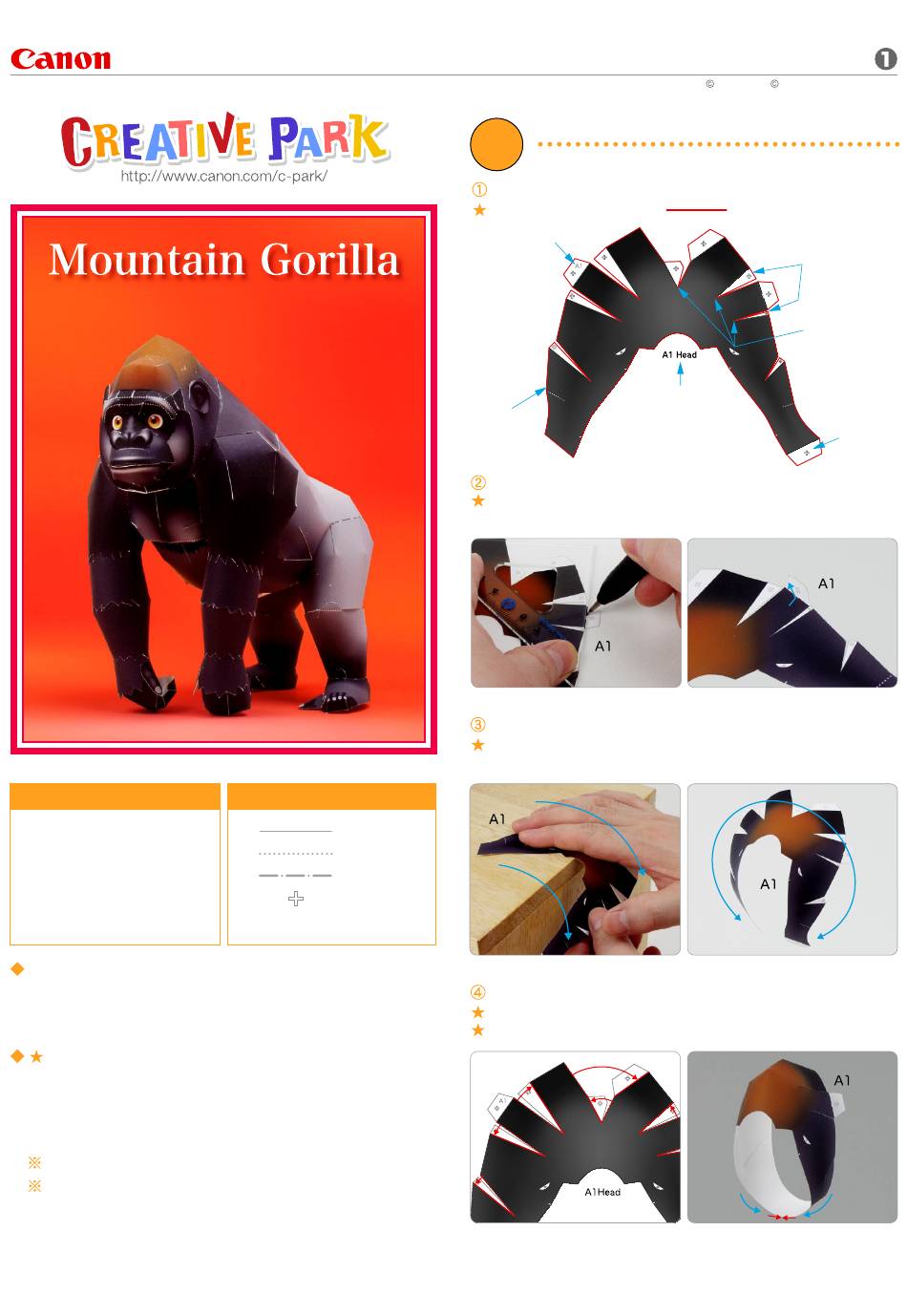

Mountain Gorilla : Assembly Instructions
Tools
Scissors
Paste, or woodwork glue
Stencil pen, or bodkin
Ruler
The Assembly instructions are divided into three blocks:
A (head), B (arms, body, and thigh), and C (hands and legs).
Follow the instructions for each block to assemble your
mountain gorilla.
mark is a basic assembly technique that remains the same
regardless of the part. Instructions are printed only for the first
instance.
<Caution>
Keep scissors and glue away from small children.
Be careful not to cut your fingers when using scissors.
Notation Key
Scissors line
Mountain fold
Valley fold
Glue spot
A1, B1
Parts No.
A Assemble the head
Use pattern: Page2.
Cut out A1 by cutting along the lines.
Cut along the line marked
Parts No.
Scissors line
Make a mountain fold and valley fold on A1.
Trace along the mountain fold line and valley fold line with
a stencil pen, scoring it to make it easier to fold.
The parts will be easier to assemble if curled.
Using the photo as a guide, apply pressure with the palm of
your hand, gradually curling the paper in the direction of the arrow.
Add a slight curl to A1 when attaching it.
Attach the triangular glue tabs so that the front side becomes convex.
Using the photo as a guide, attach in the direction of the arrow.
Katsuyuki Shiga ( PinoArt )
Canon Inc.
.
Triangular glue tab
Cut a slot right
into the apex of
the triangular
glue tab.
Parts name
Page
Glue spot
