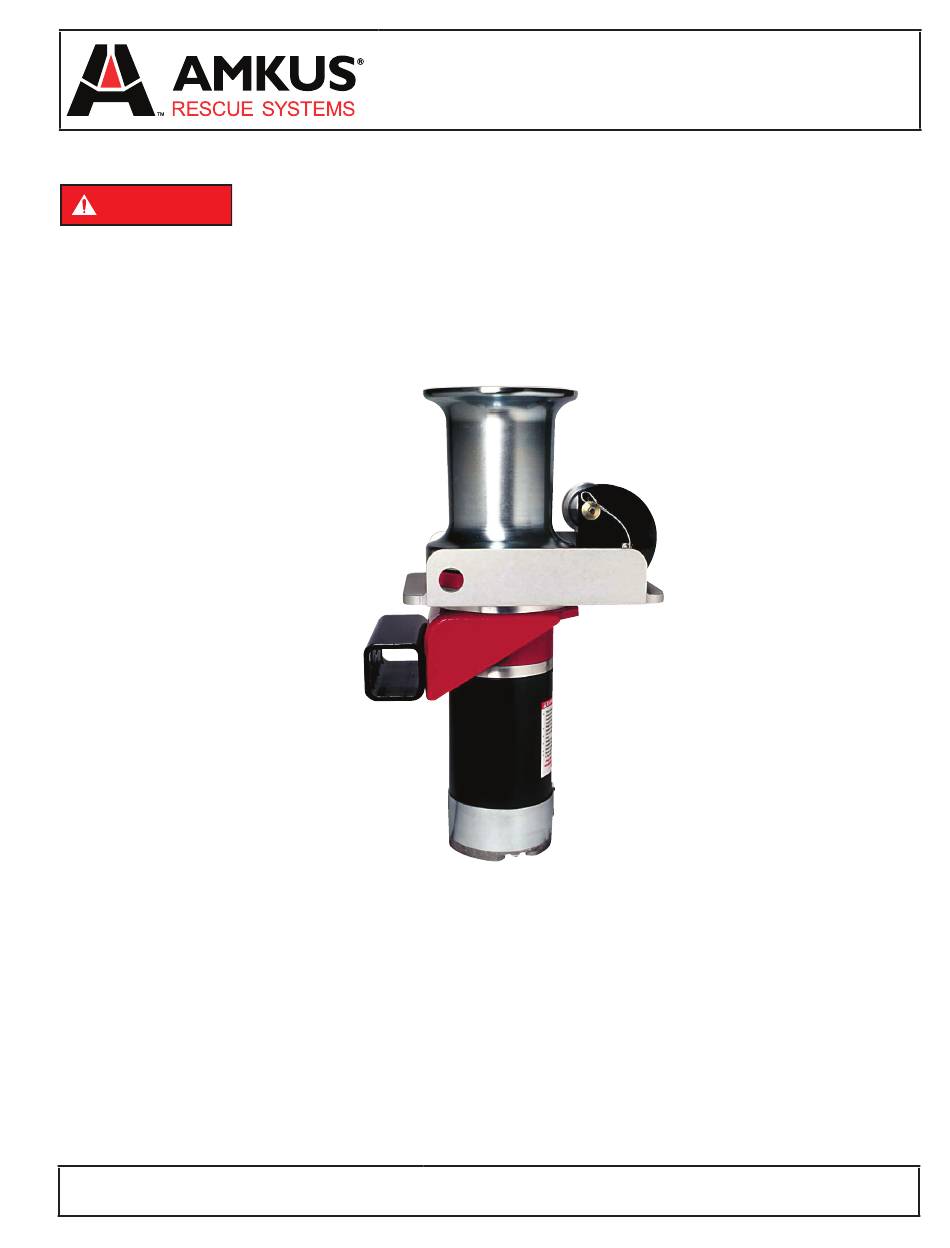

Instructions for safe installation, operation, and maintenance.
DANGER
Electrically driven capstan operated hoist system for rope rescue operations. The AMKUS Rope Rescue System may be paired with a
truck-mounted monopod, a bipod, or tripod. Refer to manuals for these devices when operating the ARSS-1 paired to these devices.
This manual does NOT address operation or servicing of AMKUS Rope Rescue Systems. Only competent rescue tool repair technicians
are qualifi ed to repair AMKUS equipment. This manual should be available to all personnel involved with AMKUS equipment.
AMKUS RESCUE SYSTEMS
MADE IN USA • amkus.com
©Copyright Amkus Rescue Systems, Inc. 2018-2020
MANUAL: AMKUS ROPE RESCUE
Understand manual before use. Operating AMKUS Rescue Systems without understanding
the manual, receiving proper training, and using appropriate personal protective equipment is
a misuse of AMKUS equipment. This manual does not fully address safety. Additional safety
information is available at www.amkus.com/resources/information.
SYSTEM ARRS-1
4201 Montdale Drive, Valparaiso, IN 46383-4098 USA
800-592-6587 • 219-548-5000 • Fax 219-476-1669
LAA-002 March 10, 2020 Rev02
