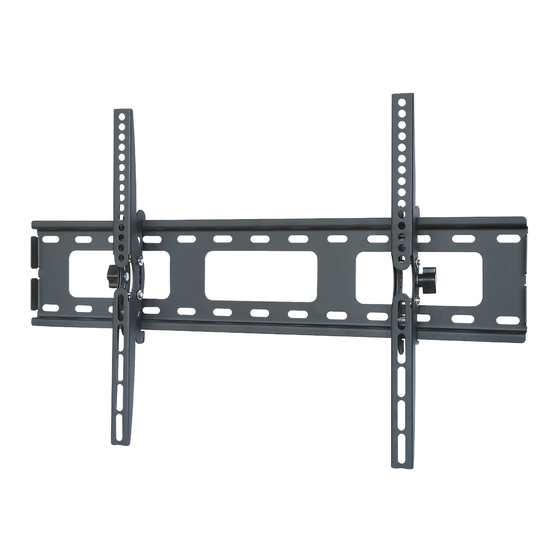

Summary of Contents for Techly ICA-PLB 131

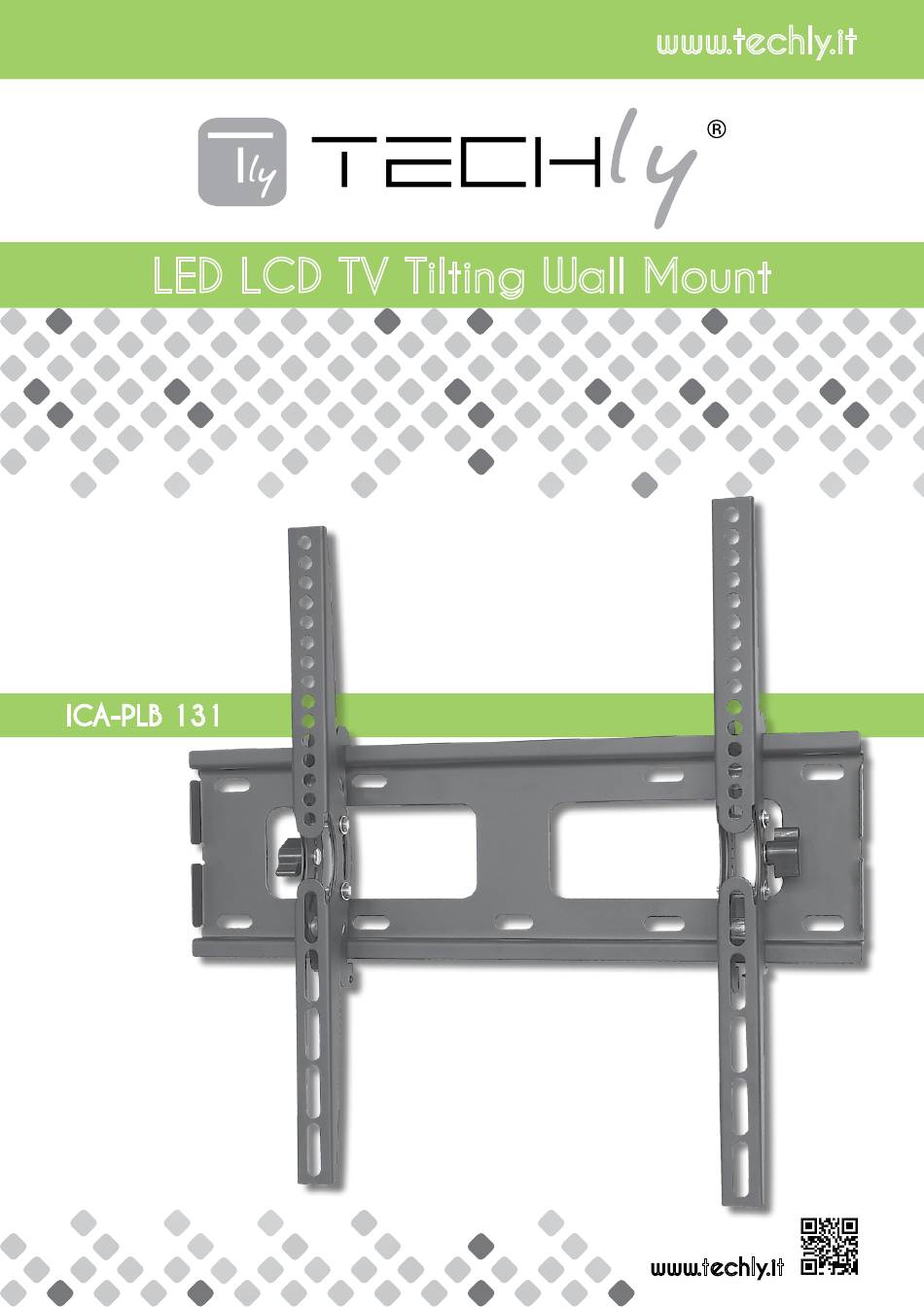

- Page 1 LED LCD TV Tilting Wall Mount Istruzioni installazione Installation Instruction ICA-PLB 131 www.techly.it...
- Page 2 LED LCD TV Tilting Wall Mount Gentile Cliente, Dear Customer, grazie per aver scelto un prodotto Techly. thanks for choosing a Techly product. Enjoy the using. Istruzioni disimballaggio Unpacking Instructions • Aprire il cartone con cura, rimuovere il contenuto e distenderlo su • C arefully open the carton, remove contents and lay out on...
- Page 3 LED LCD TV Tilting Wall Mount LISTA DELLE PARTI FORNITE | SUPPLIED PARTS LIST (1) Placca a muro-a (1) Staffa monitor sinistra-b (1) Staffa monitor destra-c (1) Wall Plate-a (1) Left Monitor Bracket-b (1) Right Monitor Bracket-c (4) M4x12 viti –e (4) M5x12 viti –f (4) M6x12 viti-g (4) M8x16 viti-h (4) M4x12 Bolt-e (4) M5x12 Bolt-f...
- Page 4 Washers(w) and 6pcs Concrete Anchor(x), shown in Diagram. Wood Stud mounting: The Wall Plate(a) must be mounted to two wood studs at least 16"(406mm) apart. Use a stud finder to locate two adjacent studs. It is a good idea to verify where the studs are located with an awl or thin nail shown in Diagram. Pre-drill a 2.4"(60mm) deep hole at the desired height in each vite di sicurezza stud using a 5/32"(4mm) drill bit. Make sure these holes are in the center area of the studs and safety bolt level with each other. Use the Wall Plate as a template to mark the location of the second hole in each stud. Drill 2.4"(60mm) deep holes using the 5/32"(4mm) drill bit in the marked locations. muro muro Attach the Wall Plate to the wall using the 4pcs Lag Bolts(v) and 4pcs Lag Bolt Washers(w). wall wall Schema A Schema B Diagram A Diagram B 16 pollici 16 inches 16 pollici 16 inches 16 pollici 16 inches www.techly.it...
