Pulse PAR30C Instructions Manual

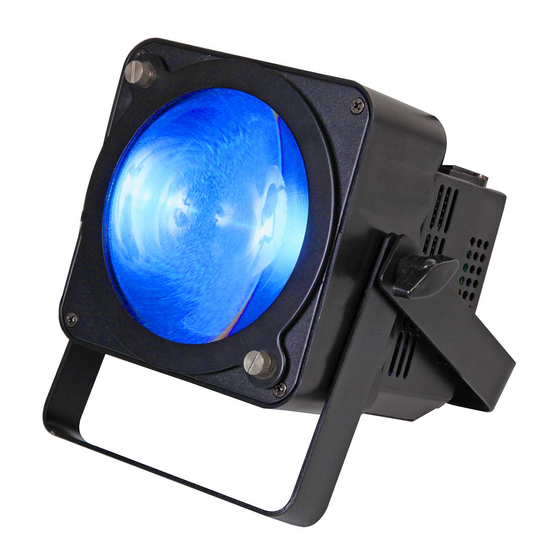

Par light 30w cob led rgb
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

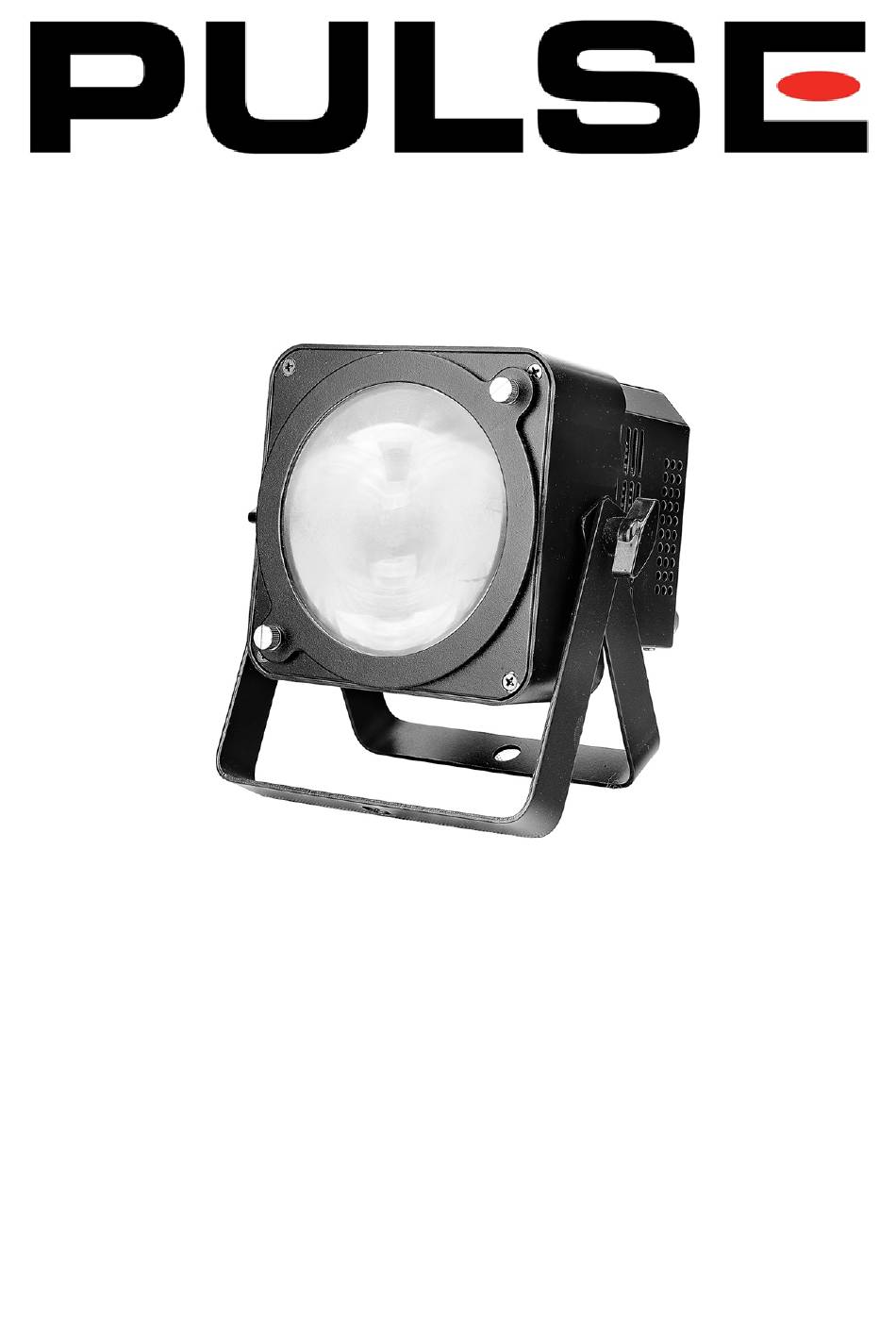

PAR LIGHT 30W COB LED RGB
Model: PAR30C
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR30C and is the answer not in the manual?

Questions and answers

Related Manuals for Pulse PAR30C

Summary of Contents for Pulse PAR30C

  • Page 1 PAR LIGHT 30W COB LED RGB Model: PAR30C...
  • Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • When using electrical appliances basic safety precautions should always be followed. • Check the product before use for any damage. Should you notice any damage on the cable or casing, do not use.
  • Page 3 CONNECTION CABLES • DMX-512 connection / connection between fixture. • 3-pin XLR plugs connect the controller with the fixture or one fixture with another. Screened twisted pair cable should be used. DMX Input DMX Output XLR mounting - socket XLR XLR mounting - socket 1.
  • Page 4 OPERATION MODES • There are two operation modes Master/slave built-in program. • Connect the lights in series, the first light control the other lights as auto show, sound control show etc. • The first light must be set as master. •...
  • Page 6 DMX MODE 2 Channel Mode Channel Value Function 000-255 Full dimmer, 0-100% 000-036 037-073 074-110 111-255 Colour mixing 3 Channel 1 Mode Channel Value Function 000-255 Red dimmer,0-100% 000-255 Green dimmer,0-100% 000-255 Blue dimmer,0-100% 3 Channel 2 Mode Channel Value Function 000-255 Full dimmer, 0-100%...
  • Page 7 CLEANING & MAINTENANCE • Disconnect from the mains before starting the maintenance operation. • Frequent cleaning is recommended. Use a soft lint-free moistened cloth. • Do not use any chemicals, abrasives or solvents that could damage the device. • There are no user-serviceable parts in this product. Refer all servicing to qualified personnel.
  • Page 8 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

This manual is also suitable for:

Dp36224
