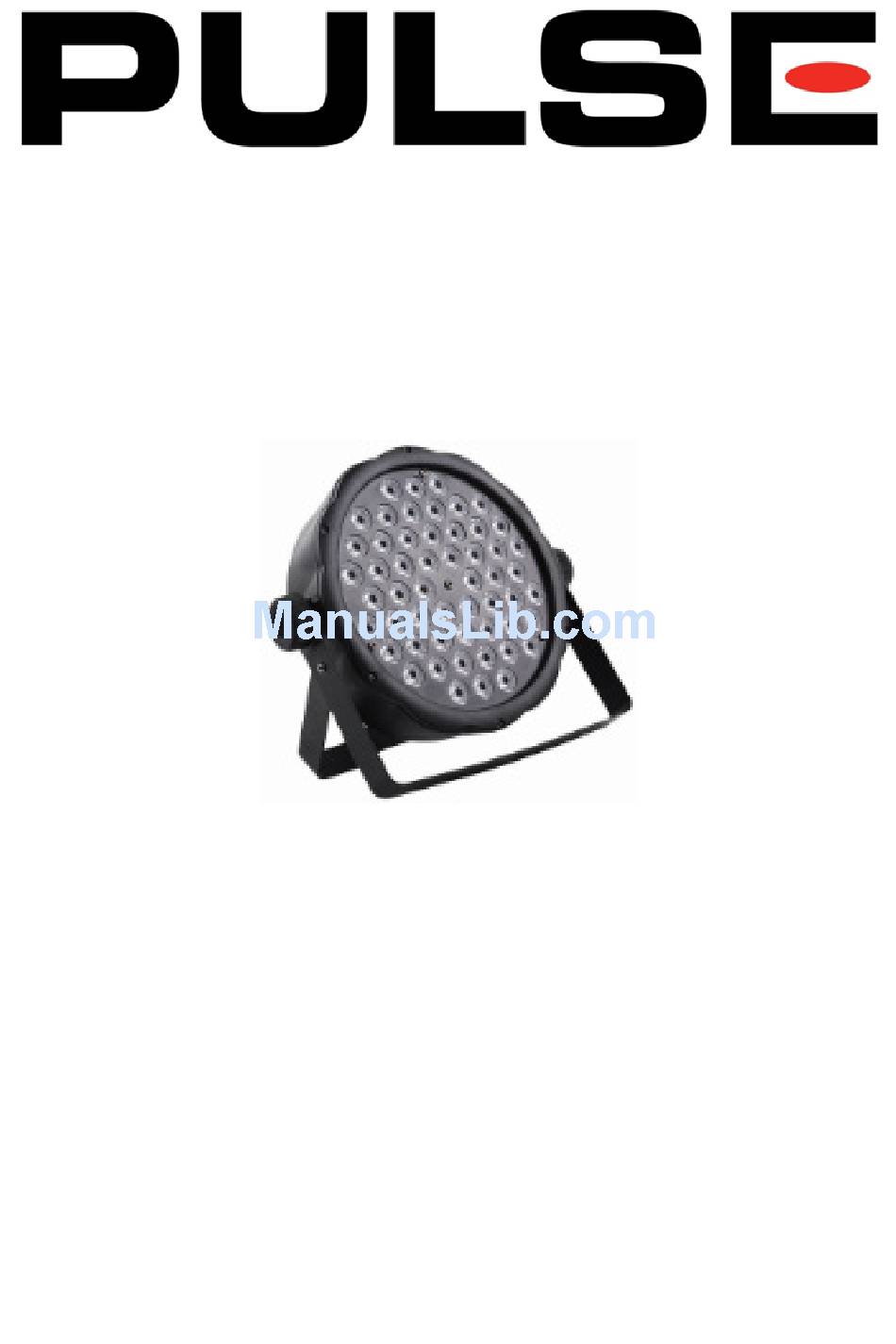

- Page 1 Par 64 54-1W RGBW Model: PLS00565...
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be • followed. • Check the product before use for any damage. Should you notice any damage on the cable or casing, do not use.
- Page 3 CONNECTION CABLES Cable International Brown Live Blue Neutral Yellow/green Ground • DMX-512 connection / connection between fixture. • 3-pin XLR plugs connect the controller with the fixture or one fixture with another. Screened twisted pair cable should be used. DMX Input DMX Output XLR mounting - socket XLR XLR mounting - socket...
- Page 4 RGBW total flash strobe - slow to fast 000~050: CH1-CH6 control 051~100: Different colors output 101~150: Colors jump change Function choice 151~200: Colors gradate 201~250: Colors pulse change 251~255: Sound-active Slow to fast (at the colors output choose Function/speed the color)
- Page 5 Colors jump 00~15 UP, DOWN change the speed CC15 Colors 00~15 UP, DOWN change the speed DE15 gradate Colors pulse 00~15 UP, DOWN change the speed CP15 Colors sound- Sound-active SoUd active • Use the MENU button to cycle through the functions above.
- Page 6 CLEANING & MAINTENANCE • Disconnect from power before starting the maintenance operation. • Frequent cleaning is recommended. Use a soft lint-free moistened cloth. • Do not use any chemicals, abrasives or solvents that could damage the device. • There are no user-serviceable parts in this product. Refer all servicing to qualified personnel.
