Summary of Contents for Barco MDMX-MNA

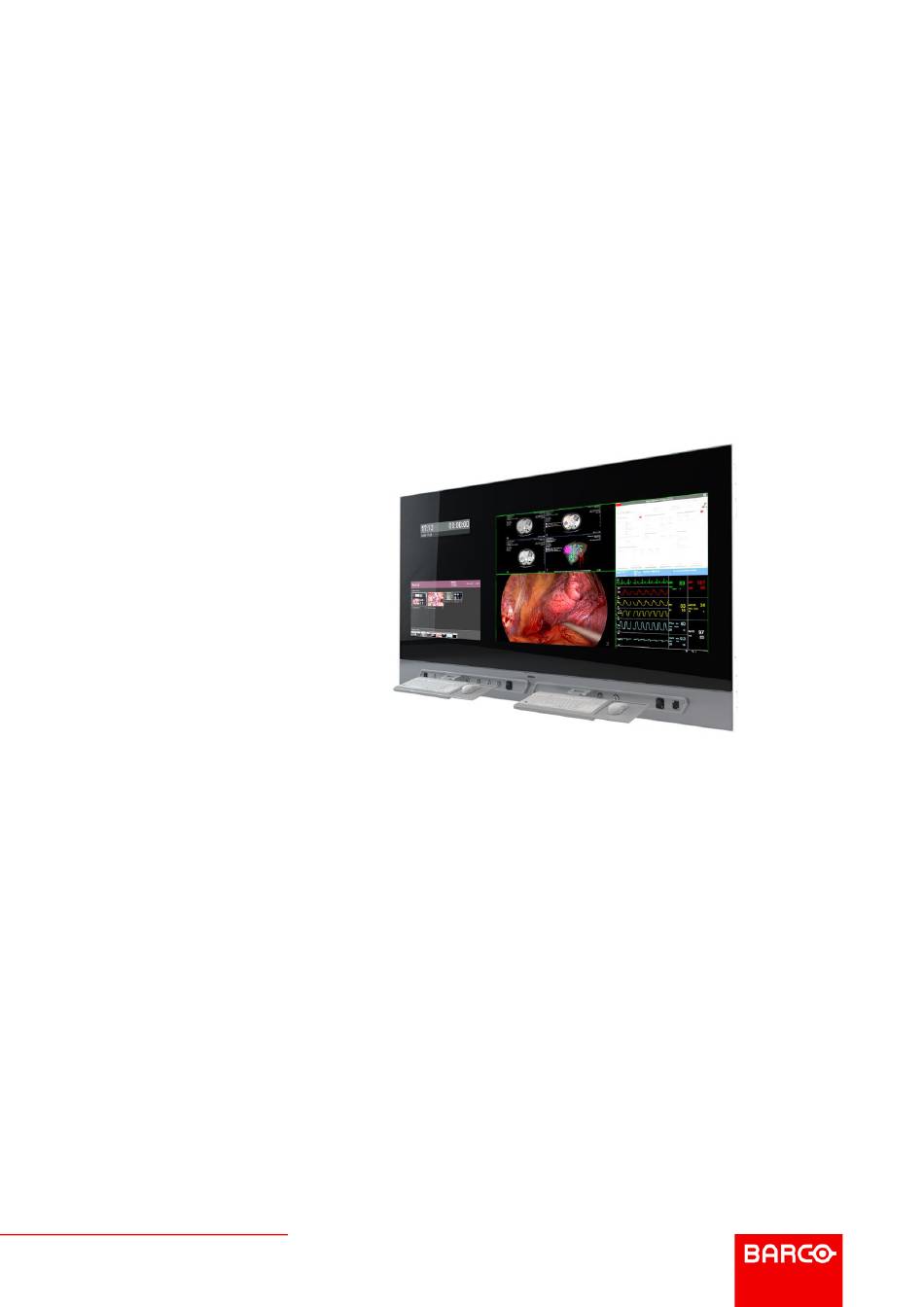

  • Page 1 MDMX-MNA In-wall console for the digital OR User Guide MDMX-22400 MDMX-25500 MDMX-22449 ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco Visual (Beijing) Electronics Co., Ltd. Suzhou Branch, 巴可伟视(北京)电子有限公司苏州分公司 Floor 4, No. 179, Suhong West Road, Suzhou Industrial Park, 215021 Suzhou China, 苏州工业园区苏虹西路179号4楼 www.barco.com/en/support www.barco.com...
  • Page 3: Table Of Contents

    DICOM (PACS images optimization) ..........................16 Nexxis WorkSpot (MDMX-25500) ............................17 4 Cleaning and disinfection ................................19 Cleaning instructions..................................20 5 Important information..................................21 Safety information...................................22 Environmental information.................................24 Regulatory compliance information ............................25 EMC notice ......................................27 Explanation of symbols................................29 Legal disclaimer....................................32 Technical specifications................................33 R5913897 /00 MDMX-MNA...
  • Page 4 R5913897 /00 MDMX-MNA...
  • Page 5: Welcome

    Welcome! R5913897 /00 MDMX-MNA...
  • Page 6: About This User Guide

    1.1 About this user guide Introduction This guide informs you how to install, set up and utilize the MDMX-MNA console. Depending on the specific version that has been purchased, some of the features and options described in this document may not apply to this console.
  • Page 7 Welcome! Image 1–1 MDMX-22400 Option GNTB R5913897 /00 MDMX-MNA...
  • Page 8 MDMX-22449 Option Feature GNTB GNNB GNTB Housing Powder-coated steel Powder-coated steel Powder-coated steel Housing color (front) Black Black Black Front keyboard module 1x (optional) 1x (optional) 1x or 2x (optional) Touch control Nexxis source Power button console R5913897 /00 MDMX-MNA...
  • Page 9: What's In The Box

    Keep your original packaging. It is designed for this product and is the ideal protection during transport and storage. 1.5 References More details This paragraph provides references to other manuals you may need to install and use the MDMX-MNA console. Manuals MDMX-MNA Installation Guide (R5913898)
  • Page 10 Welcome! R5913897 /00 MDMX-MNA...
  • Page 11: Parts, Controls And Connectors

    Parts, controls and connectors R5913897 /00 MDMX-MNA...
  • Page 12: Product Overview

    Neutrik front connection For optional mobile Nexxis device connectivity. Mounting for keyboard module For optional keyboard module. USB 2.0 port For mouse control of the video source. Power button for console Powers on/off the console. R5913897 /00 MDMX-MNA...
  • Page 13: Nexxis Button

    • USB mouse • connected to the console • completely disinfected, antimicrobial coated in a synthetic material • IP65 rated • easy to clean and disinfect • suited for use in medical environments R5913897 /00 MDMX-MNA...
  • Page 14 Parts, controls and connectors Image 2–4 R5913897 /00 MDMX-MNA...
  • Page 15: Daily Operation

    Daily operation R5913897 /00 MDMX-MNA...
  • Page 16: On Switching

    1. Press the DICOM button to activate the calibrated grayscale profile for PACS images. The LED light turns on when DICOM is enabled. 2. Press the DICOM button again to deactivate the calibrated grayscale profile for PACS images. The LED light turns off when DICOM is disabled. R5913897 /00 MDMX-MNA...
  • Page 17: Nexxis Workspot (Mdmx-25500)

    Nexiss Workspot is a licensed feature and can be activated by purchasing the WorkSpot license. Nexxis WorkSpot provides the following features: • a composition of up to 6 video slots • control each video source separately, with the keyboard or mouse • real-time switching between the configurable presets or sources R5913897 /00 MDMX-MNA...
  • Page 18 Daily operation Image 3–2 For more details on how to use Nexxis WorkSpot, see https://www.youtube.com/watch?v=lKAGOCYleCY. R5913897 /00 MDMX-MNA...
  • Page 19: Cleaning And Disinfection

    Cleaning and disinfection R5913897 /00 MDMX-MNA...
  • Page 20: Cleaning Instructions

    LCD. CAUTION: Do not apply or spray liquid directly to the display as excess liquid may cause damage to internal electronics. Instead, apply the liquid to a cleaning cloth. R5913897 /00 MDMX-MNA...
  • Page 21: Important Information

    Important information R5913897 /00 MDMX-MNA...
  • Page 22: Safety Information

    The MDMX-MNA is a device of protection class I and complies with the necessary requirements of EN 60601- 1. It is suitable for use in medical facilities, treatment rooms and medical intensive care units, except for those areas in which there is a potential fire or explosion risk.
  • Page 23 Devices connected to the MDMX-MNA must be electrical safe and provide evidence of compliance with IEC 60601-1. Ensure that only I/O ports according to the intended use of this device are connected to the MDMX-MNA. Do not connect devices with damaged or bypass isolation.
  • Page 24: Environmental Information

    Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
  • Page 25: Regulatory Compliance Information

    Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.
  • Page 26 The manufacturing country of the product is indicated on the product label (“Made in …”). Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). Federal Communications Commission (FCC Statement) This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules.
  • Page 27: Emc Notice

    IEC 61000-3-3 purposes. The MDMX-MNA belongs to the medical graded Group 1 equipment: this means it makes no use of radio- frequency energy in the frequency range 9 kHz to 400 GHz that is intentionally generated and used or only used locally, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material, for inspection/analysis purposes, or for transfer of electromagnetic energy.
  • Page 28 Consult the dealer or an experienced technician for help. Electromagnetic immunity The MDMX-MNA is intended for use in the electromagnetic environment specified below. The customer or the user of the MDMX-MNA should assure that it is used in such an environment.
  • Page 29: Explanation Of Symbols

    On the device or power supply, you may find the following symbols (nonrestrictive list): Indicates the device meets the requirements of the applicable EC directives/ regulations. Indicates compliance with Part 15 of the FCC rules (Class A or Class B). Indicates the device is approved according to the UL regulations R5913897 /00 MDMX-MNA...
  • Page 30 Indicates the DisplayPort connectors on the device. Indicates the legal manufacturer. Indicates the manufacturing date. Indicates the temperature limitations for the device to safely operate within specs. Values for xx and yy can be found in the technical specifications paragraph. R5913897 /00 MDMX-MNA...
  • Page 31 European WEEE (Waste Electrical and Electronic Equipment) directive. Indicates Direct Current (DC). Indicates Alternating Current (AC). Stand-by Equipotentiality Protective earth (ground) Symbols on the box On the box of the device, you may find the following symbols (nonrestrictive list): R5913897 /00 MDMX-MNA...
  • Page 32: Legal Disclaimer

    Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.
  • Page 33: Technical Specifications

    Important information © 2020 Barco NV all rights reserved. Patent protection Please refer to www.barco.com/about-barco/legal/patents 5.7 Technical specifications Overview MDMX-22400 Option GNTB Screen technology Active screen size 604.70 mm (23.8”) (diagonal) Active screen size (H x V) 543 x 317.4 mm (21.4 x 12.5”)
  • Page 34 Screen technology Active screen size 1387.80 mm (54.6”) (diagonal) Active screen size (H x V) 1233.4 x 706.8 mm (48.6 x 27.8”) Aspect ratio 16:9 Resolution Native UHD (3840 x 2160 pixels) Pixel pitch 0.315 mm Color imaging R5913897 /00 MDMX-MNA...
  • Page 35 2x 10GbE Fiber Optic Interface for 55” UHD Nexxis link Optional: 4x Fiber Optic Interface for 2x mobile device connectivity on front Embedded Nexxis Barco MNA-240 decoder USB ports 1x USB 2.0 downstream (External mouse for Nexxis-source control) Nexxis features...
  • Page 36 2x 10GbE Fiber Optic Interface for 49” UHD Nexxis link Optional: 4x Fiber Optic Interface for 2x mobile device connectivity on front Embedded Nexxis Barco MNA-420 decoder / Barco MNA-440 decoder USB ports 2x USB 2.0 downstream (External mouse for Nexxis-source control)
  • Page 37 0 °C to 40 °C (10 °C to 40 °C within specs) Storage temperature -20 °C to 60 °C Operating humidity 20% to 85% (non-condensing) Storage humidity 20% to 85% (non-condensing) Operating pressure 70 kPa minimum Storage pressure 50 to 106 kPa Warranty 2 years R5913897 /00 MDMX-MNA...
  • Page 38 Important information R5913897 /00 MDMX-MNA...
  • Page 40 Barco NV President Kennedypark 35 8500 Kortrijk Belgium Barco Visual (Beijing) Electronics Co., Ltd. Suzhou Branch 巴可伟视(北京)电子有限公司苏州分公司 Floor 4, No. 179, Suhong West Road, Suzhou Industrial Park 苏州工业园区苏虹西路179号4楼 215021 Suzhou China R5913897 /00 | 2021-01-21 www.barco.com...
