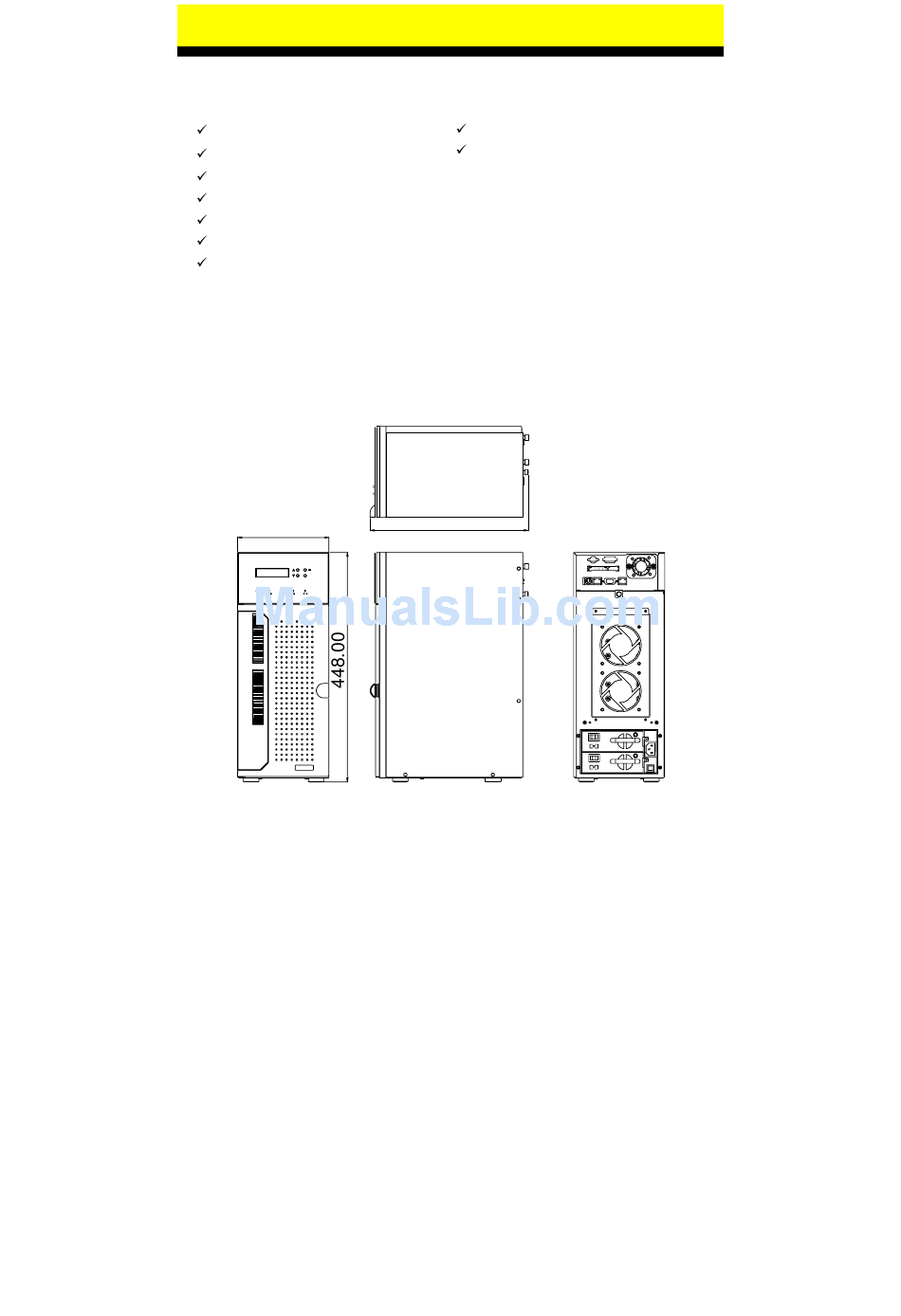

FASTORA NAST8 Quick Installation Guide

Checklist

The Appliance Server x 1

HDD Tray x 8

Quick Installation Guide x 1

The utility CD x 1

Power Cable x 1

Tray Key x 4

HDD mounting screws

Make sure that all of the items listed above are present. If there are

damaged or missing parts, contact your supplier and/or dealer

immediately. Do not attempt to apply power to the system if there is

damage to any of its components.

II.

177.40

Version A1 March 2003

Printed in Taiwan

9410000800

Hardware Installation Guide

Software user Guide- FASTORA

Filer

307.50

Unit: mm

Table of Contents

Do you have a question about the Fastora NAS T8 and is the answer not in the manual?

Page 1 FASTORA NAST8 Quick Installation Guide Checklist The Appliance Server x 1 HDD Tray x 8 Quick Installation Guide x 1 The utility CD x 1 Power Cable x 1 Tray Key x 4 HDD mounting screws Make sure that all of the items listed above are present. If there are damaged or missing parts, contact your supplier and/or dealer immediately.
Page 2 FASTORA NAST8 Quick Installation Guide III. Rear Panel Outlets 1 External SCSI port (Optional) 3 Gigabit Ethernet port 5 10/100 Ethernet port (II) 7 Chassis FAN 1 9 A/C Switch of Power Supply # 1 11 A/C Switch of Power Supply # 2 13 FAN of Power Supply # 1 15 Thumbscrew of Power Supply # 1 17 D/C LED of Power Supply # 2...
Page 3 FASTORA NAST8 Quick Installation Guide Front Bezel Indicators Power control button 1. Be sure the A/C power cable is in socket 2. When Power switch on, the appliance starts to initiate. Press this button once to shutdown the appliance, and then press once again to switch on the appliance.
Page 4 FASTORA NAST8 Quick Installation Guide Green LED for system status 1. One flash per 0.5 second：when the appliance is booting. 2. One flash per 1.0 second：when the appliance is being shutdown. 3. One flash per 2.0 second：when the appliance is being re-building. 4.
