Fastora NAS-T4 Quick Installation Manual

FASTORA NAS-T4 Quick Installation Guide

Checklist

The Appliance Server x 1

HDD Tray x 4

Quick Installation Guide x 1

The utility CD x 1

Make sure that all of the items listed above are present. If there are

damaged or missing parts, contact your supplier and/or dealer

immediately. Do not attempt to apply power to the system if there is

damage to any of its components.

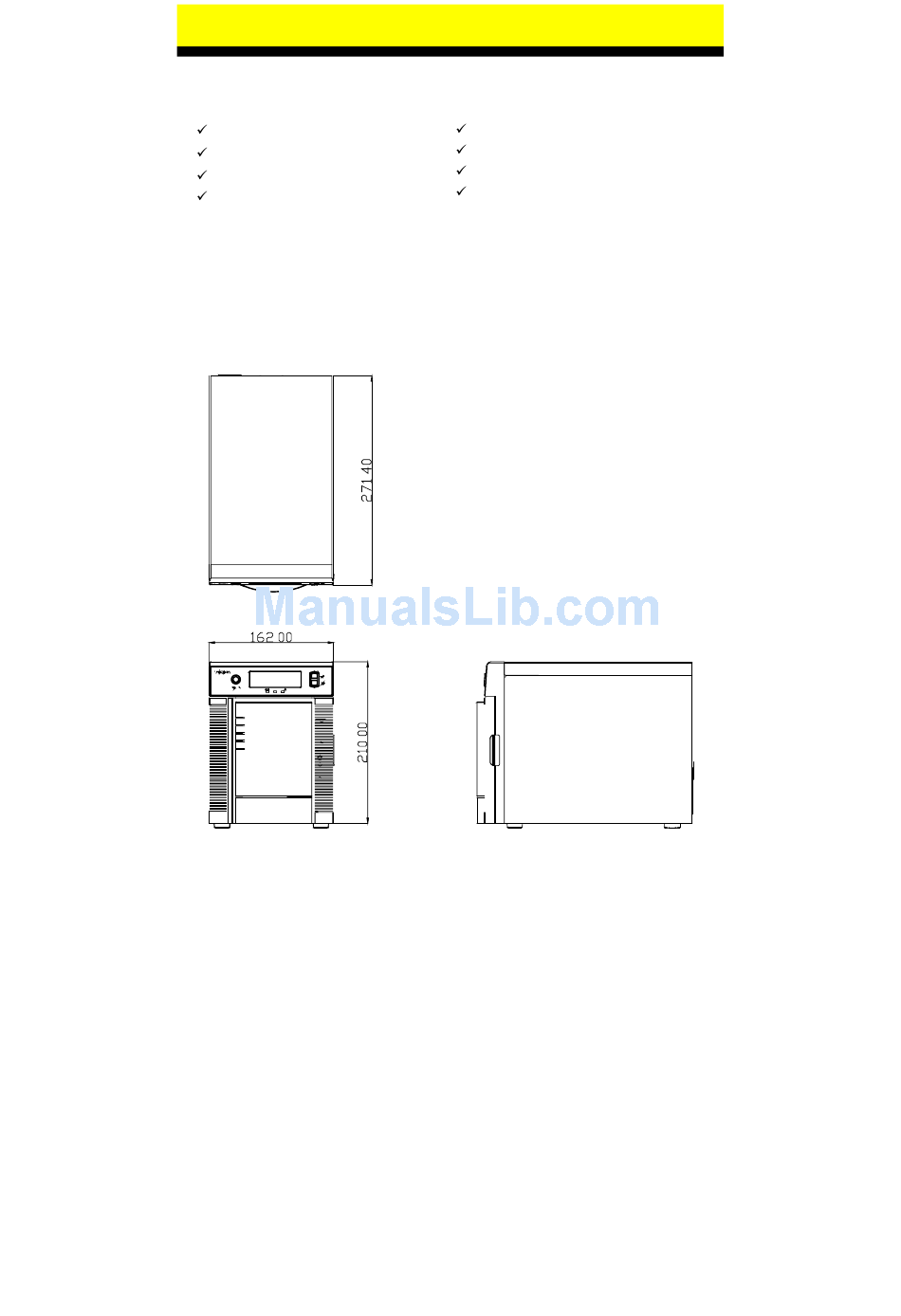

II.Dimensions

Version A1 August 2003

Printed in Taiwan

9410000400

x 1

Power cord

Hardware Installation Guide

HDD mounting screws

Software user Guide- FASTORA

Filer

Unit: mm

Table of Contents

Do you have a question about the NAS-T4 and is the answer not in the manual?

Page 1 FASTORA NAS-T4 Quick Installation Guide Checklist The Appliance Server x 1 Power cord Hardware Installation Guide HDD Tray x 4 HDD mounting screws Quick Installation Guide x 1 Software user Guide- FASTORA The utility CD x 1 Filer Make sure that all of the items listed above are present. If there are damaged or missing parts, contact your supplier and/or dealer immediately.
Page 2 FASTORA NAS-T4 Quick Installation Guide III. Rear Panel Outlets 1 Chassis FAN 2 A/C Inlet of Power Supply 3 FAN of Power Supply 4 Gigabit Ethernet port(LAN2) 5 10/100 Ethernet port (LAN1) 6 COM Port #1 IV. Installation Steps Step 1: Install HDD Via hot-swap drive tray to the drive bay.
Page 3: Power Control And Reset Buttons
FASTORA NAS-T4 Quick Installation Guide Front Bezel Indicators Power control and reset buttons Power control button 1. Be sure the A/C power cable is in socket 2. When Power switch on, the appliance starts to initiate. Press this button once to shutdown the appliance, and then press once again to switch on the appliance.
Page 4: Indicators Of System Status Control Led
FASTORA NAS-T4 Quick Installation Guide connecting. This LED flashes when there is transmit or receive activity to or from the appliance. Link/Active LED of LAN port # 2 for Gigabit Lan 1. This green LED is on when Ethernet port #2 is active connecting.
