QS200 WIRING INSTALLATION (continued)

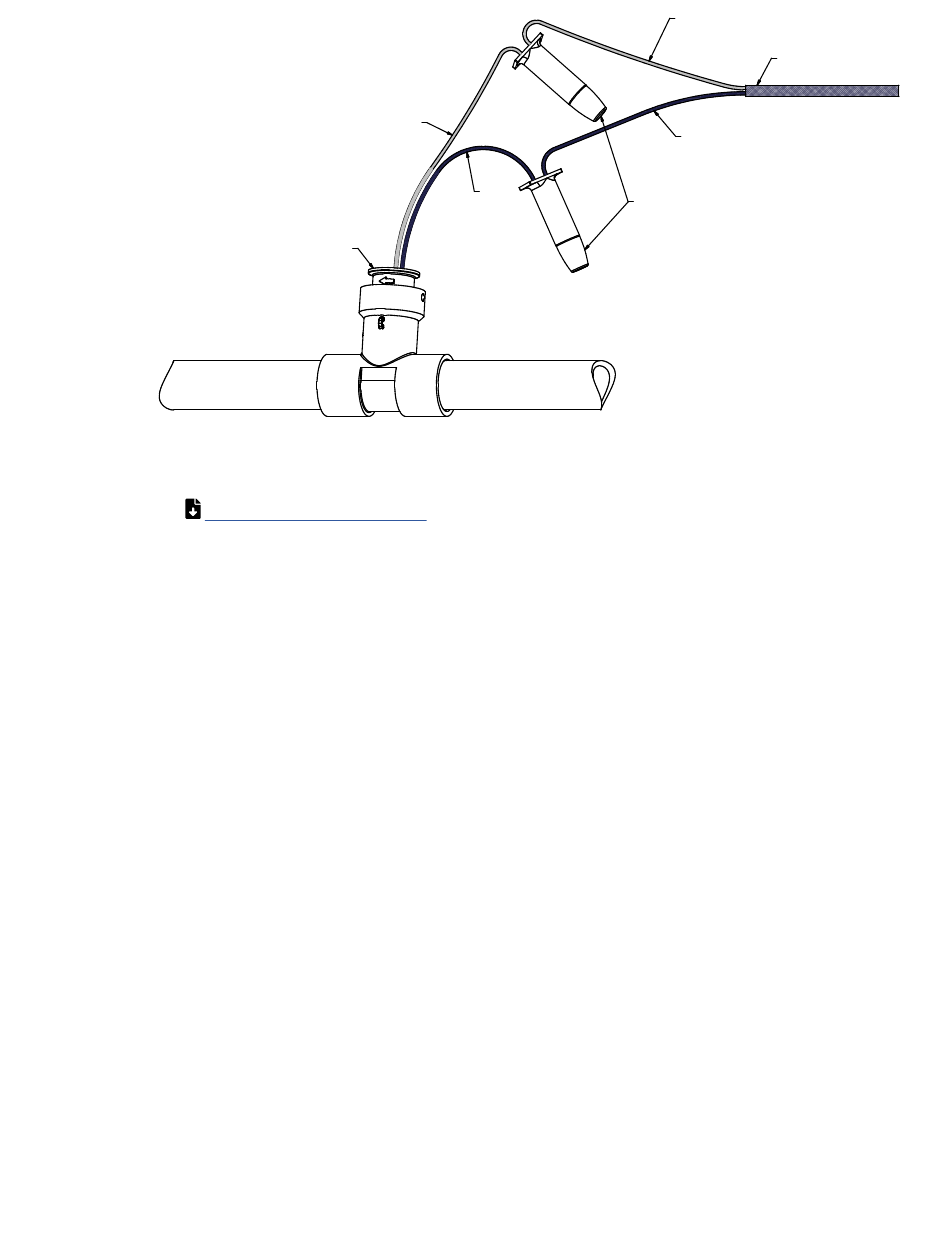

Figure 13
Calibration
Set K-factor and Offset per QS200 FLOW INSERT SELECTION CHART below (reference QS200 Data Sheet - FLOW INSERT

SELECTION CHART -

Download DATA SHEET
NOTE: Most irrigation controllers will refer to devices as "flow sensor" instead of flowmeter.
Operation
1. Make sure line is full of water with no trapped air.
2. Flow meter may take a few minutes to start
averaging out flow per irrigation controller
displays.
RED
FLOW INSERT
HERE. These calibrations will be configured in the irrigation controller.
-7-
BLACK
DBR/Y-6
SPLICE KIT
3. It is recommended to monitor and observe
stabilized flow rates before setting control limits.
TO FLOW " + "
ON FLOW SMART
MODULE
18 AWG CABLE
to CONTROLLER
TO FLOW " - "
ON FLOW SMART
MODULE
