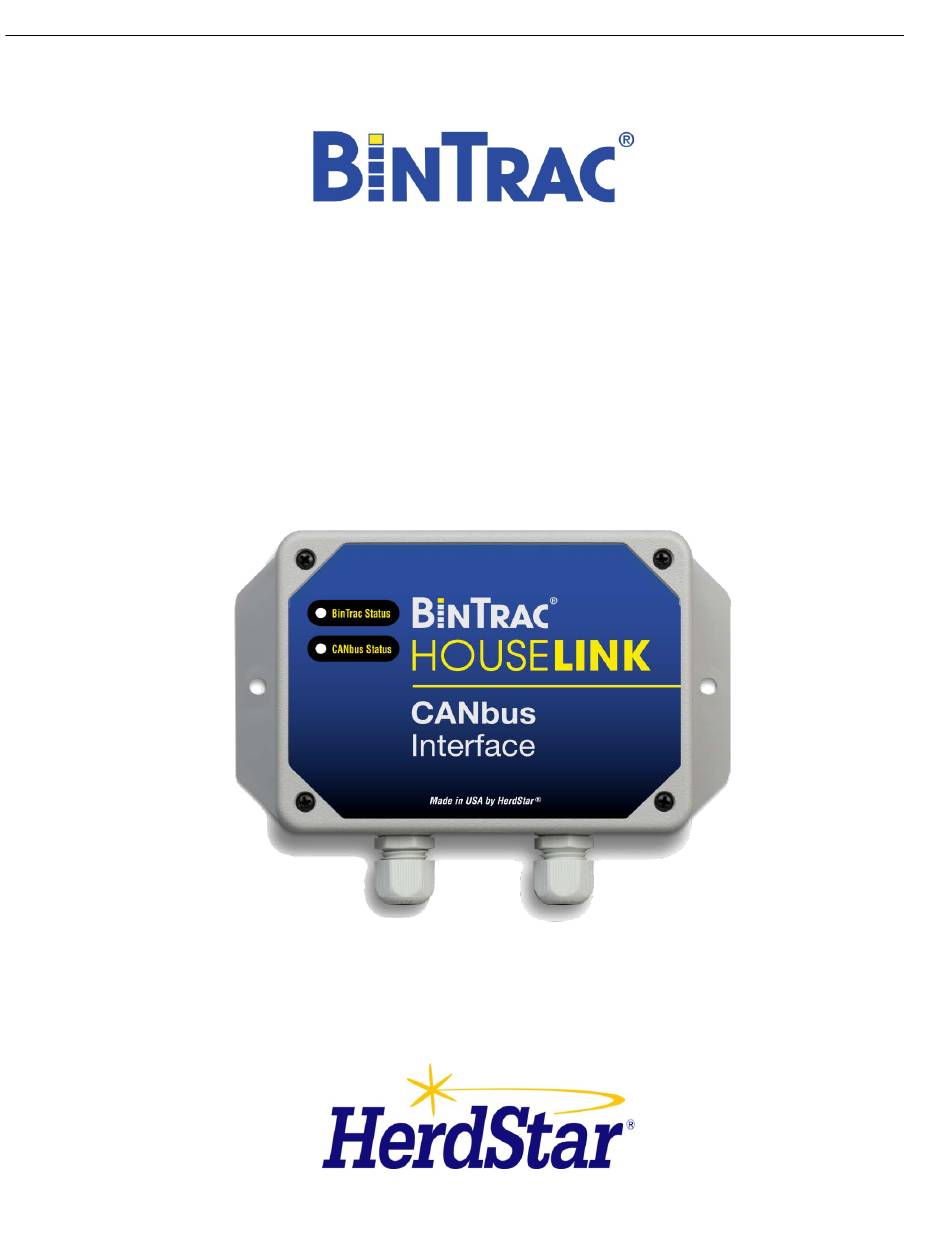

- Page 1 Installation and Operation Manual Installation and Operation Manual HouseLINK HL-10C HouseLink™ HL-10C 5/24/2017...
- Page 2 OPERATIONAL SPECIFICATIONS ........................6 WIRING DIAGRAM ..............................7 is a registered trademark of HerdStar, LLC. Copyright © 2017 HerdStar, LLC. All rights reserved. Printed in the USA 1400 Madison Avenue / Suite 504 / Mankato, MN 56001 PH: 507-344-8005 FAX: 507-344-8009 www.herdstar.com...
- Page 3 Installation and Operation Manual INSTALLATION DESCRIPTION ® The HouseLink HL-10C provides a CAN Bus interface to the Big Dutchman VIPER Control. The HouseLink HL-10C is designed to be used with the BinTrac Bin Weighing system. One HouseLink HL-10C can be connected to only one BinTrac indicator and can connect with a maximum of four bins.
- Page 4 Installation and Operation Manual INSTALLATION (continued) 5. The unit has an (8) position dip switch that need to be set up for configuration. Switches 1-7 are not used and switch 8 needs to be ON to turn on the termination resistor. All switches are set to OFF at the factory.
- Page 5 Installation and Operation Manual TESTING and CALIBRATION Reset/Test button: Once the unit is wired up properly, the unit can be put into one of five test modes. These modes are useful when setting up and testing with the VIPER controller. Test 1 –...
- Page 6 Installation and Operation Manual OPERATIONAL SPECIFICATIONS CAN Bus version: Compatible with ISO 11898 STANDARDS Operating Temperature Range: -40°C to +60°C (-40°F to +140°F) Operating Voltage Range: 10.5 VDC to 27.0 VDC Humidity: 5% to 95% (non-condensing) Environmental Air: No corrosive gasses permitted Enclosure Type: Non Sealed Wiring Type:...
- Page 7 Installation and Operation Manual WIRING DIAGRAM HouseLink™ HL-10C 5/24/2017...
