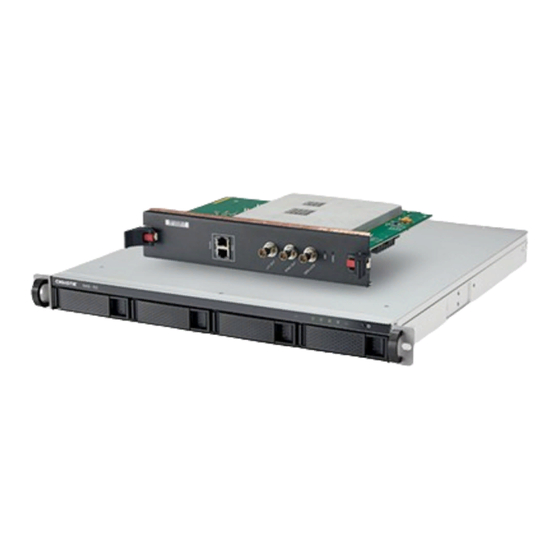

Christie IMB-S3 Instruction Sheet

Christie IMB-S3 Battery
Replacement
This document provides instructions for replacing the Christie IMB-S3 batteries using the Christie
battery replacement service kit.

General safety precautions

Hazard warnings also apply to accessories once they are installed in a Christie product that is
connected to power.
Warning! If not avoided, the following could result in death or serious injury.
• SHOCK HAZARD! Disconnect the product from AC before installing, moving, servicing, cleaning,
removing components, or opening any enclosure.
• EXPLOSION HAZARD! Allow sufficient time for the lamp to cool down before powering down the
product, disconnecting it from AC, and opening the lamp door.
• EXPLOSION HAZARD! Replacement battery must be of the correct type.
• EXPLOSION HAZARD! Dispose of the battery according to local area regulations.
Caution! If not avoided, the following could result in minor or moderate injury.
• Only Christie qualified technicians are permitted to open product enclosures.
• Observe all electrostatic precautions. Use a grounded wrist strap and insulated tools when
handling, servicing, or cleaning electronic assemblies.

Required components

Before replacing the batteries in the Christie IMB-S3, ensure the necessary components are available.
• Christie IMB-S3
• Christie Replacement Battery Kit (P/N: 003-006461-XX)

Required tools

Before you begin, ensure you have the following tools.
• Projector high security key
• Electrostatic wrist strap
®
• #2 Phillips screwdriver
Christie IMB-S3 Battery Replacement Instruction Sheet
020-102725-01 Rev. 1 (04-2018)
Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved.
©
1
