Summary of Contents for Maclean Energy MCE504

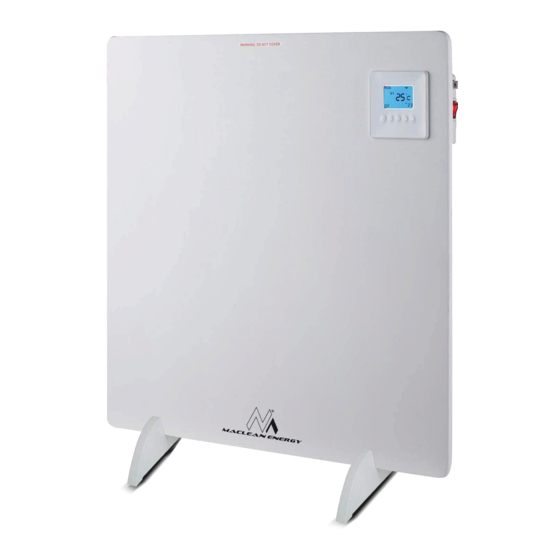

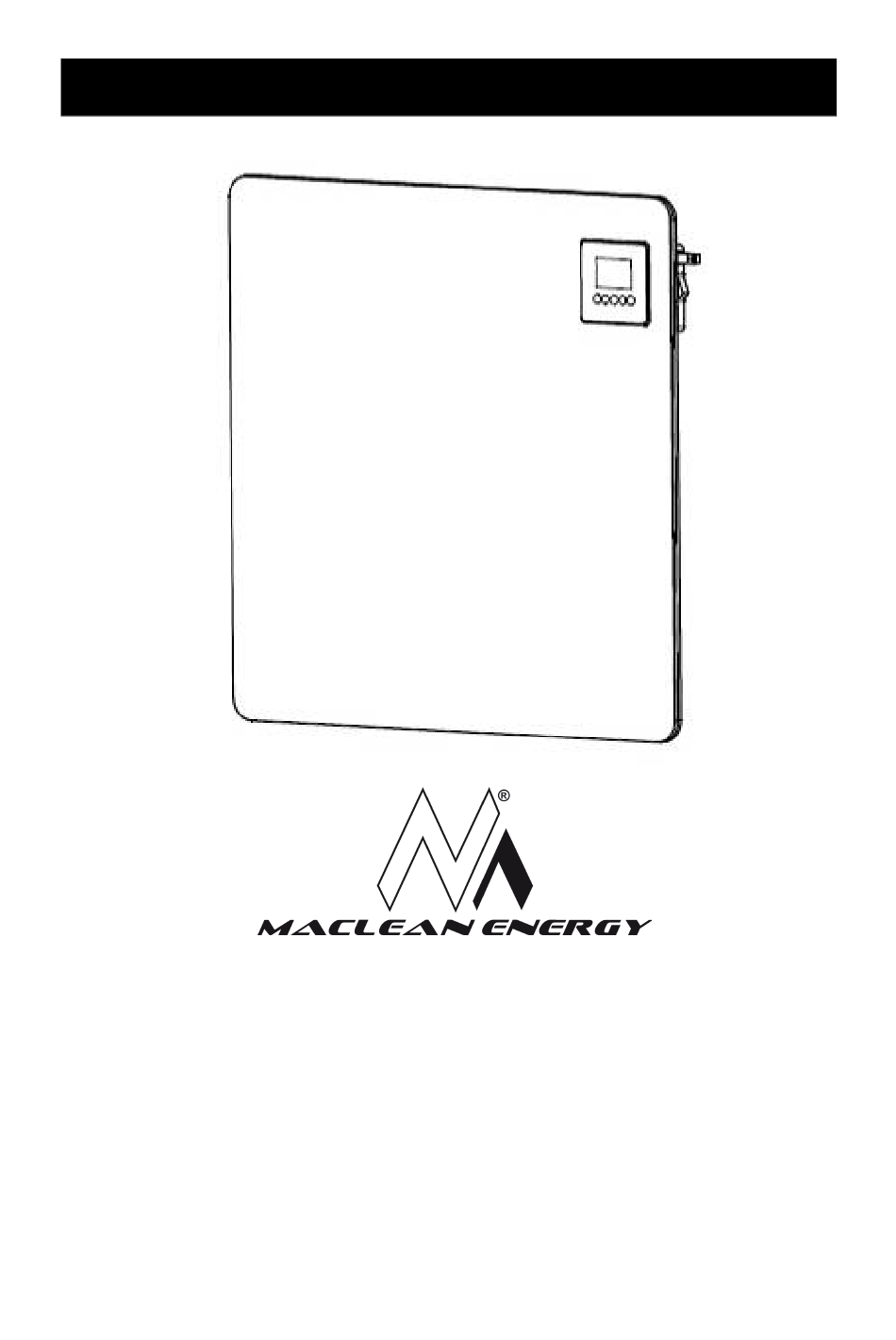

- Page 1 USER INSTRUCTION MANUAL EN I Wall Panel Heater Model: MCE504 READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe place for future reference. Do not allow anyone who has not read these instructions to assemble, light, adjust or operate the heater.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS HEATER. ... - Page 3 ARE DAMAGED THE APPLIANCE IS NOT TO BE USED BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION Heater is hot when in use. To avoid burned, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater and keep them away from the sides and rear.
- Page 4 SAVE THESE INSTRUCTIONS Unpack your package and find the heater together with the wall mounting accessories pack. 1 Mark the positions of the four holes to be drilled on the wall. (Better install the heater 20cm to 100cm height from the floor to get best performance.) 2 Drill the holes with the drill bit from the accessories pack.
- Page 5 -Heater: 1 piece -Accessories pack 1 set: 1xdrill bit (8mm) 4xrails fitting 4xscrew bolts 4xcaps for bolts 1xInstruction manual FREE STANDING INSTRUCTIONS 1. Place the free standing feet on the ground, keep the slots of both foot inline, distance the foot which is on the switch side at least 12cm and similar distance the other, and insert the panel into the slots lightly.
- Page 6 OPERATING INSTRUCTIONS To begin to use the heater, please follow these instructions: 1. Check the heater to be sure it is not damaged. Connect the power and turn on the switch on the side of product. The OF indicator on the lower left corner of the LCD screen will be lit to enter standby ℃...
- Page 7 ④ Press "+" or "-" button to set the shutdown reservation time; ⑤ Three seconds after the shutdown reservation setup is complete, the shutdown reservation time will be automatically saved; 8. Child lock button ① when the product is set up, press the child lock button for 3 seconds, and the "Child Lock Icon"...
- Page 8 indicator on the device stops flashing and turns into being long lit, then it means that the addition is complete. B:If there showed connect failed on the screen of phone，then need change to slowly flash state. ① On the faster flash state, press SET button for 5 seconds, the WIFI indicator on the LCD screen will be lit and enter the slowly flash state;...
- Page 9 ② Click the device to be operated and enter the device operation interface; ③ Click the power button which will display ON and enter the power-on state; ④Click on timing, timing in to the interface, click on add timing, choose the time clock, minutes, weekly status, adjust the switch state to close, click ok button to return to add timing interface, click the "save"...
-
Page 10: Control Panel Functions
④ Press SET button for 5 seconds, and WIFI indicator on the LCD screen will be lit and enter the flash state; ⑤ Open the "tuya smart" software on the mobile phone. Enter the phone number to get verification code; ⑥... -
Page 11: Electric Diagram
ELECTRIC DIAGRAM TROUBLE SHOOTING If your heater fails to operate, please follow these instructions: Ensure that your circuit breaker or fuse is working properly. Be sure the heater is plugged in and that the electrical outlet is working properly. ... -
Page 12: Specifications
screw bolt cap and unscrew the bolts to take off from the wall. For short term storage, just unplug the heater and leave it; for long term storage, you can dismantle from the wall or cover it with some material. SPECIFICATIONS Model No.: MCE204 Voltage: 220-240V, 50-60Hz...
