Summary of Contents for DURAVIT P3 Comforts 720151

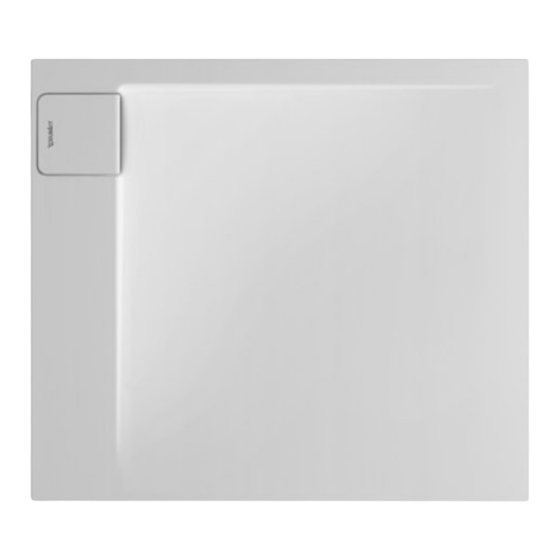

- Page 1 Leben im Bad Living bathrooms P3 Comforts Mounting instructions Shower tray made of DuraSolid A...
- Page 2 P3 Comforts # 720151 # 720152 # 720153 # 720154 # 720155 # 720156 # 720157 # 720158 # 720159 # 720160 # 720161 # 720162 # 720172 # 720173 # 720174 # 720175 # 720176 # 720177 # 720178 # 720179 # 720180 # 720181...
- Page 3 Important Information Installation Cleaning and Care DU_M_P3 Comforts_16.04.01...
- Page 4 Important information Regarding the mounting instructions The mounting instructions come included with the Duravit Products are in compliance with following codes: shower tray and should be read carefully prior to installation. Uniform Plumbing Code National Plumbing Code of America Explanation of key words and symbols...
- Page 5 # 720151 - # 720162 # 790262 Waterproof membrane (RedGard, Laticrete, others) Not supplied by Duravit. Should be purchased separately. DU_M_P3 Comforts_16.04.01...
-
Page 6: Installation
Installation Mark the drain opening. Inspect the shower tray for any damage that Cut drain flange about 1 7/8“ to fit against may have occured during transport. the wall. Drill 8 pilot holes using 1/4“ drill bit, about 5/8“ inside from the edge. Cut opening for the drain flange. - Page 7 After first coat is dry, apply second coat. Make sure all corners and seams are thoroughly After appropriate setting time for membrane, coated. water test. After water test, pull plug from the drain. Install the wall tile. Measure distance X between top of the shower Confirm that the area under the shower tray is tray opening and the drain flange.
- Page 8 Cut the drain throat from shower tray, File down the cut edge of the drain throat. Apply mortar on the floor. measurement X (step 12) plus 2 1/2“. Place the shower tray in place. Check the leveling and install the drain. Install the cover.
- Page 9 Use minimum 110 lbs to set the shower tray in Apply silicon. Leave this set for minimum of 24 hours. place. DU_M_P3 Comforts_16.04.01...
-
Page 10: Cleaning And Care
Cleaning and Care Damage to the product as a NOTICE result of using the wrong cleaning agent or cosmetics. >Do not use concentrated acids or alkalis (e.g. caustic soda/caustic potash/drain cleaner). >Avoid contact with acetone; rinse the tub with clean water immediately in case of contact. - Page 11 Duravit NYC Duravit USA, Inc. 105 Madison Avenue 2205 Northmont Pkwy., Ste. 200 New York, NY 10016 Duluth, GA 30096 Toll Free 888-DURAVIT Toll Free 888-DURAVIT Phone 212-686-0033 Phone 770-931-3575 Fax 212-686-8033 Fax 770-931-8454 info@us.duravit.com info@us.duravit.com www.duravit.nyc www.duravit.us...
