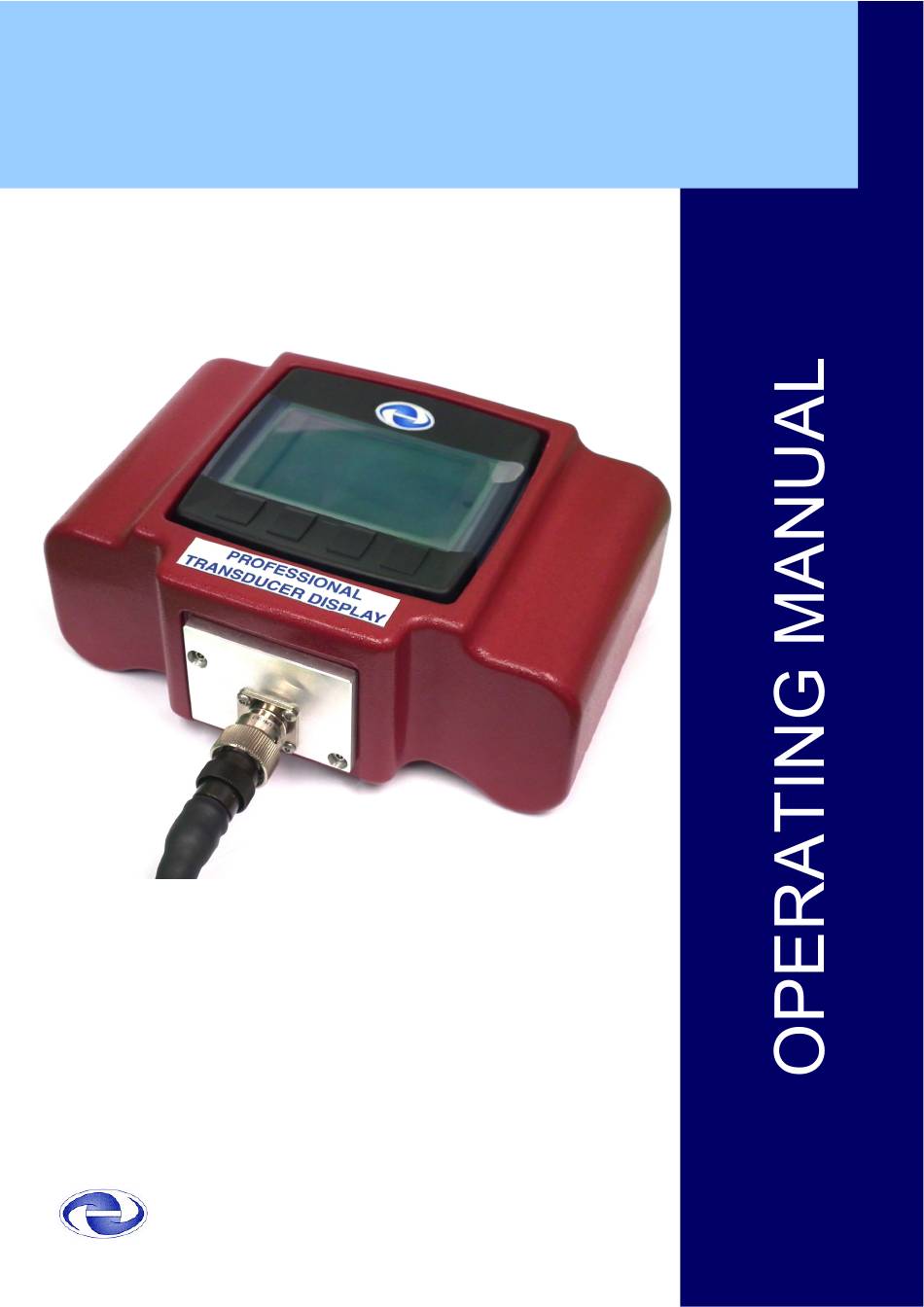

- Page 1 PROFESSIONAL TRANSDUCER DISPLAY Advanced Witness Systems Ltd 1010 1010 1010 1010...
- Page 2 1010 Professional Transducer Display © AWS Ltd. Fifth Print 2020 Page 2 Advanced Witness Systems Ltd 1010 Professional Transducer Display Operating Manual...
- Page 3 INDEX 1010 Professional Transducer Display Professional Transducer Display Operating Manual (Model No: 1010) INDEX Description Page 4 Specification Page 6 Quick Start Guide Page 8 Calibration Guide Page 13 Page 3 Advanced Witness Systems Ltd 1010 Professional Transducer Display Operating Manual...

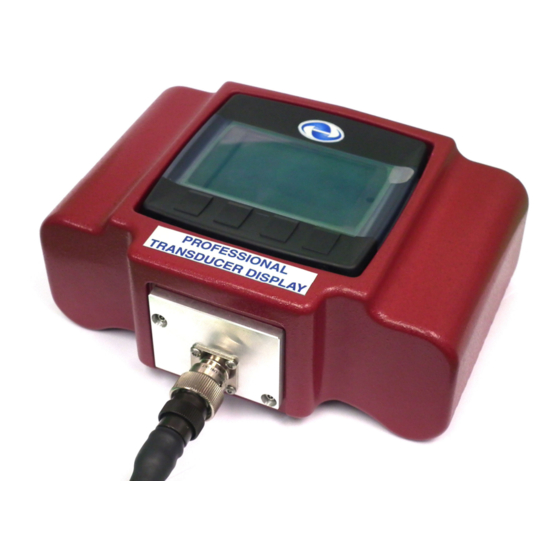

- Page 4 The Advanced Witness Systems Professional Transducer Display (From this point onwards, referred to as the PTD) is designed to power, process and display readings from all AWS I Series Torque Transducers (IITTs) and Intelligent Instrumented Transducer Cables (IITCs). The PTD boasts a rugged design, with an LCD...
-
Page 5: Box Contents
DESCRIPTION 1010 Professional Transducer Display BOX CONTENTS: PTD-1010M, PTD-1010B or PTD-1010H (Batteries fitted to 1010B or 1010H) Mains power Supply with UK and EU mains connections Operating Manual Display Stand (Optional) Pushbutton for turning On/Off switch (1010M PTD on (1010B /1010 Only) H Only Red, Yellow... - Page 6 Quick Start 1010 Professional Transducer Display SPECIFICATION There are three models of the AWS PTD: a mains powered version (1010M), a battery powered version (1010B) and an extreme environment version (1010H). On all three versions the casing has a rugged solid design to withstand high shock damage.
-
Page 7: Specification
Supplied with 12V DC mains power supply with UK and EU mains connections. Accuracy: Better than 1% of reading from 4% to 100% F.S.D when used with AWS Intelligent In-line Torque Transducers. Display is accurate to 0.1cNm, dependant on units selected. Data Output:... - Page 8 1010 Professional Transducer Display QUICK START GUIDE The AWS PTD has 4 soft key buttons and 1 pushbutton/ switch. The soft key button effects are dependant on what the screen shows. A summary of the effects can be found on page 10.
- Page 9 Quick Start 1010 Professional Transducer Display If “Yes” is selected the PTD will use the settings selected at its last power down. If “No” is selected the user will then be prompted to select 1 peak auto cancel, and/or set limits, units of measurement, and the mode of operation.
- Page 10 Quick Start 1010 Professional Transducer Display When the reading is within the Lower and Upper limits the green LED’s will light up. If the torque reading is at or above the “Upper limit” the red LED’s will light up. If the torque reading is at or below “Lower limit”...
- Page 11 Quick Start 1010 Professional Transducer Display PEAK: Peak mode will display the first peak in a torque signal that is detected. This 1 peak can be used to check the calibration of click type torque tools. After a peak in torque signal is detected the displayed torque reading is automatically sent to a PC via RS232.
- Page 12 Quick Start 1010 Professional Transducer Display KEY CHART Soft key Screens where Effect Symbol used. Select units, Accept input/selected item. select mode, set limits Select units, Back to previous screen, push select mode, set and hold to turn unit off. limits, reading Increase selected number.
-
Page 13: Calibration Guide
Calibration Guide 1010 Professional Transducer Display CALIBRATION GUIDE The AWS PTD unit can be used in conjunction with a standard to calibrate a torque transducer. BUTTONS Functions (as shown on screen) Increases the selected number, cycles through zero. Changes selected units. - Page 14 Calibration Guide 1010 Professional Transducer Display 8. Apply the amount of torque for full scale. Allow this to settle for 2 Minutes. 9. Press and the reading will show the applied torque. 10. Turn the unit off and then on. The transducer is now calibrated.
- Page 15 1010 Professional Transducer Display Page intentionally left blank Page 15 Advanced Witness Systems Ltd 1010 Professional Transducer Display Operating Manual...
- Page 16 Advanced Witness Systems Ltd Unit 8, Beaumont Business Centre, Beaumont Close Banbury, Oxfordshire OX16 1TN Telephone: 01295 266939 Fax: 01295 263503 sales@awstorque.co.uk www.awstorque.co.uk...
