Actis VSBC-6872 Series User Manual

Vmebus single board computer with freescale mpc8270 processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
sales@artisantg.com
artisantg.com
(217) 352-9330 |
|
Click HERE
Find the ACTIS Computer VSBC-6872/FHE-A at our website:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSBC-6872 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Actis VSBC-6872 Series

  • Page 1 (217) 352-9330 | Click HERE Find the ACTIS Computer VSBC-6872/FHE-A at our website:...
  • Page 2 USER'S GUIDE VSBC-6872 series VMEbus Single Board Computer with Freescale MPC8270 processor Revision 1.4 3812 ACTIS Computer www.actis-computer.com support@actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 4 ACTIS Computer products are not designed, intended, or authorized for use as components in systems intended to support or sustain life, or for any...
  • Page 5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 6: Table Of Contents

    Multi-protocol serial ports SCC1..SCC4................65 Board jumpers...........................67 Serial Communication port jumpers ...................68 IEEE1149.1 Test Access Port, P11 Connector................69 SPI/SMC2/I2C connector......................69 S-ATA ports..........................70 CompactFlash connector......................70 VMEbus P1 connector.......................71 http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 7 VSBC-6872 series VMEbus P2 connector.......................72 7.10 PCI Mezzanine Card (PMC) ......................73 7.10.1 Installing a PMC........................73 7.11 PMC interface, J11 connector....................74 7.12 PMC interface, J12 connector....................75 7.13 PMC interface, J14 connector....................76 Software description ........................77 ECMon commands........................77 8.1.1 Command line and syntax rules ..................77 8.1.2...
  • Page 8 Figure 18 - Serial port jumpers .......................68 Figure 19 - Test Access Port connector....................69 Figure 20 - S-ATA connector description ....................70 Figure 21 - PMC module installation.......................73 http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 10 Table 39 - J12 connector pin assignment ....................75 Table 40 - J14 connector pin assignment ....................76 Table 41 - ECMon command line editing shortcut keys................78 Table 42 - ECMon command overview....................78 http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 11 While efforts have been made to ensure the accuracy of this document, and although the information contained in this document is believed to be correct, ACTIS Computer S.A. cannot be held responsible for any error or for any resulting consequential losses. ACTIS Computer S.A. may change or improve the specifications of its products at any time without prior notification.

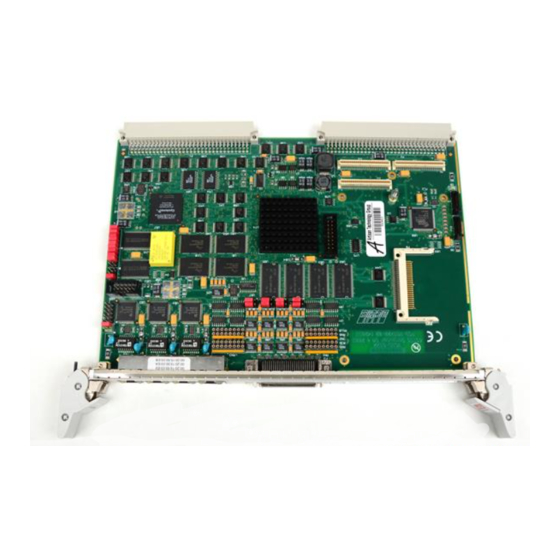

  • Page 12: Figure 1 - Vsbc-6872 Photograph

    User's guide Photograph Figure 1 - VSBC-6872 photograph http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 13 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 14: Introduction

    This PMC interface supports 32-bit modules, with a PCI clock frequency of 31.25 or 62.5 MHz. The VSBC-6872 can be customized through a wide range of PMC modules available from ACTIS Computer or third-party manufacturers. The PMC module typical applications are network controller, storage controller, acquisition system, etc.

  • Page 15: Features

    VSBC-6872 series 1.1 Features Processor Freescale MPC8270 PowerQUICC II processor CPU - 450 MHz CPM - 250 MHz 60x bus - 100 MHz Memory SDRAM 128-256 MByte Flash memory 16-32 MByte (2 swappable banks) SRAM 1-2 MByte Serial EEPROM 8 kbit...

  • Page 16: Vsbc-6872 Block Diagram

    RS-485 Panel RS-485 RS-485 RS-485 Interface SCSI Interface Interface Connection on the VME Interface VME P2 VME P1 backplane slot A Figure 2 - Block diagram http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 17: Component Location

    VSBC-6872 series 1.3 Component location Board jumpers JTAG CompactFlash Card S-ATA 2 S-ATA 1 Figure 3 - Component location - top assembly ACTIS Computer Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 18: Getting Started

    SLOT1 jumper has to be plugged in. For all other locations, the System Controller of the VSBC-6872 must be disabled and the SLOT1 jumper must be removed. http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 19: Ecmon Monitor

    VSBC-6872 series 2.6 ECMon monitor The VSBC-6872 is provided with an installed board monitor utility. It features debugging capability and bootloader support with a user interface through a console port. It supports the primary board initialization for memory and peripheral bus controllers, and offers an easy to use board setup for board support package operation.

  • Page 20: Functional Description

    60x bus is used to access all the memories (SDRAM, flash, SRAM) and other devices with CPU access type (CompactFlash). A Communication Processor Module manages the communication protocol of Ethernet ports and serial ports. Figure 4 - Freescale MPC8270 block diagram http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 21: Sdram Controller

    VSBC-6872 series 3.2 SDRAM controller SDRAM memory is handled by the SDRAM timing state machine contained in the MPC8270. It is controlled by Chip Select 1. The SDRAM state machine provides an interface to synchronous DRAMs, using SDRAM pipelining, bank interleaving, and back-to-back page mode to achieve maximum performance.

  • Page 22: Memory Management Unit

    For details about chip select assignment, please refer to 5.1 Peripheral Chip Select. For detailed specification and register setting, please consult the following literature: Freescale literature described in the hardware configuration chapter http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 23: Flash Memory

    VSBC-6872 series 3.5 FLASH Memory Two banks of 32-bit non-volatile FLASH memory are supported. Each bank is typically formed by two 32 to 64 Mbit devices, in accordance with the memory board configuration. These Flash devices are connected to the MPC8270 60x Bus which is managed by the memory controller.

  • Page 24: Real Time Clock

    To avoid draining battery do NOT place SNAPHAT pins into conductive foam. For detailed specification and register setting, please consult the following literature: "ST Microelectronics M48T37V datasheet" "ST Microelectronics AN934 Timekeeper calibration application note" http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 25: Compactflash Card Interface

    VSBC-6872 series 3.8 CompactFlash card interface A Type I CompactFlash card interface operating in True IDE mode is provided. It is connected to the MPC8270 60x bus and requires the use of a dedicated UPM configuration. CompactFlash IORD# signal is connected to MPC8270 PGPL1 pin and IOWR# signal to PGPL2 pin.

  • Page 26: Fast Ethernet Communication Ports

    NRZ, NRZI, FM0, FM1, Manchester and Differential Manchester. If the clock recovery function is not required (that is synchronous communication), then the DPLL can be disabled, in which case only NRZ and NRZI are supported. http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 27: Figure 6 - Scc Block Diagram

    VSBC-6872 series A SCC can support standard modem interface signals, RTS, CTS and CD. If required, software and additional parallel I/O lines can be used to support additional handshake signals. Figure 6 - SCC block diagram The VSBC-6872 provides a configurable physical interface for each of the four serial communication ports.

  • Page 28: Interrupt Controller

    (Port C GPIO). For detailed information about the Interrupter controller setting, please refer to 5.4 Multiplexed General Purpose I/O ports 5.3 Interrupt sources. Figure 8 - MPC8270 interrupt controller http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 29: Direct Memory Access Controller

    VSBC-6872 series 3.12 Direct Memory Access Controller The PowerQUICC II has two physical serial DMA (SDMA) channels. The CPM implements two dedicated virtual SDMA channels for each FCC, MCC, SCC, SMC, SPI and I − one for each transmitter and receiver.

  • Page 30: Vpd Eeprom (Vital Product Data)

    Table 8 - VPD EEPROM address The VPD memory structure is defined as follows. Field Offset Size Values Magic Cookie 0x00 0x41 0x43 0x54 0x49 0x53 0x00 0x00 0x00 ("ACTIS") Size of EEPROM 0x08 0x01 0x00 Reserved 0x0a 0x00 0x00 0x00 0x00 Date...

  • Page 31: Mpc8270 Pci Bus

    The VSBC-6872 allows to connect two S-ATA hard disk drives via a dual S-ATA controller. The S-ATA function is available in commercial temperature only. For detailed specification and register setting, please contact Actis Computer. ACTIS Computer Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 32: Vmebus Interface

    UPM configuration must comply with the following description: RAM Word # RAM Word Value 0xccfc'ec00 0x00fc'fc40 0x00fc'fc40 0xf0fc'ec04 0xf3fd'ec01 0xccfc'ec00 0x00fc'fc40 0x00fc'fc40 0xf0fc'ec04 0xf3fd'ec01 0xffff'ec01 Table 13 - UPM initialization for bridge access http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 33: Vmebus Master

    VSBC-6872 series 3.15.2 VMEbus Master The VSBC-6872 is VME Master A32/A24/A16/D32/D16/D8/RMW The VME master can use two windows to access the VMEbus. They are controlled by the UPM, with the chip selects CS6 and CS7. All VME Chip Selects take a CPU space of 64 MBytes.

  • Page 34: Table 15 - Bridge Registers Accessible From Vmebus

    MB or 2 MB option). It occupies 1 or 2 MBytes and is enabled by setting XSAV24[EN] (Figure 12). The advantage of this window over the one defined by VSBA24 is that the whole SRAM is visible in a single VME window. http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 35: Figure 11 - Vme Slave Window Defined By Vsba24

    VSBC-6872 series VME A24 space 16MB SRAM: 1MB VSWA24[SRA] VSBA24[A] VSBC-6872 Flash bank: 8MB VSBA24 slave window VSWA24[FLA] 512kB 256kB 32kB RTC: 32kB Figure 11 - VME Slave window defined by VSBA24 VME A24 space 16MB XSAV24[A] SRAM: 1MB/2MB VSBC-6872...

  • Page 36: Vmebus Requester

    To clear this IRQ, the host processor must write any value to the VSMAIL register. Please refer to the VSMAIL VSBA24 registers description for more information. http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 37: Vmebus System Controller

    VSBC-6872 series 3.15.8 VMEbus System Controller The VSBC-6872 provides System Controller capabilities that can be enabled or disabled with the SLOT1 jumper. Please refer to 7.2 Board jumpers for jumper configuration. The VSBC-6872 System Controller provides the following functions: •...

  • Page 38: Bridge Registers

    Local offset is the offset from MPC8270 CS4. VME offset is the offset from A16 VME slave base address. A detailed description of each register is given in the following pages. http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 39 VSBC-6872 series SRESR Software Reset Register Address from MPC: CS4 + 0x1001 Address from VME: A16 base address + 0x09 Access type: Write Only This register allows to generate an on-board Software or Power-On Reset. 8270 SRESET PORESET Value Reset...
  • Page 40 32 or 256 µs. It can even be separately disabled on VME accesses. If you enable the 60x Bus Monitor of the bridge, make sure the Bus Monitor of the host processor is disabled (SYPCR[PBME] set to zero). http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 41 VSBC-6872 series VMBA VME Master Control Register Address from MPC: CS4 + 0x1051 Address from VME: Access type: Read/Write This register is used to configure the VME Requester (release mode and request level) and activate the RMW cycle (on master access).
  • Page 42 Name Description AM(2..0) VME Address Modifier bits AM2..AM0 AM5..AM3 are automatically selected based on the VME addressing space (A32, A24, A16). http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 43 VSBC-6872 series VMAMB VME Master: AM for window B Address from MPC: CS4 + 0x105d Address from VME: Access type: Read/Write This register specifies the low-order bits of the VME Address Modifier (window B). 8270 Value Reset x: reserved, a zero is returned when read...
  • Page 44 IRQ, no IACK cycle is started and value 0x00 is returned. Note that the VME interrupt must not be masked to be acknowledged (report to VHM register description). Reading this register when there is no pending IRQ is not recommended. http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 45 VSBC-6872 series VINTER VME Interrupter Command Register Address from MPC: CS4 + 0x1067 Address from VME: Access type: Read/Write This register directs the VME Interrupter to generate an interrupt on the level programmed in VIVEC[IL] or VIL[IL]. 8270 Value VINTER...
  • Page 46 The register content is only affected by a VME write access (i.e. host processor write access only clears MPC IRQ6 and does not change register’s value). http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 47 VSBC-6872 series VSBA24 VME Slave Base Window A24 Address from MPC: CS4 + 0x1069 Address from VME: A16 base address + 0x03 Access type: Read/Write This register specifies the VME Slave base address in A24 addressing space. 8270 WinA24On MailOn...
  • Page 48 VME Arbiter timeout period 00: disabled 01: 16 µs 10: 24 µs 11: 32 µs FAIR VME Requester request mode 0: normal mode 1: FAIR mode http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 49 FVER7 FVER6 FVER5 FVER4 FVER3 FVER2 FVER1 FVER0 Value Reset n/d: not determined by bridge at reset, Actis internal number Name Description FVER(7..0) Bridge firmware version JMPR Jumper Position Register Address from MPC: CS4 + 0x1085 Address from VME: Access type: Read Only This register provides a software mean for reading the jumper configuration.
  • Page 50 232 or RS-422/RS-485/V.35) and the other determines whether the mode selection is taken from the jumper or from SCCR[MODE]. Please refer to 7.3 Serial Communication port jumpers for jumper configuration. http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 51 VSBC-6872 series XSAV24 Extended SRAM Access from VME A24 Control Register Address from MPC: CS4 + 0x1089 Address from VME: A16 base address + 0x0b Access type: Read/Write This register specifies a single 1MB/2MB A24 window for accessing the whole SRAM memory.
  • Page 52 The SRAM start address must be aligned on a word (4-byte) boundary (that is, bits A(30..31) are zero) DMASAH register specifies the high order bits of the SRAM start address. http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 53 VSBC-6872 series DMAVAH DMA VME Start Address High order bits Register Address from MPC: CS4 + 0x1094 Address from VME: Access type: Read/Write This register specifies the high order bits of the VME start address used by the DMA controller.
  • Page 54 1: 16-bit (D16) SPACE(1..0) VME Addressing Space 00: A32 01: reserved 10: A16 11: A24 Supervisory/Non-privileged Access 0: Non-privileged 1: Supervisory PROGD Program/Data Access 0: Program 1: Data http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 55 VSBC-6872 series DMASIZ DMA Transfer Size Register Address from MPC: CS4 + 0x109a Address from VME: Access type: Read/Write This register specifies the number of words (4-byte) to be transferred during a DMA transaction. This is a 16-bit register. 8270...
  • Page 56 If DMACSR[IEN] is set, a local interrupt is sent to the host processor (IRQ1) when the DMA transfer is done and DMACSR[IRQ] is set. The interrupt is cleared when writing a ‘1’ to DMACSR[IRQ]. http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 57 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 58: Board Resources

    Since some specific applications can require a different setting, this memory map setting need to be defined by experimented software engineers, for further assistance contact ACTIS Computer technical support. http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 59: Interrupt Sources

    VSBC-6872 series 5.3 Interrupt sources The following table provides the interrupt request signal assignment with their corresponding sources. MPC IRQ# Source not used Bridge DMA Controller/VME Interrupt Handler PMC INTA PMC INTB/JTAG probe PMC INTC PMC INTD VME Mailbox S-ATA Controller...

  • Page 60: Multiplexed General Purpose I/O Ports

    FCC1_MII_TX_EN FCC2_MII_RX_ER FCC1_MII_TX_ER FCC2_MII_TX_EN FCC1_MII_CRS FCC2_MII_RX_DV FCC1_MII_COL FCC2_MII_TX_ER Table 22 - GPIO port A & B controller setting ‘not used’ I/Os must be configured as input http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 61: Table 23 - Gpio Port C & D Controller Setting

    VSBC-6872 series Port C Description Port D Description /FCC1_MII_IRQ /FCC2_MII_IRQ /FCC3_MII_IRQ /IRQ_RTC not used not used not used not used not used not used /IRQ_CF RTC_WDI /SCC4_CD SMC1_RXD /SCC4_CTS SMC1_TXD /SCC3_CD SCC4_BRGO (SCC4_TXC) /SCC3_CTS /SCC1_DTR /SCC2_CD /SCC2_DTR /SCC2_CTS /SCC3_DTR /SCC1_CD...

  • Page 62: Technical Characteristics

    MTBF calculated with 90% confidence Based on the Mil-Hdbk-217 FN2 specification, with the parameters: 1. Environment: GB, GC - Ground Benign, Controlled 2. Temperature: 30 ° C http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 63 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 64: Hardware Description

    Both connectors provide two indicator LEDs which shows network activities as follows: LED color Description Yellow Collision Green Link and network activity Table 25 - Network status LEDs The Link LEDs are blinking during system reset. http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 65: Console Port

    VSBC-6872 series 7.1.2 Console port One RS-232 console is available for user interface. This serial port is handled by the MPC8270 SMC1 controller. This serial link provides a front connector through a RJ45 8-pin connector, with the following pin assignment.

  • Page 66: Multi-Protocol Serial Ports Scc1

    CTS3 CTS3 RXCLK3 RXCLK3+ RXCLK3+ RTS3 RTS3 RTS3 RXD3- RXD3 RXD3+ TXCLK3 TXCLK3+ TXCLK3+ TXD3 TRXD3+ TXD3+ TRXD3- TXD3- Table 28 - Serial port pin assignment http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 67 TXD1- Table 28 - Serial port pin assignment (cont’d) Note that this pin assignment is compliant with Actis Computer’s standard serial port on 50-pin SCSI connector specification. Signals CD and DTR of the SCCs are not present on the serial port connector.

  • Page 68: Board Jumpers

    VSBA(15..11) defines the VME A16 Slave Base Address (access to bridge registers from the VMEbus). : indicates that a jumper is plugged-in in default configuration. Table 29 - Board jumper configuration http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 69: Serial Communication Port Jumpers

    VSBC-6872 series 7.3 Serial Communication port jumpers Each of the four serial communication ports has two jumpers for the physical interface mode configuration (RS-232 or RS-422/RS-485/V.35). SCC4 SCC3 SCC2 SCC1 Figure 18 - Serial port jumpers The following tables give the jumper location and configuration:...

  • Page 70: Ieee1149.1 Test Access Port, P11 Connector

    TX on pin 7 and RX on pin 8 MC2 TX/RX 2C SDA/SCL SDA on pin 9 and SCL on pin 10 Table 33 - SPI/SMC2/I2C connector pin assignment http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 71: S-Ata Ports

    VSBC-6872 series 7.6 S-ATA ports The S-ATA port 1 and port 2 are respectively available on P9 and P10 connectors. Figure 20 - S-ATA connector description Name Direction Description Ground Output Transmit data + Output Transmit data - Ground Input...

  • Page 72: Vmebus P1 Connector

    IRQ5* IRQ4* IRQ3* IRQ2* IRQ1* -12 V +5 V STDBY +12 V +5 V +5 V +5 V Table 36 - VMEbus P1 connector pin assignment http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 73: Vmebus P2 Connector

    VSBC-6872 series 7.9 VMEbus P2 connector PMC_IO2 +5 V PMC_IO1 PMC_IO4 PMC_IO3 PMC_IO6 PMC_IO5 PMC_IO8 PMC_IO7 PMC_IO10 PMC_IO9 PMC_IO12 PMC_IO11 PMC_IO14 PMC_IO13 PMC_IO16 PMC_IO15 PMC_IO18 PMC_IO17 PMC_IO20 PMC_IO19 PMC_IO22 PMC_IO21 PMC_IO24 PMC_IO23 PMC_IO26 +5 V PMC_IO25 PMC_IO28 PMC_IO27 PMC_IO30 PMC_IO29...

  • Page 74: Pci Mezzanine Card (Pmc)

    Plug carefully the PMC module in the PMC slot location. • Verify that the EMC gasket is correctly positioned around the PMC front panel Figure 21 - PMC module installation http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 75: Pmc Interface, J11 Connector

    VSBC-6872 series 7.11 PMC interface, J11 connector The J11 and J12 connectors provide the 32-bit PCI interface signals. Signal Signal <PULL-DOWN> -12V INTA# INTB# INTC# PRESENT# INTD# GNT# REQ# 3.3V AD31 AD28 AD27 AD25 CBE3# AD22 AD21 AD19 3.3V AD17...

  • Page 76: Pmc Interface, J12 Connector

    AD16 #CBE2 #TRDY 3.3V #STOP #PERR 3.3V #SERR #CBE1 AD14 AD13 M66EN AD10 3.3V 3.3V <PULL-UP> <PULL-UP> 3.3V <PULL-UP> Table 39 - J12 connector pin assignment http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 77: Pmc Interface, J14 Connector

    VSBC-6872 series 7.13 PMC interface, J14 connector The J14 connector contains the user I/Os of the PMC module. These I/Os are routed to the VMEbus P2 connector according to the ANSI/VITA 35-2000 standard. Please refer to 3.14.1 PMC expansion slot PMC-P4 to VME-P2 mapping.

  • Page 78: Software Description

    The VSBC-6872 supports industry-standard Real-Time Operating Systems (RTOSs) such as VxWorks and Linux. Other BSP's are available on request. For detailed BSP information, please consult the ACTIS Computer software department, or contact your local ACTIS Computer representative for up-to-date information about product availability literature 8.1 ECMon commands...

  • Page 79: Command Descriptions

    VSBC-6872 series Note that to enter the decimal value 13 without prefix, the value 'D' must be used instead of '0D' because ECMon will interpret this one as the decimal prefix (such as the decimal value 11, use 'B' instead of '0B').
  • Page 80 If the <entry> parameter is set with the value 0xFFFFFFFF, the execution entry is searched with the rboot command on the downloaded file. See also dpart, rboot, External Routine http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 81 VSBC-6872 series dload Load binary from a fixed-disk Syntax dload [ <device> [ <offset> [ <filename> [ <partition> ] ] ] ] Parameters device defines address of the fixed-disk and the format of the file to be loaded. While <device> = AAAAAAAB...
  • Page 82 <value> data (e.g. env AUTOBOOT "nboot 2 0 0 bootfile"). The 'TERM' environment variable can be set to 'ansi' to provide an ANSI console. See also External Routine http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 83 VSBC-6872 series Execute user program Syntax go <address> Parameters address defines the address of the external routine Description The go command is used to call an external routine at address <address>. See also External Routine help Display help Syntax help { <keyword> }...
  • Page 84 <size> parameter defines the number of items (depend on the command used) and not the number of bytes. the bus error (or machine check error) is handled. See also pflash http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 85 VSBC-6872 series mdb, mdw, mdl Display the content of memory Syntax mdb <address> [ <count> ] mdw <address> [ <count> ] mdl <address> [ <count> ] Parameters address defines the base address to be displayed count defines the number of items to be displayed...
  • Page 86 (mmb uses a byte size, mmw uses a word size and mml uses a long-word size). Please note that the bus error (or machine check error) is handled (a 'X' character is displayed). See also http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 87 VSBC-6872 series mmap Display memory map Syntax mmap Description The mmap command displays the memory map of the board. See also nboot Load binary and boot from TFTP server Syntax nboot [ <device> [ <offset> [ <entry> [ <filename> [ <host> [ <client> [ <gateway>...
  • Page 88 The nping command should be used to check if a host is alive. If the client's IP address is missing, this command requests a BootP/DHCP and a RARP server to retrieve the missing information. See also http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 89 VSBC-6872 series nsave Upload memory to TFTP server Syntax nsave <device> <address> <size> <filename> <host> <client> <gateway> [ <netmask> ] ] ] ] Parameters device defines ethernet port and the format of the file to be loaded. While <device> = 0AAB...
  • Page 90 In case of a valid data structure has been found, the rboot command call the routine just after it (Normally, the called routine should not return). See also External Routine http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 91 VSBC-6872 series reset Provide an hardware reset Syntax reset Description The reset command provides an hardware reset (restart the firmware from the boot ROM). See also sboot Load binary and boot from serial port Syntax sboot [ <device> [ <offset> [ <entry> ] ] ]...
  • Page 92 The time command can be used to display the current date/time from the time-keeper or can be used to set the time-keeper with the <date & time> parameter. See also http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 93 0x62 /* Ethernet Address #3 */ #define VPD_OPTIONS_USER 0x80 /* Start of user's parameters */ For more information about the VPD structure, contact Actis Computer. See also ACTIS Computer Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 94 /* PPC - R4 = getenv( "BOOTARGS" ) */ Normally, the called routine should not return (if not, the called routine must not corrupt the ECMon's configuration). See also http://support.actis-computer.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
