Connecting The Projector - Acer PD112 User Manual

Svga single chip 0.55” dlp projector.
Hide thumbs

Advertisement

Table of Contents
1. Power Cord
2. VGA Cable
3. Composite Video Cable
4. Audio Cable Jack/RCA
(optional)
5. S-Video Cable
6. VGA to Component/HDTV
Adapter
7. USB Cable (optional)

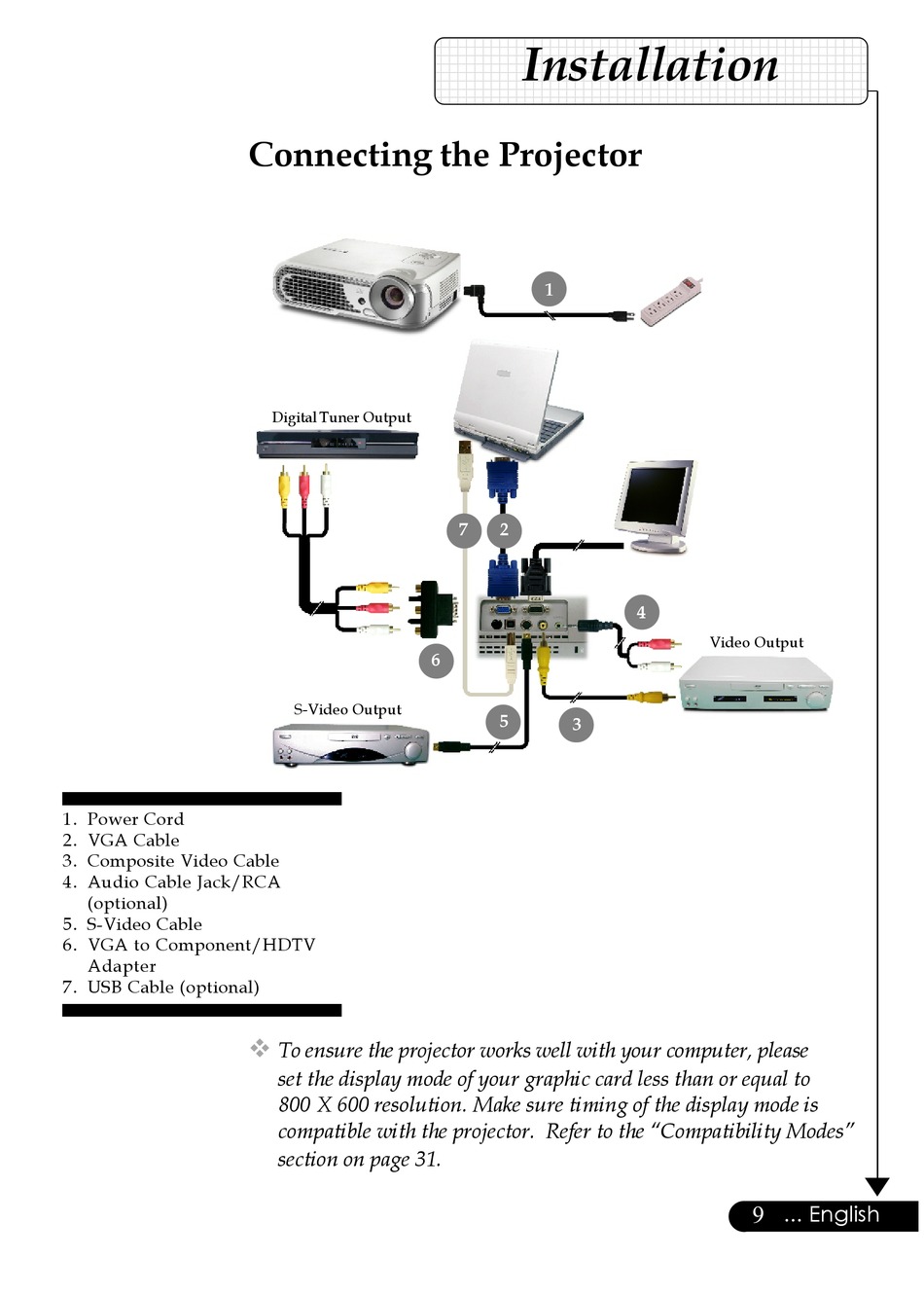

Connecting the Projector

Digital Tuner Output
S-Video Output
To ensure the projector works well with your computer, please
set the display mode of your graphic card less than or equal to
800 X 600 resolution. Make sure timing of the display mode is
compatible with the projector. Refer to the "Compatibility Modes"
section on page 31.
