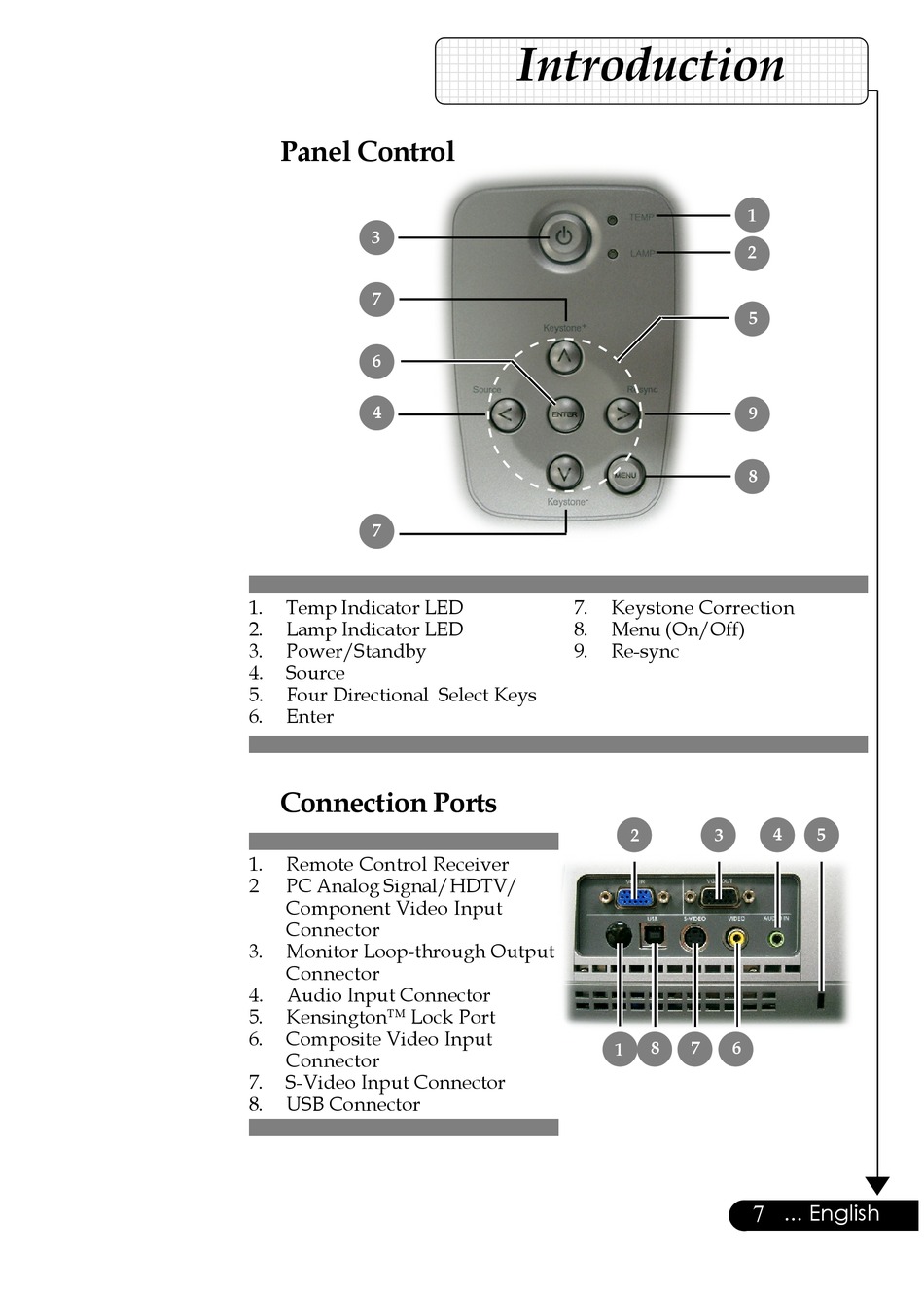

Panel Control

3
7
6
4
7
1.
Temp Indicator LED
2.
Lamp Indicator LED
3.
Power/Standby
4.
Source
5.
Four Directional Select Keys
6.
Enter

Connection Ports

1.
Remote Control Receiver
2
PC Analog Signal/HDTV/
Component Video Input
Connector
3.
Monitor Loop-through Output
Connector
4.
Audio Input Connector
5.
Kensington
Lock Port
TM
6.
Composite Video Input
Connector
7.
S-Video Input Connector
8.
USB Connector
