Cameo Userguide
Product Overview
Thank you for purchasing a laser module from the Cameo range. This emits a red/IR spot or projection.
Two models are available, either a CW version (1250) or the Gated version (1260). The Gated version
incorporates a TTL modulatable input capable of 100Khz.

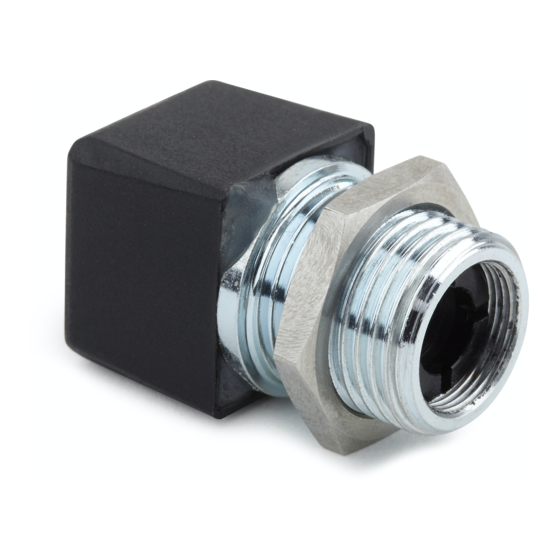

The Cameo range is a miniature laser module that has a threaded barrel for easy bulkhead mounting
which also ensures good thermal contact between module and heat sink. This new concept in laser
module design allows a laser diode, an adjustable collimating lens and a drive circuit to be incorporated
within a body which is just 23mm long and all without compromising the performance. The Cameo
offers high output power stability with transient and polarity protection, as well as electrical isolation
between diode and case. It has a latching connector that improves reliability.
If you have any queries or require help when using the Cameo range please call us on +44(0)1495
212213 or contact your local representative.
Advertisement
Table of Contents
Related Manuals for Global Laser Cameo Series
Summary of Contents for Global Laser Cameo Series
- Page 1 Cameo Userguide Product Overview Thank you for purchasing a laser module from the Cameo range. This emits a red/IR spot or projection. Two models are available, either a CW version (1250) or the Gated version (1260). The Gated version incorporates a TTL modulatable input capable of 100Khz. The Cameo range is a miniature laser module that has a threaded barrel for easy bulkhead mounting which also ensures good thermal contact between module and heat sink.
- Page 2 Product Operation A. CW Mode To operate the laser in CW mode connect the 2 way JST (see diagram A) to back of laser module. Lead 1250 CW Cameo Pin 1 Red Lead 3.3Vdc to +5 Vdc Pin 2 Black Lead 0 Vdc B: 1260 Gated Version Introduction...
- Page 3 1. Check the laser is in focus. 2. Remove contaminants with a compressed air duster. 3. Contact Global Laser or your local representative if you still have issues. Note: Handle optics with with care using powder-free latex or nitrile gloves. These prevent the transfer of oils and debris from hands to optics.
- Page 4 5. Adjust tilt angle and then tighten Allen screw B 6. Loosen 2 x M4 screws attaching swivel bracket to base 7. Adjust swivel angle and then tighten 2 x M4 screws remains with the user. Mounting the Acculase in the Pillow Block Bearing Mount (See Drawing E) 1.
- Page 5 Class 3B IR Laser Label Warranty & Repair If your product develops a fault within 12 months from the date of purchase Global Laser will repair / replace the product. If you wish to return a faulty product contact your local representative or Global...
- Page 6 Mechanical Dimensions A) Cameo Laser Module with S/C2/HG Lens 1.50 1.50 Focusing Key Slots 24.00 1.60 14.00 Focusing Key Slots 24.00 1.60 14.00 1.50 Focusing Key Slots 24.00 1.60 14.00 5.90 0.85 Locking Nut 5.90 0.85 Locking Nut 5.90 0.85 Locking Nut B) Cameo Laser Module with P Lens 28.60...
- Page 7 D) Swivel Mounting Clamp 12.70 22.00 SIDE VIEW FRONT VIEW M12 x 1P Through Insert M3 x 6 5.00 40.00 40.00 50.00 25.00 20.00 20.00 4 Holes 4.50 Diameter 10.00 10.00 5.00 MOUNTING MOUNTING BASE BASE SIDE 2 Slots Ø9.00 2 Holes Ø3.50 and 8.00 3.50...
- Page 8 Notes T: +44 (0)1495 212213 F:+44 (0)1495 214004 E: sales@globallasertech.com www.globallasertech.com Global Laser Ltd Units 9-10 Manufacturing Roseheyworth Business Park Operations Certified to ISO9001 Abertillery. Gwent NP13 1SP UK 9090-02-031 Rev 4 19/01/2021...
